1.4.2.3 Connectors

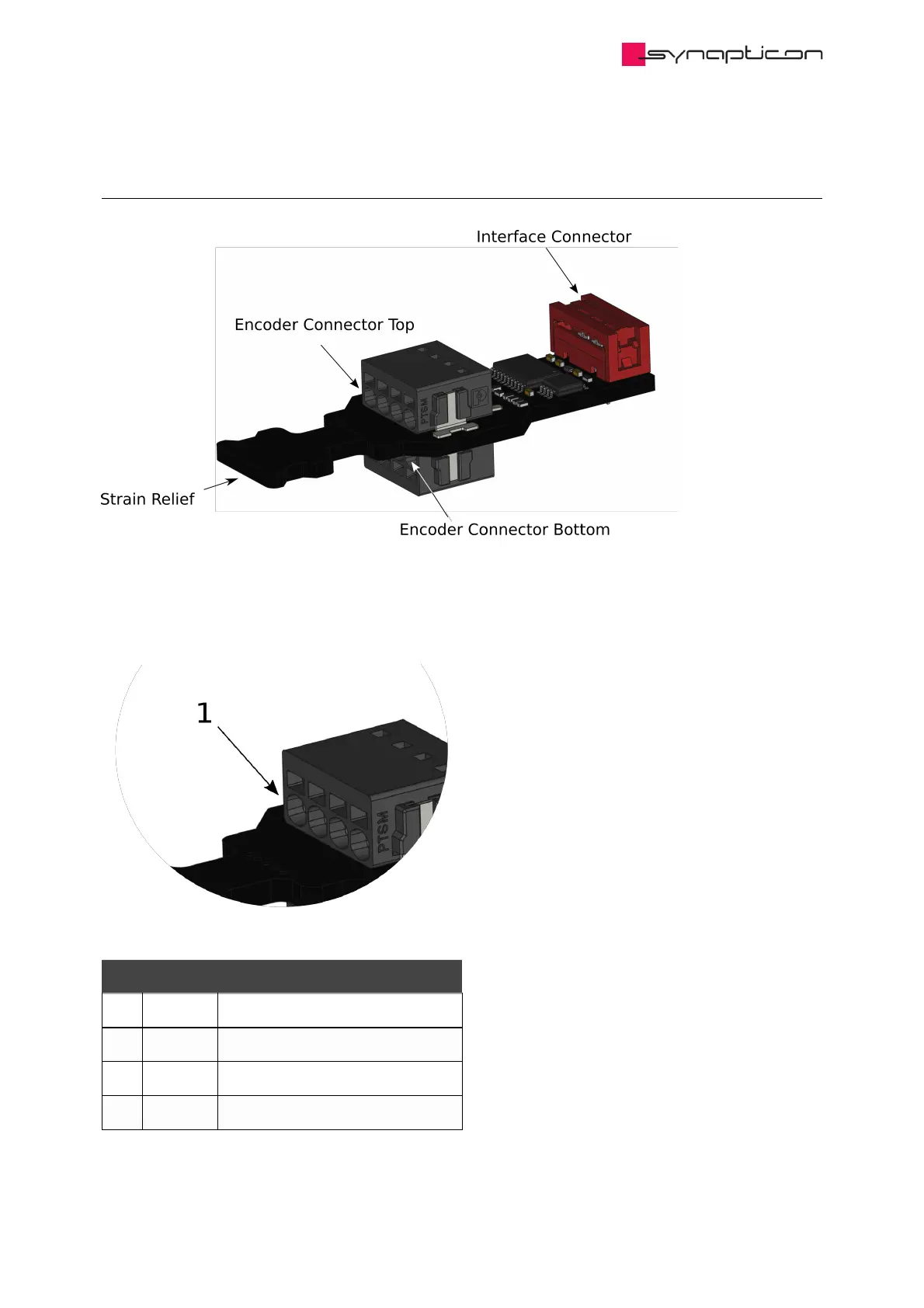

1.4.2.3.1 Encoder Connector Top

Pin Signal Direction / Comment

1 5 V* Output max. 100 mA

2 SIN + Input

3 COS + Input

4 ZERO + Input

* If used with SOMANET Node, this 5 V supply that can provide up to 100 mA for external use.
