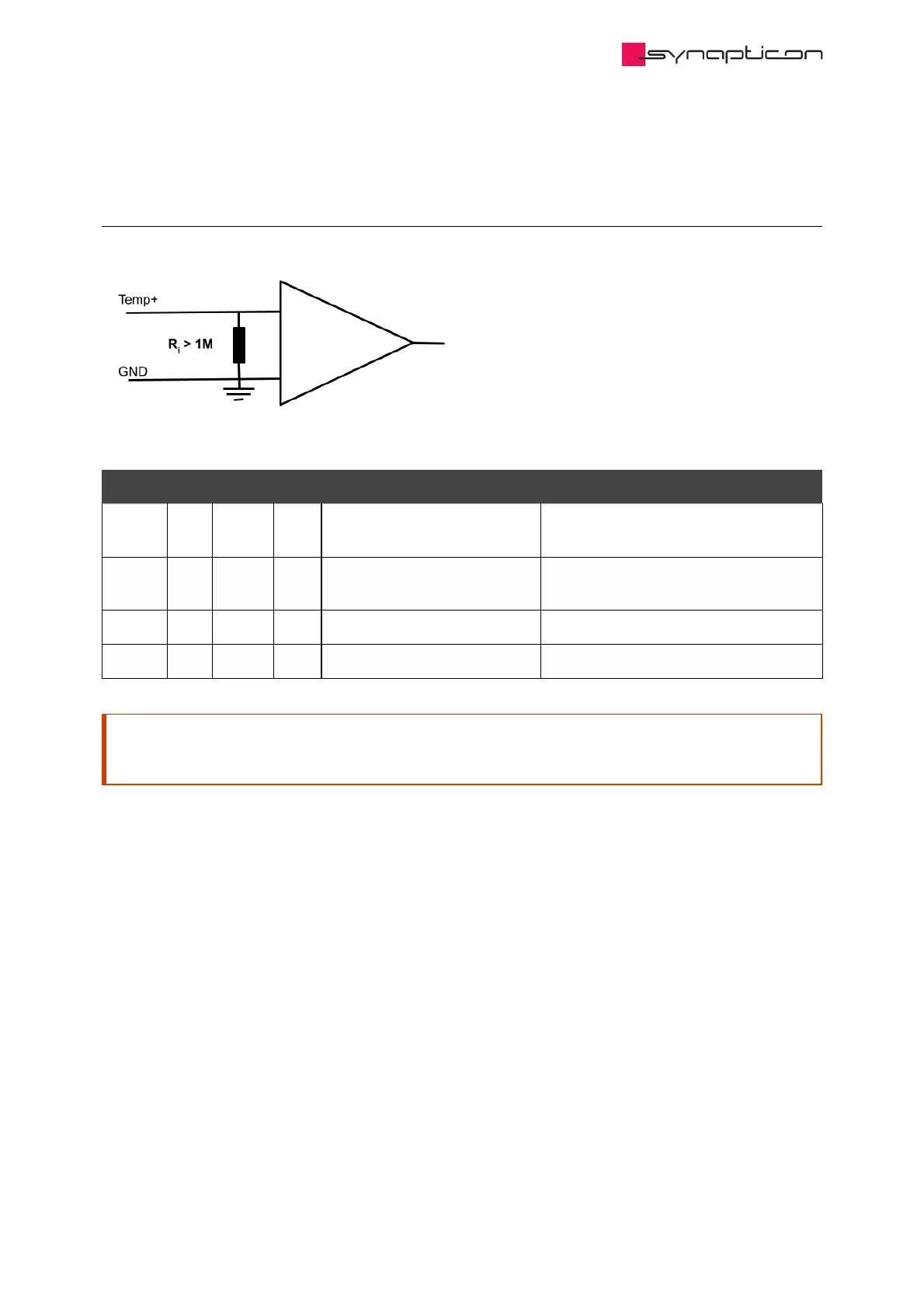

1.2.3.1.4.1 Specification for the single-ended temperature sensor
input
Symbol Min. typical Max. Description Impact
V 0V +5V The input voltage between the
input and GND.
Any voltage out of this range causes
saturation to the min/max ADC value.
V 0V +5V The tolerable input voltage
between the input and GND.
Any voltage out of this range damages
the analog input’s circuitry.
R >1MΩ Internal input resistance
Error -1% +1% Error in ticks
Attention
The temperature sensor input should only be used for measuring temperatures with RTD.
in
in,lim
i
