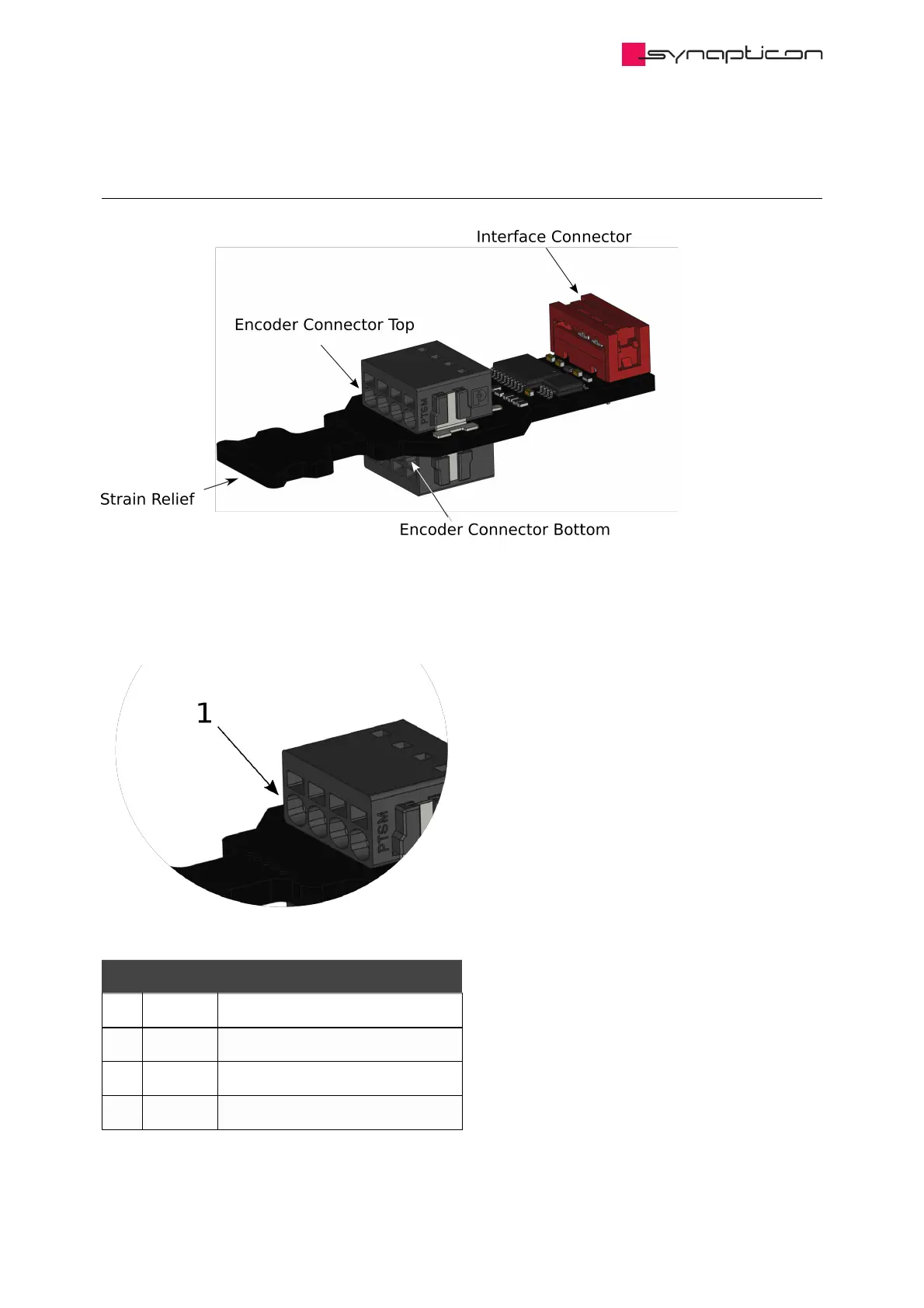

1.4.4.3 Connectors

1.4.4.3.1 Encoder Connector Top

Pin Signal Direction / Comment

1 5 V* Output max. 100 mA

2 A+ Input

3 B+ Input

4 I+ Input

* If used with SOMANET Node, this 5 V supply that can provide up to 100 mA for external use.
