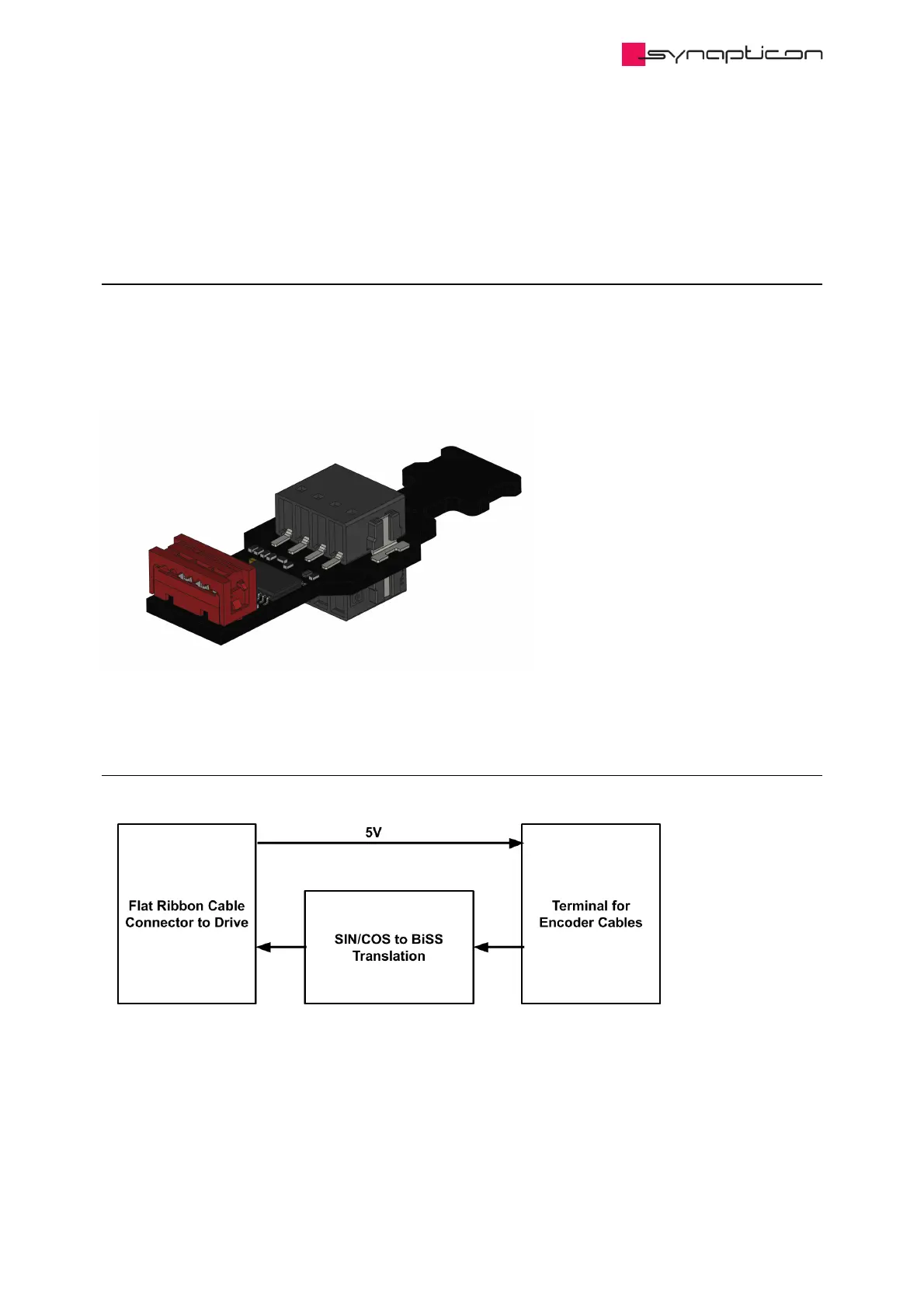

1.4.2 Sin/Cos Encoder Cable Adapter
1.4.2.1 Overview
The Sin/Cos Encoder Cable Adapter is an interface board which can be used to convert Sin/Cos encoder signals
to BiSS Protocol.
This feature can be used by any board that supports BiSS, for example SOMANET Node rev. D.4/E.1 or
SOMANET Circulo.
1.4.2.2 Block Diagram
