1.2.3.1.6.2 Pinout of the connectors

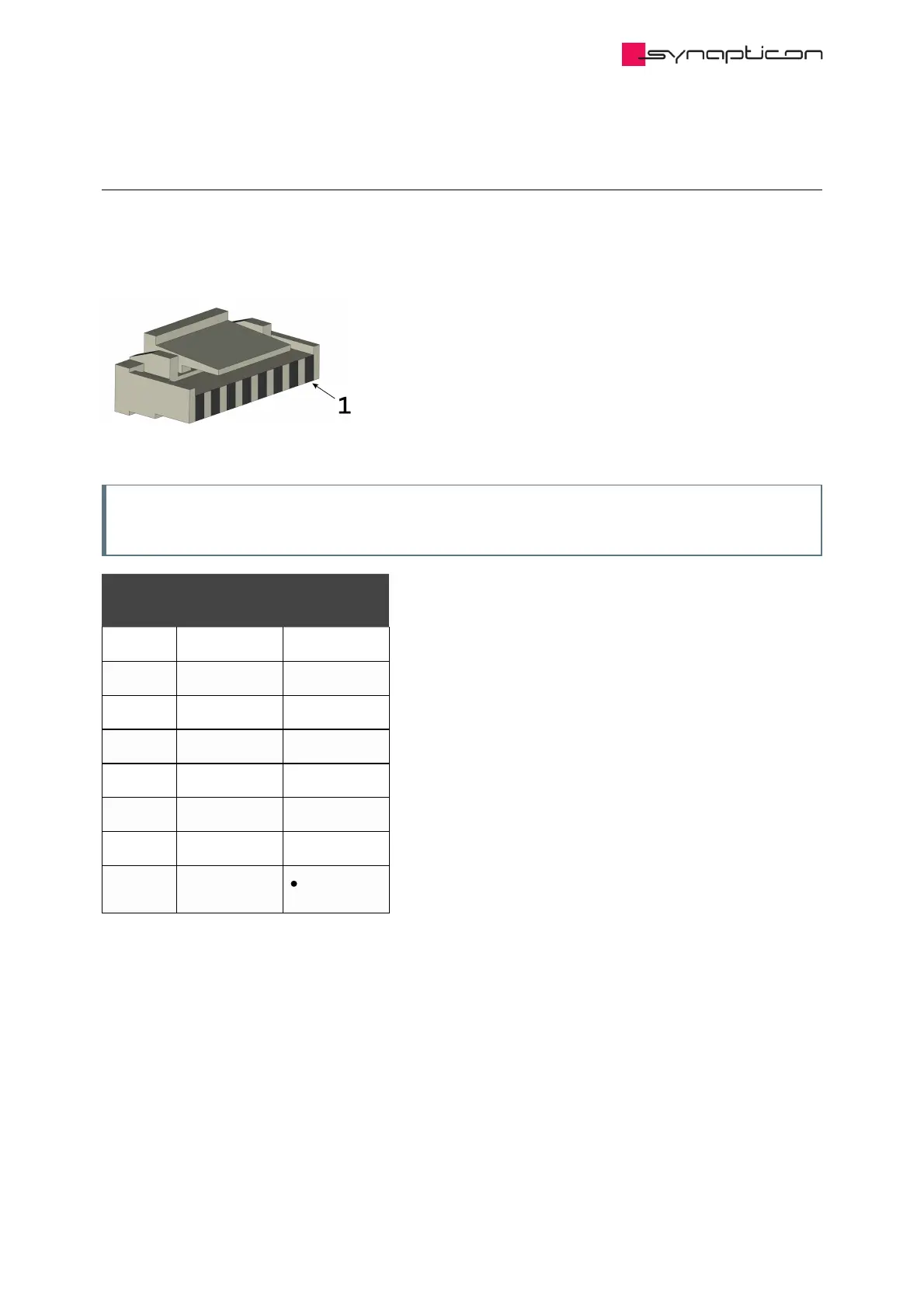

1.2.3.1.6.2.1 Hybrid connector (JST GHR-08V-S)

Note

This connector is on the drive side of the Y-Splitter cable and on both sides of the Drive-to-Drive cable.

Pin/Wire

#

Function Color

1 STO-SBC1 Red

2 STO-SBC2 Black

3 Safety GND White

4 RX_N Green

5 RX_P Green/White

6 TX_N Orange

7 TX_P Orange/White

8 PE
