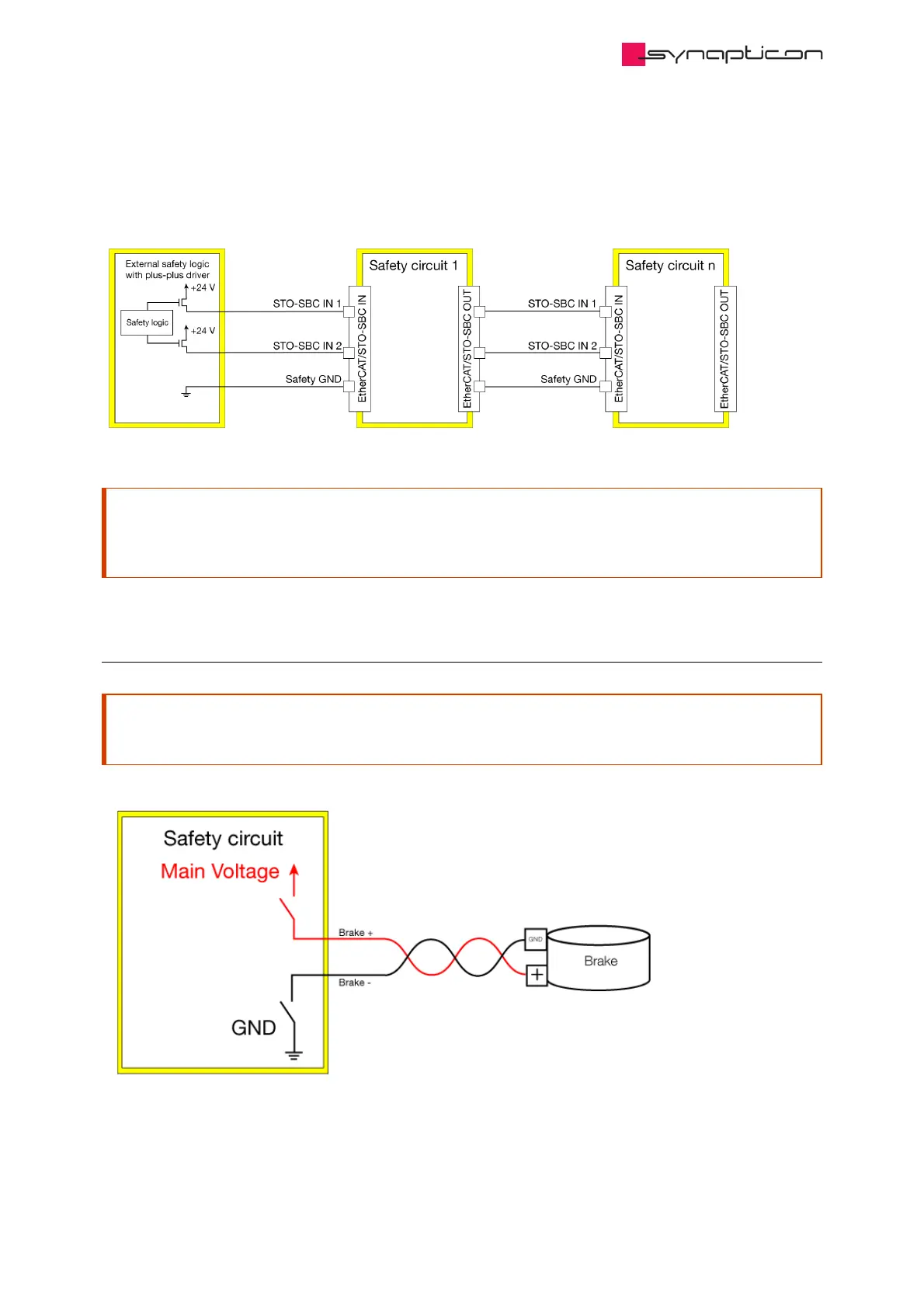

1.2.6.4.3.2.3 Safety PLC PP (Plus-Plus output) + drives

Allows safety functions up to SIL 3, PL e, cat.3.

Attention

In case of multiple drive connection, ensure that the output driver has sufficient current driving

capability.

1.2.6.4.3.3 Connection diagram for the brake

Attention

When using a safe brake ensure to connect the safe brake GND to Brake- instead of a general GND

Now you are ready to use the feature:
