3.1.9.1.40 0x2002 Position control strategy

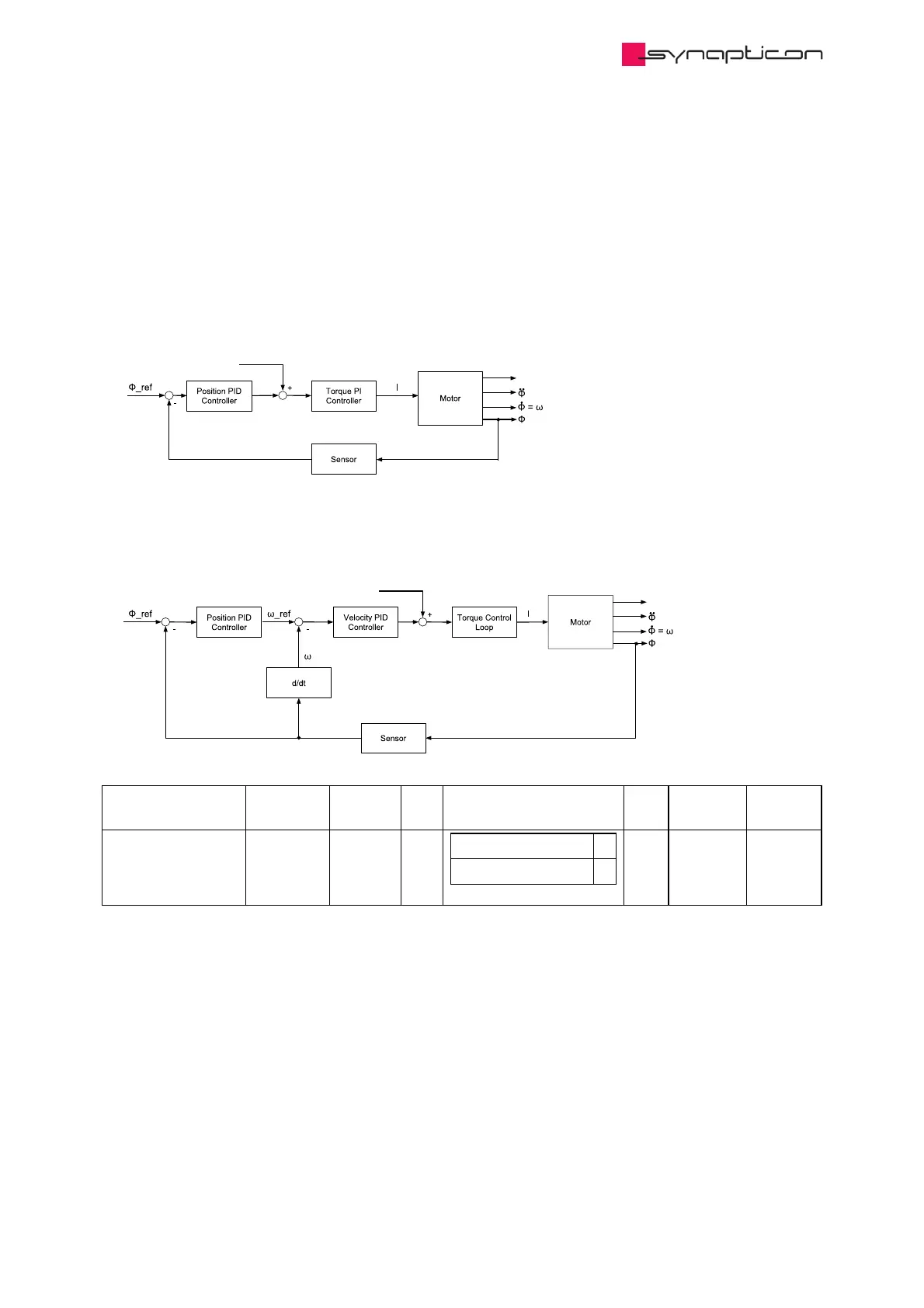

3.1.9.1.40.1 Selects the control structure used for position control:
1. Simple PID (A position PID controller directly generating the reference value for the torque controller.)
τ_offset
τ_ref
τ
2. Cascaded PID (A position PID controller that generates the reference value for an underlying velocity
controller - while that velocity controller generates the reference value for the torque controller)
τ_offset
τ_ref
τ
Name Index:Sub Type Bit
Size
Options Unit Access PDO
Mapping
Position control
strategy
0x2002:0 UINT 16
Simple PID 1
Cascaded PID 2
readwrite
Synapticon Documentation
© 2021 Synapticon GmbH | Daimlerstraße 26 | D-71101 Schönaich Documentation v 4.11.0 | Built 2021-07-23 613/887
