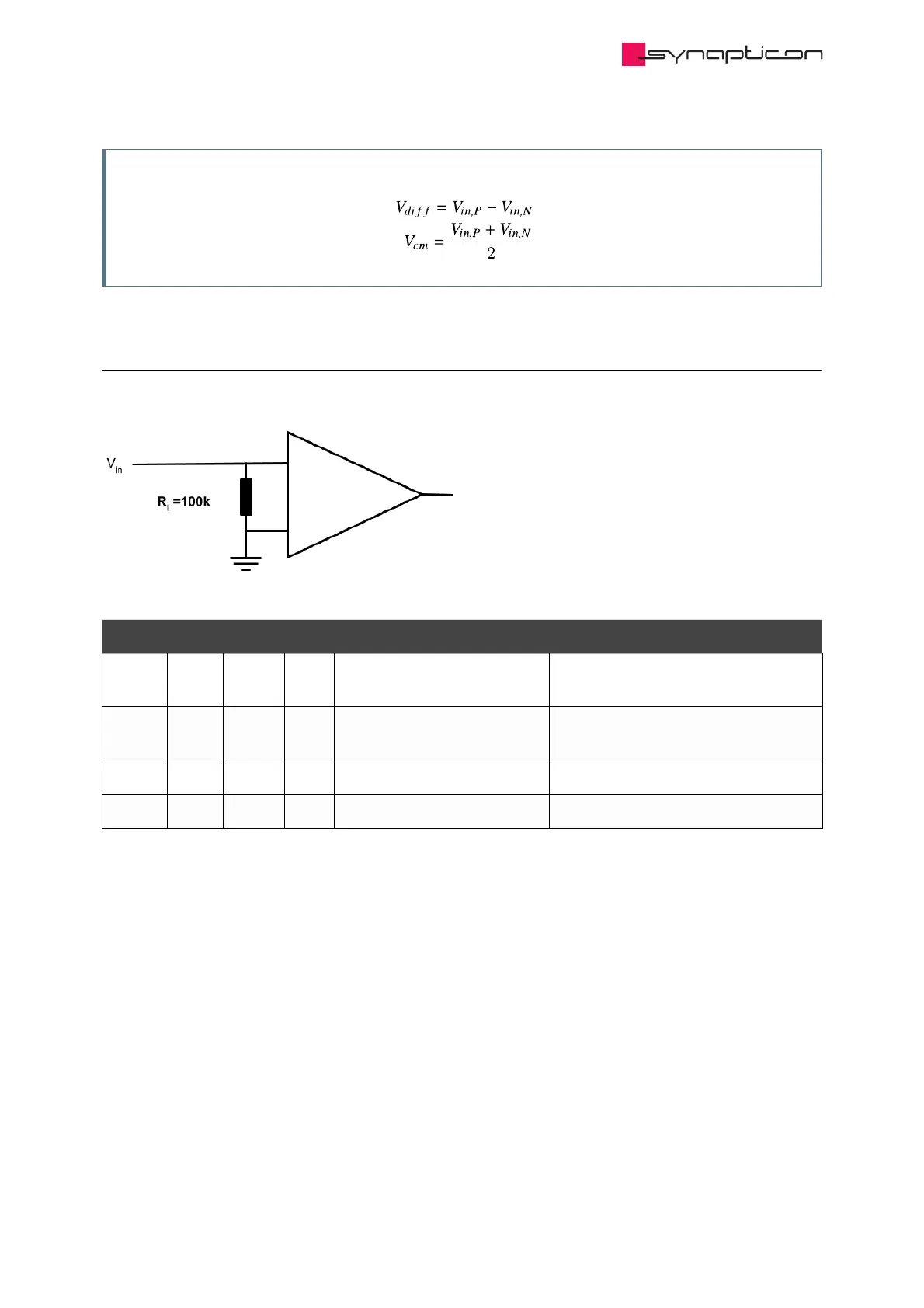

1.2.3.1.3.2 Single-ended

Symbol Min. typical Max. Description Impact

V 0V +5V The input voltage between the

input and GND.

Any voltage out of this range causes

saturation to min/max ADC value.

V -0.5V +6V The tolerable input voltage

between the input and GND.

Any voltage out of this range damages

the analog input’s circuitry.

R 100kΩ Internal input resistance

Error -1% +1% Error in ticks

in

in,lim

i
