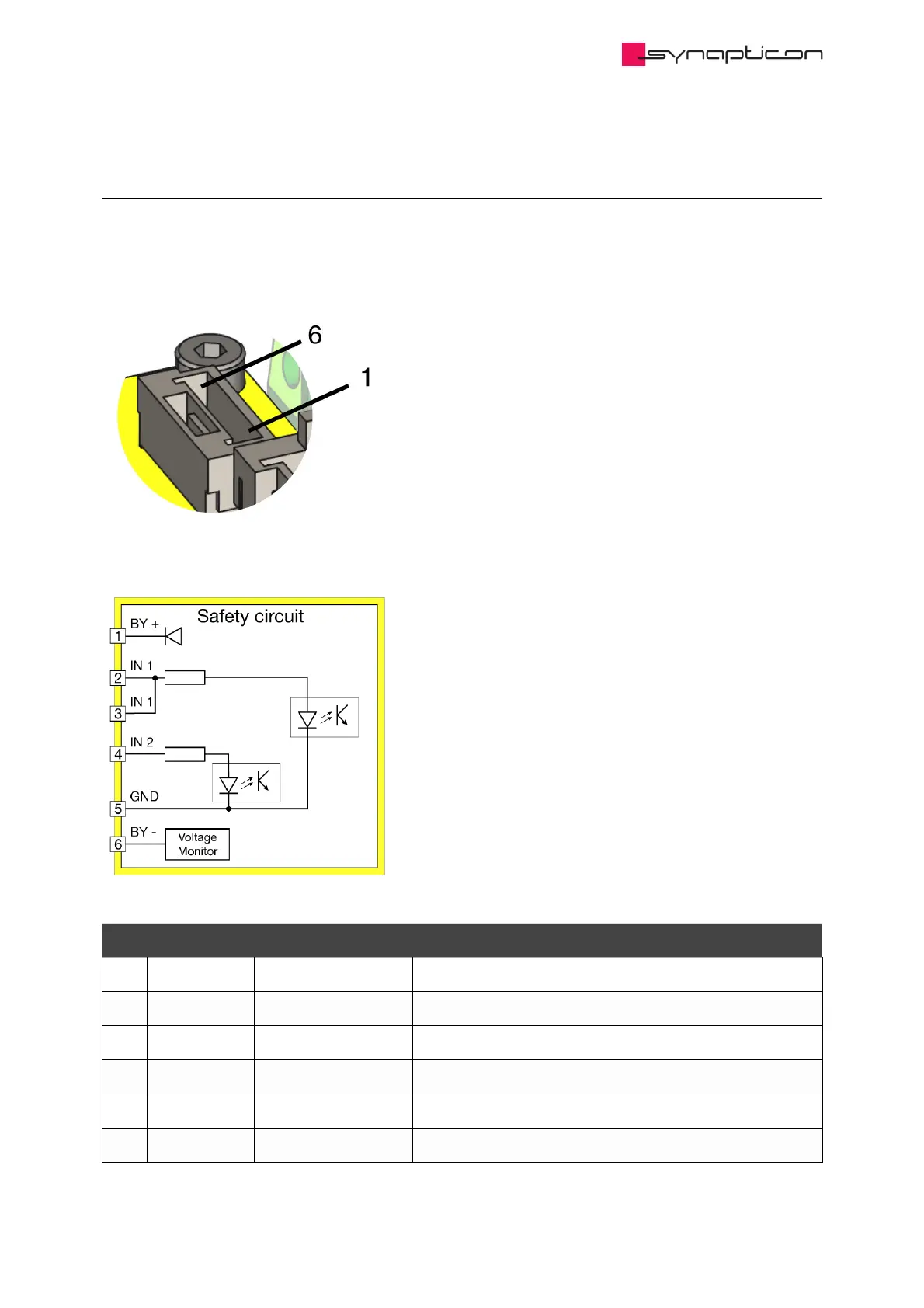

1.3.2.6.3.1 Connecting the STO/SBC inputs

1.3.2.6.3.1.1 STO/SBC input port

Pin# Designation Function Description

1 BY+ Bypass+ Connect to BY- (Pin 6) to bypass STO/SBC

2 IN1 STO/SBC input 1 Input 1 for STO/SBC

3 IN1 STO/SBC input 1 Extra Pin for Input 1

4 IN2 STO/SBC input 2 Input 2 for STO/SBC

5 GND Safety GND Must be isolated from main Ground

6 BY- Bypass- Connect to BY+ (Pin 1) to bypass STO/SBC
