The supply is protected against short to ground and keeps the current below 400 mA in a continuous short.

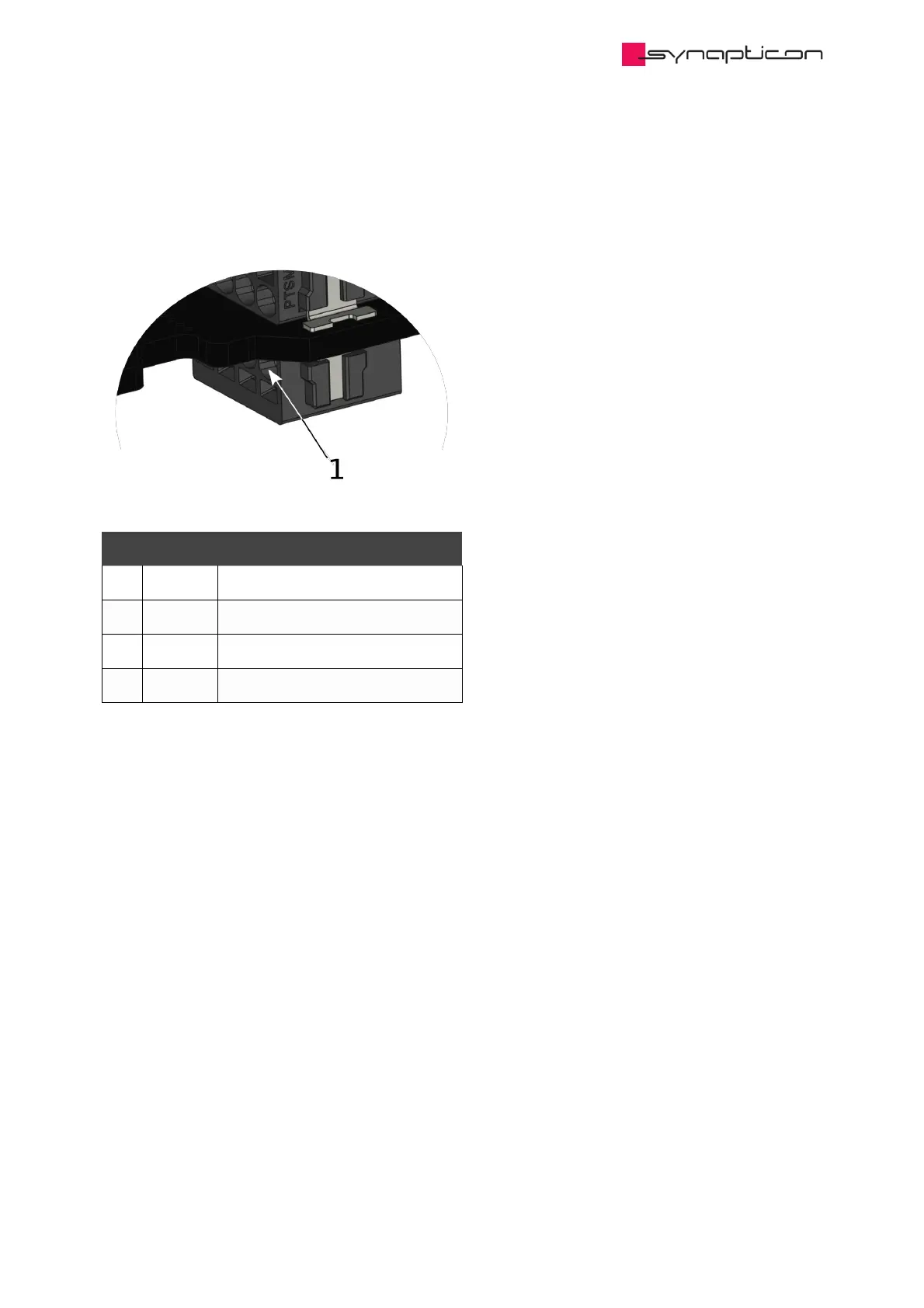

1.4.4.3.2 Encoder Connector Bottom

Pin Signal Direction / Comment

1 I- Input

2 B- Input

3 A- Input

4 0V 5 V return

1.4.4.3.3 Interface Connector

The interface connector comes with a cable which will be connected to the encoder port that features BiSS.

For connecting, please use a flat ribbon cable with 1.27mm pitch.

Synapticon Documentation
