1.2.3.1.6.2.2 STO/SBC Connections
Wire # Function Color
1 STO-SBC1 Red
2 STO-SBC2 Black
3 Safety GND White
Note
On the Y-Splitter cable these wires are open strands at the master side.

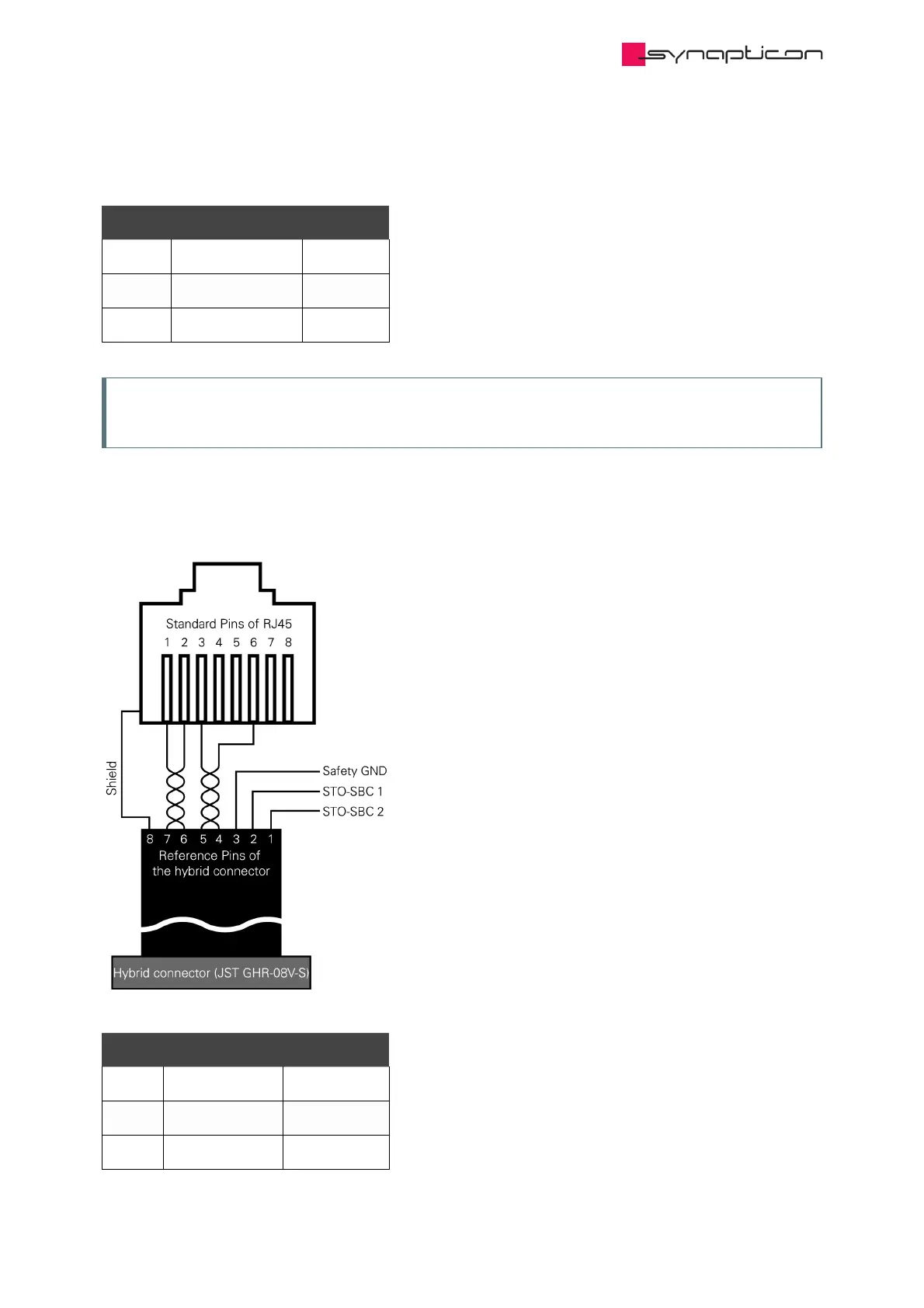

1.2.3.1.6.2.3 EtherCAT Connection
Pin # Function Color
1 TX_P Orange/White
2 TX_N Orange
3 RX_P Green/White
