SYNAPTICON CIRCULO 7 User Manual

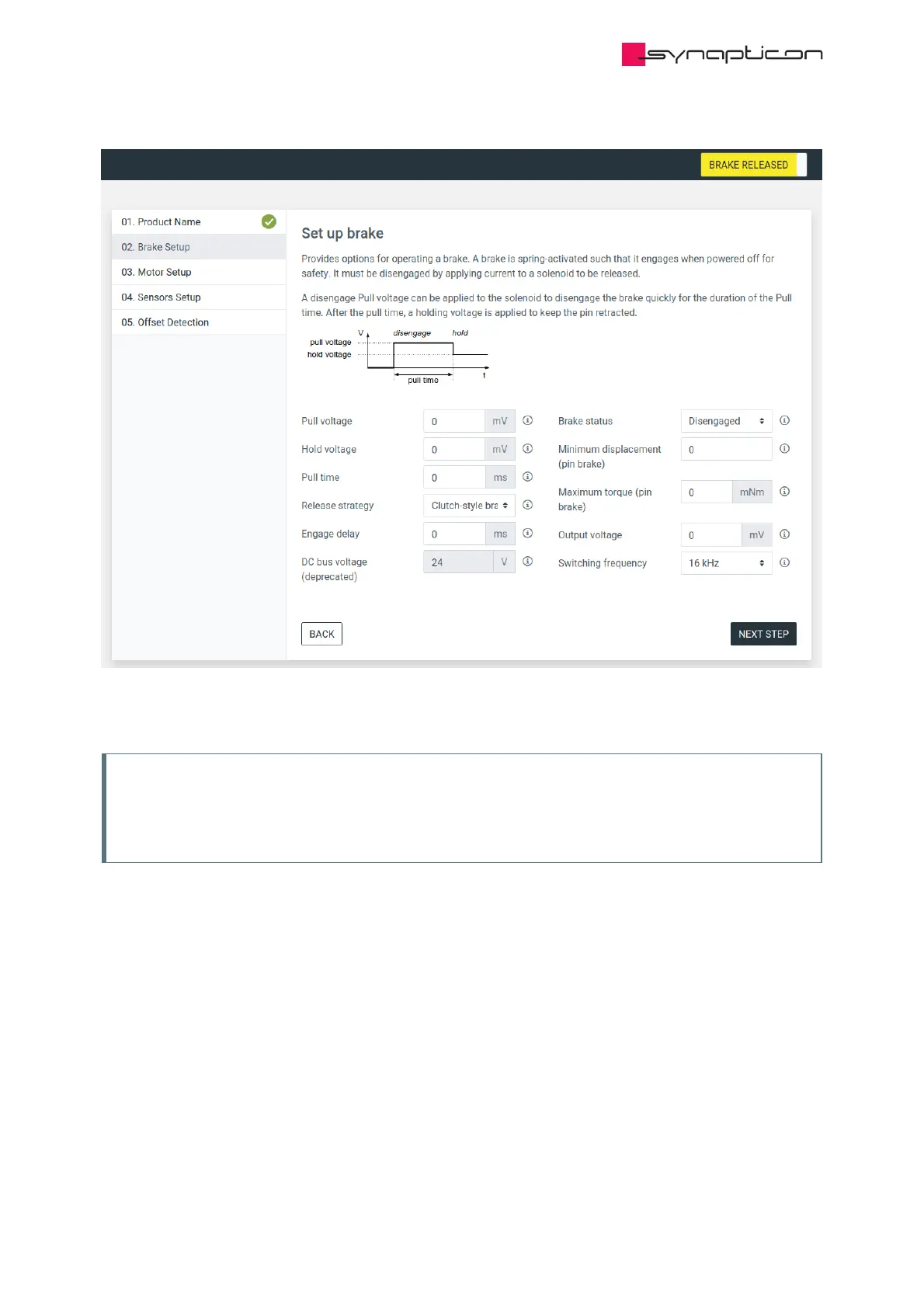

The release-strategy will be set to clutch-style brake by default.
Note
When you click the button to release the brake, it will apply a pull voltage to the brake but it will not
perform the behavior for shaking free as described in the brake release feature. So if you have a pin-style
brake, please ensure that no heavy load is attached to the motor.
After clicking on “Next” you will be asked for details of the connected motor.
Synapticon Documentation
© 2021 Synapticon GmbH | Daimlerstraße 26 | D-71101 Schönaich Documentation v 4.11.0 | Built 2021-07-23 335/887
