1 5 V *
2 MA- Clock-
3 MA+ Clock+
4 Ground
5 SLO- Data-
6 SLO+ Data+
7 V_BAT
* The current capacity of 5 V output is shared between all connectors and the total consumption is limited to
250 mA.

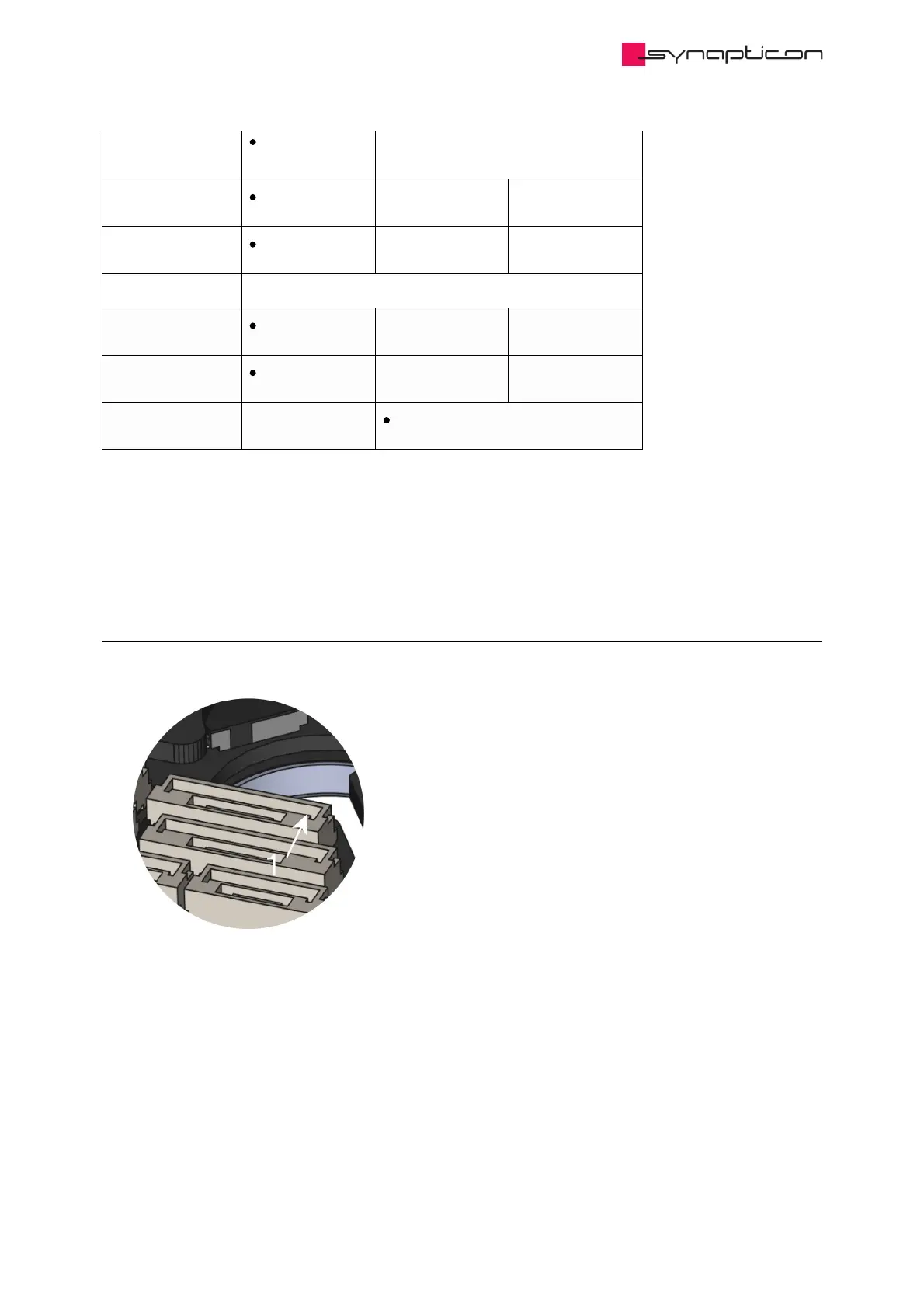

1.2.3.1.2.3.2 Encoder port 2
Circulo 7
