12-14 Sysmex XP-300
Cleaning and Maintenance
Revised July 2012
(12) Assemble the SRV in the reverse order to disassembly.
When assembling, make sure to install one each valve at a time.
(13) Mount the SRV tray to the original position and gently push up
the rinse cup to the top using both hands.
(14) Close the front cover of the main unit.
(15) Turn on the main unit and make sure that the blank error has not
occurred.
(16) Perform quality control and make sure that there is no
functional problem.
• Mount the rotary valve with the notch facing upward
and the metal knob coming between the stoppers.
• Confirm that the metal knob is between the stoppers.
If it is not, malfunction will occur.
Make sure, that the contact surfaces are wetted with
distilled water to ensure sealing.
• Mount the SRV tray properly as to its face/bottom
and the direction.
• Make sure the rinse cup is pushed all the way up with
the sample probe inserted in the hole. If the power is
turned on with the rinse cup staying lowered, [Rinse
motor error] will occur, making it impossible to
continue the operation.

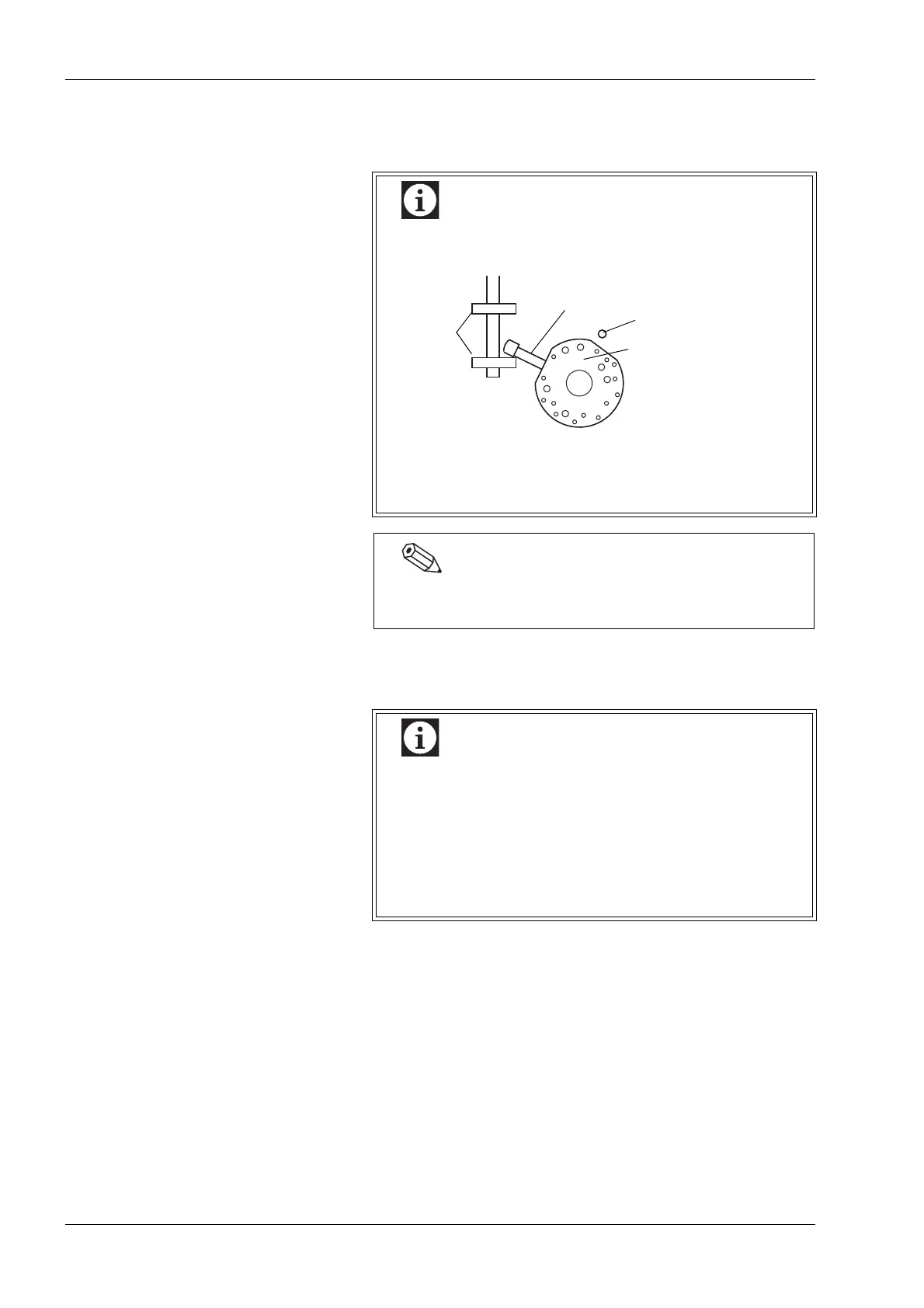

Stopper
(View of left side)
Metal knob
Guide pin for rotary valve
Groove
