SYSMEX XP Series - Page 48

5-10 Sysmex XP-300
Initial Operation
Revised July 2012

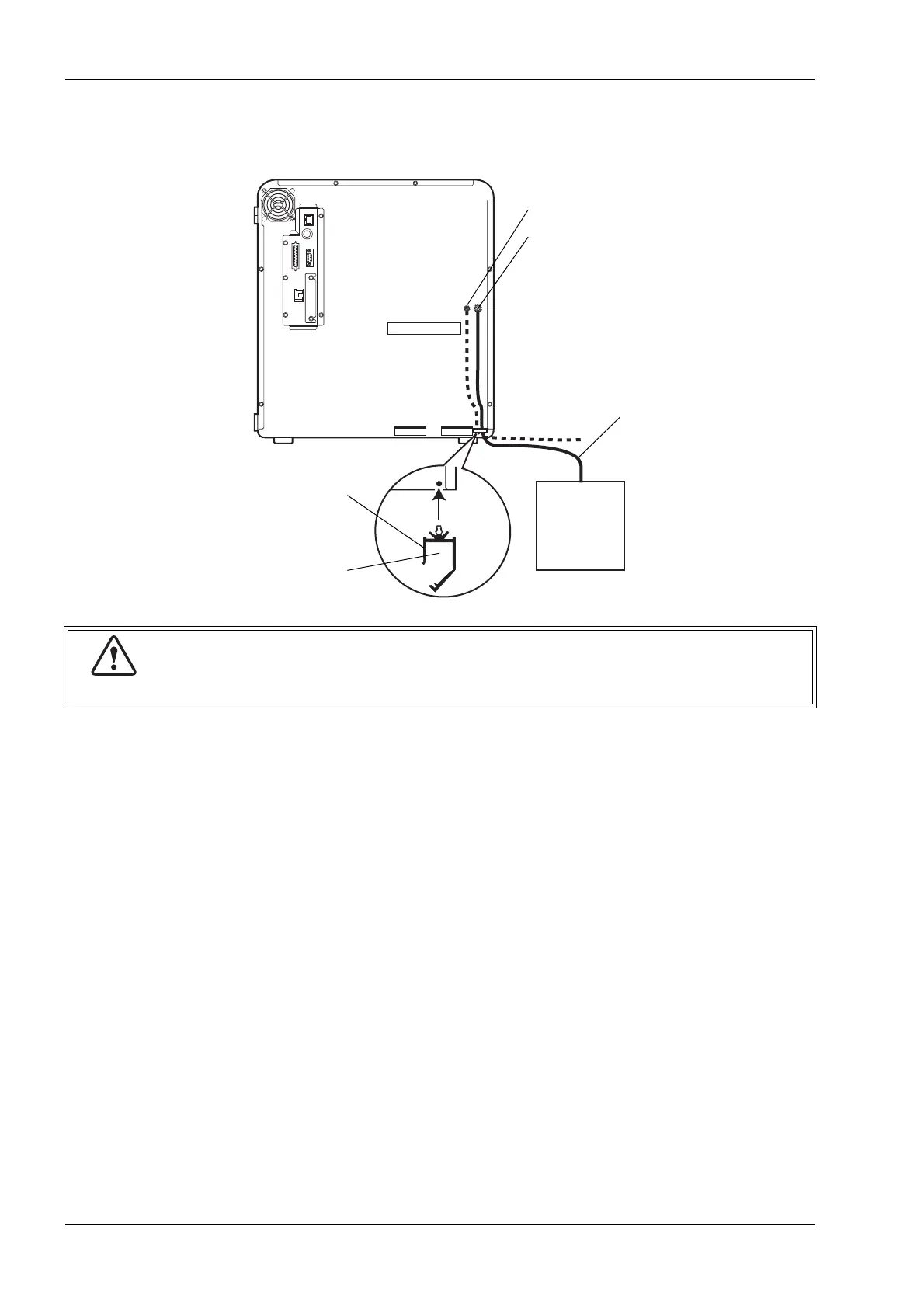

(3) Arrange and tie the diluent and waste line tubings as shown in the figure using the clamp
provided LWS-85-2.5W.
Tube polyurethane 6 mm ID × 9 mm OD
Clamp LWS-85-2.5W
CELLPACK inlet nipple
Waste
container
Drain outlet nipple
Pass the tubing through here.
Caution!
When bundling the tubings using the clamp, its sharp edges can cause injury. Use caution.
