Analyzing waveforms Set up 8B10B search paramete rs

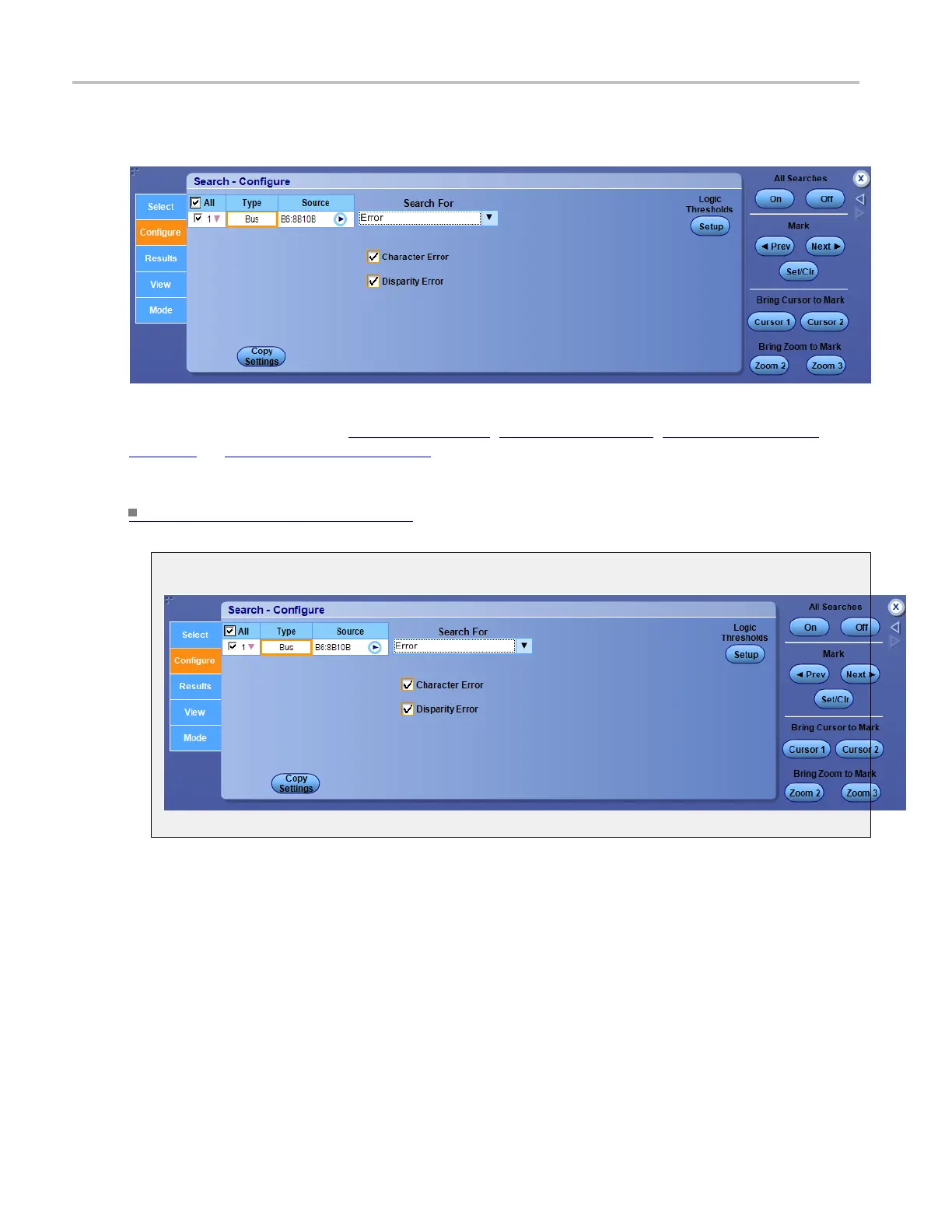

In this example, you need to the errors to search for. Optionally, you can also set the component threshold

levels through the Logic Thresholds Setup button.

Click the Search For selections Error (see page 318), Pattern (see page 319), Character/Symbol (see

page 319),orAny C haracter (see page 320) to view their parameters.

What do you want to do next?

Learn about bus setups. (see page 95)

Search for error

318 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
