Oscilloscope Reference Set the cursor position: XY display
Set the cursor position: XY display
From the Cursor menu, select Cursor Position.
Overview

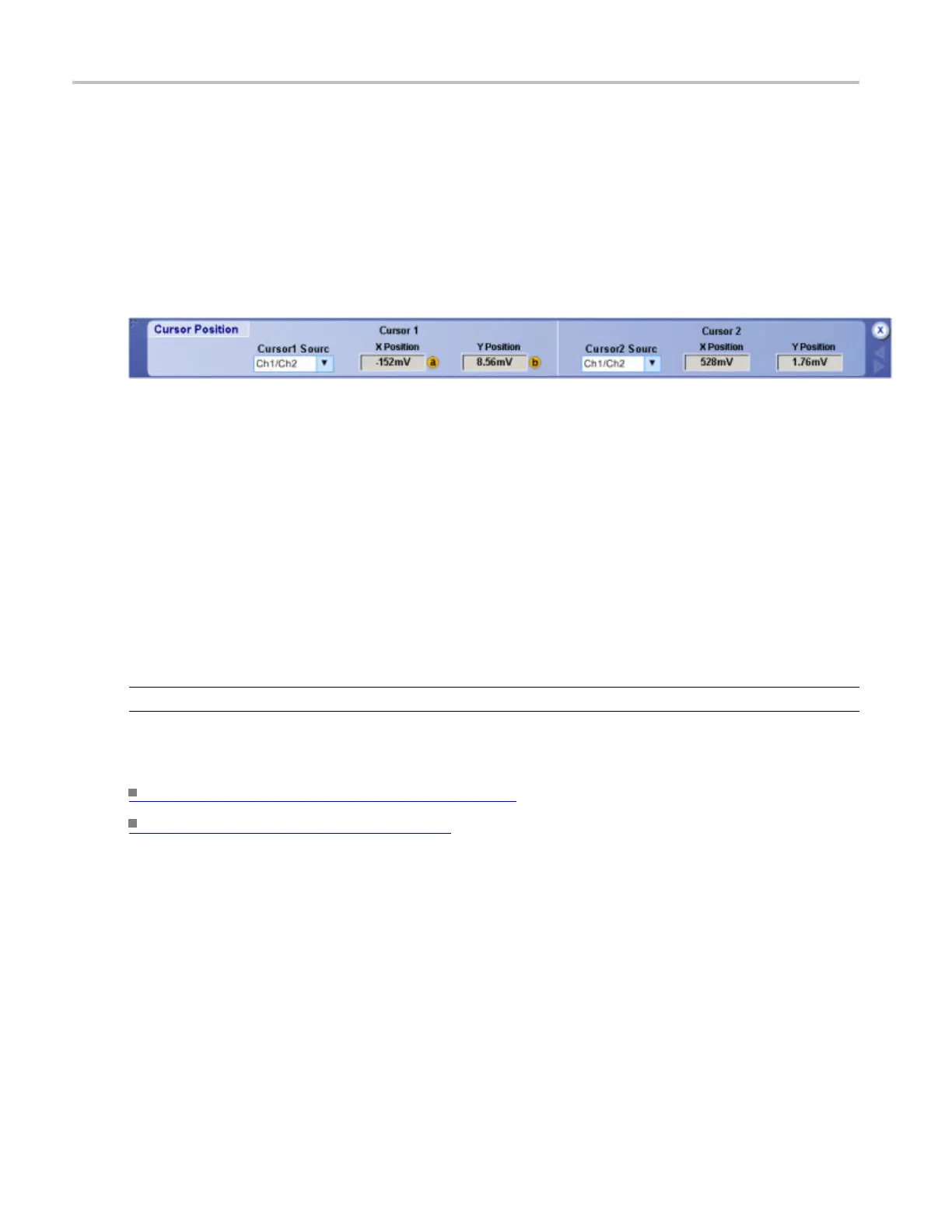

Use the Cursor Position control window to position the cursors with the multipurpose knobs.
To use
1. Click the Source drop-down list to select the measurement source for the cursor.
2. Click in
one of the cursor position entry boxes and use a multipurpose knob to enter the cursor position.
Behavior
The cursor units depend on the cursor type. The cursor position readouts appear on the display graticule.
When using the IRE graticule style, amplitude cursor readouts are shown in IRE units.
Cursor position does not change if the cursor source changes or if the waveform is repositioned.
TIP. Use the pop-up k eypad or your external keyboard to specify exact numerical cursor coordinates.
What do you want to do next?
Lea
rn about the Cursor Setup controls.
(see page 71)
Learn about the cursor types. (see page 78)
