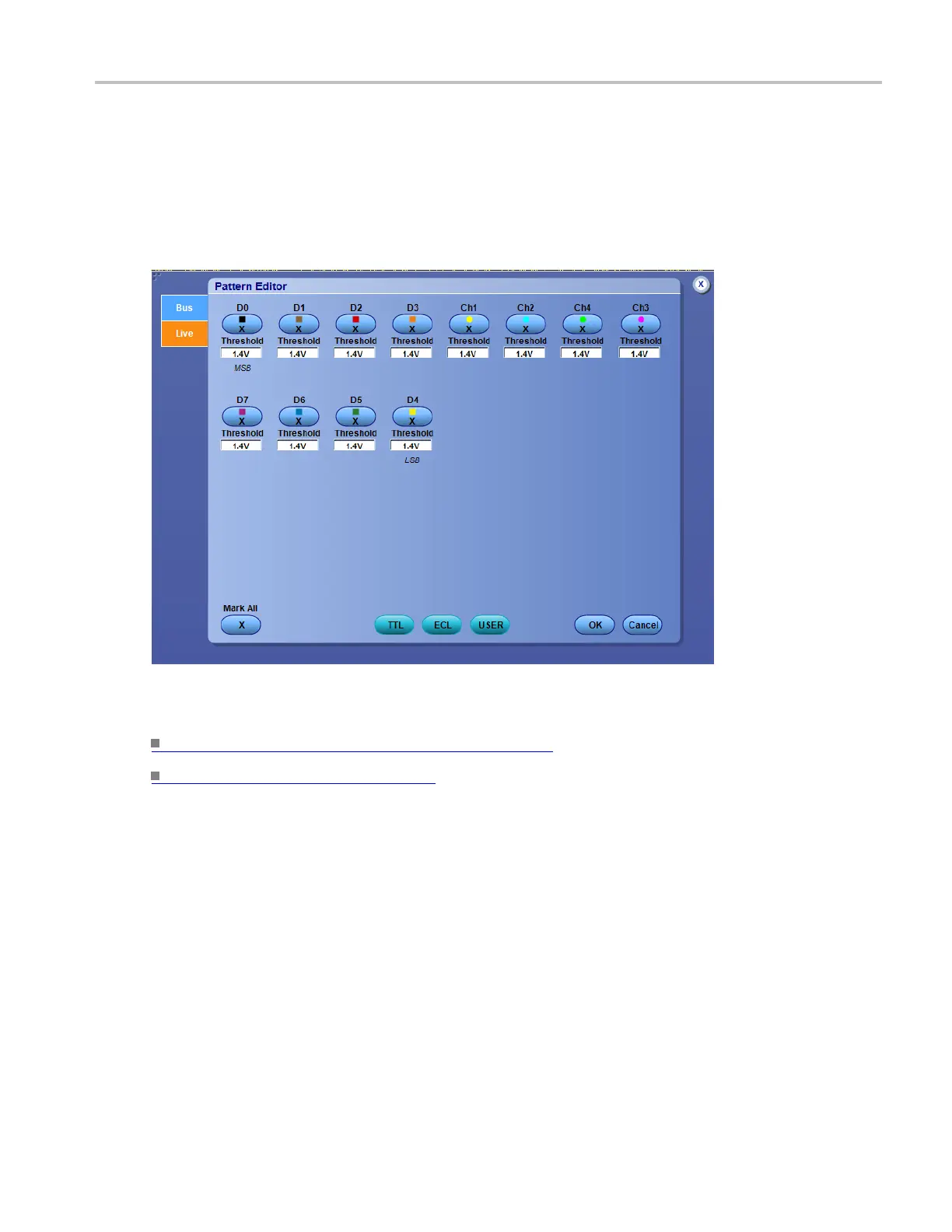

Oscilloscope Reference Bus Pattern Editor (Live tab)

Bus Pattern Editor (Live tab)

Use the controls to set the bus trigger pattern of the channels the instrument uses as logic waveforms to

detect a parallel or serial bus value. Click a channel button to select the value for that channel: 0, 1, or X.

For convenie

nce, you can also change the voltage reference level threshold values.

What d

o you want to do next?

Learn how to deﬁne a pattern for a bus. (see page 939)

Learn about bus setups. (see page 95)

DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 945
