5.2.3.3 System A

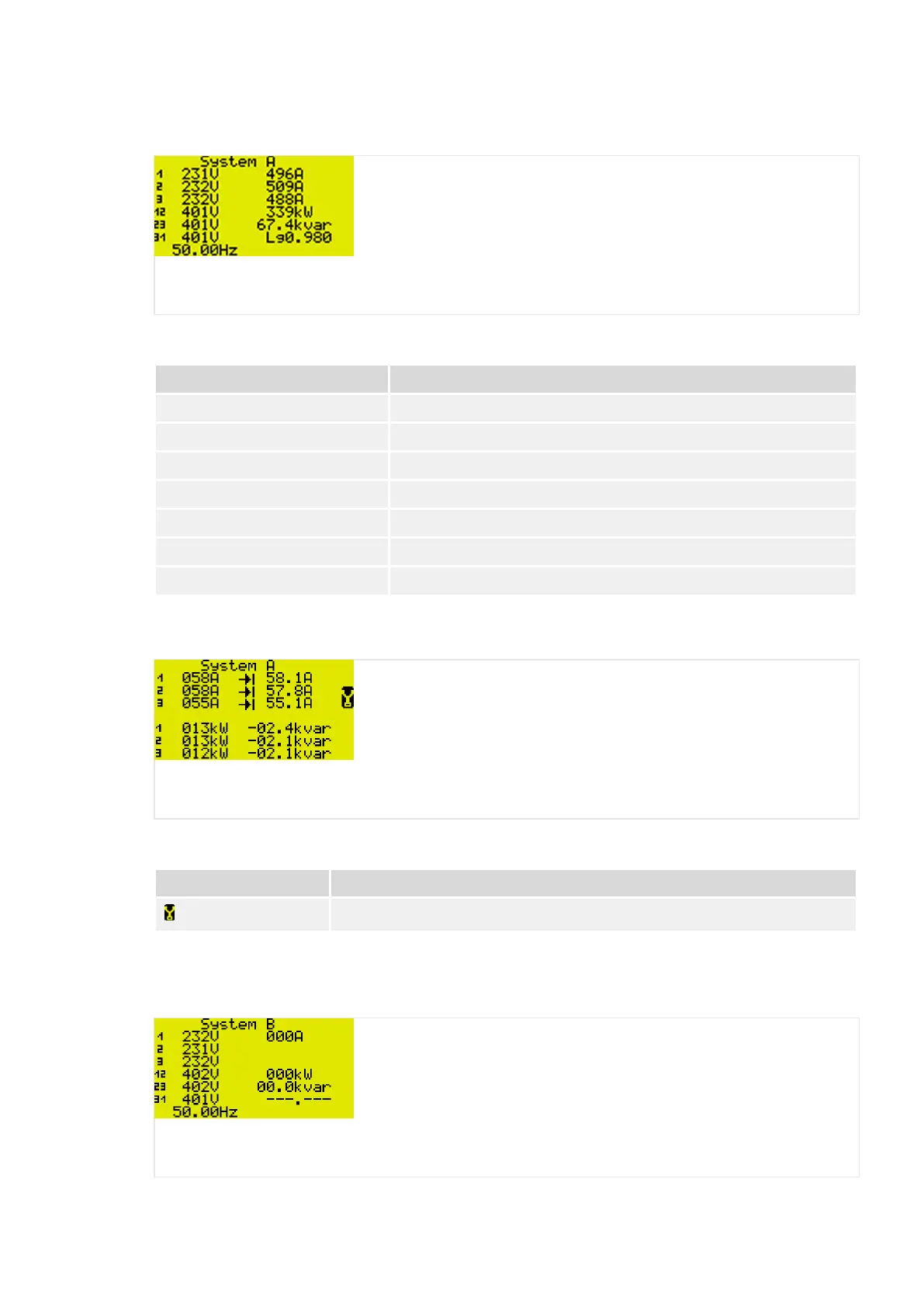

Fig. 112: Measured values system A screen (example)
Displays all measured AC values system A.
Unit Value
V Voltage
A Current
kW Active power
kvar Reactive power
Hz Frequency
Lg Lagging
Ld Leading
Tab. 31: Units of measured values
Fig. 113: Slave pointer system A screen (example)
Displays the measured and the maximum AC current system A.
Symbol/Button Description
Reset the maximum value display.
5.2.3.4 System B
Fig. 114: Measured values system B screen (example)
Displays all measured AC values system B.
