Programming example for the LogicsManager
Programming example for the LogicsManager

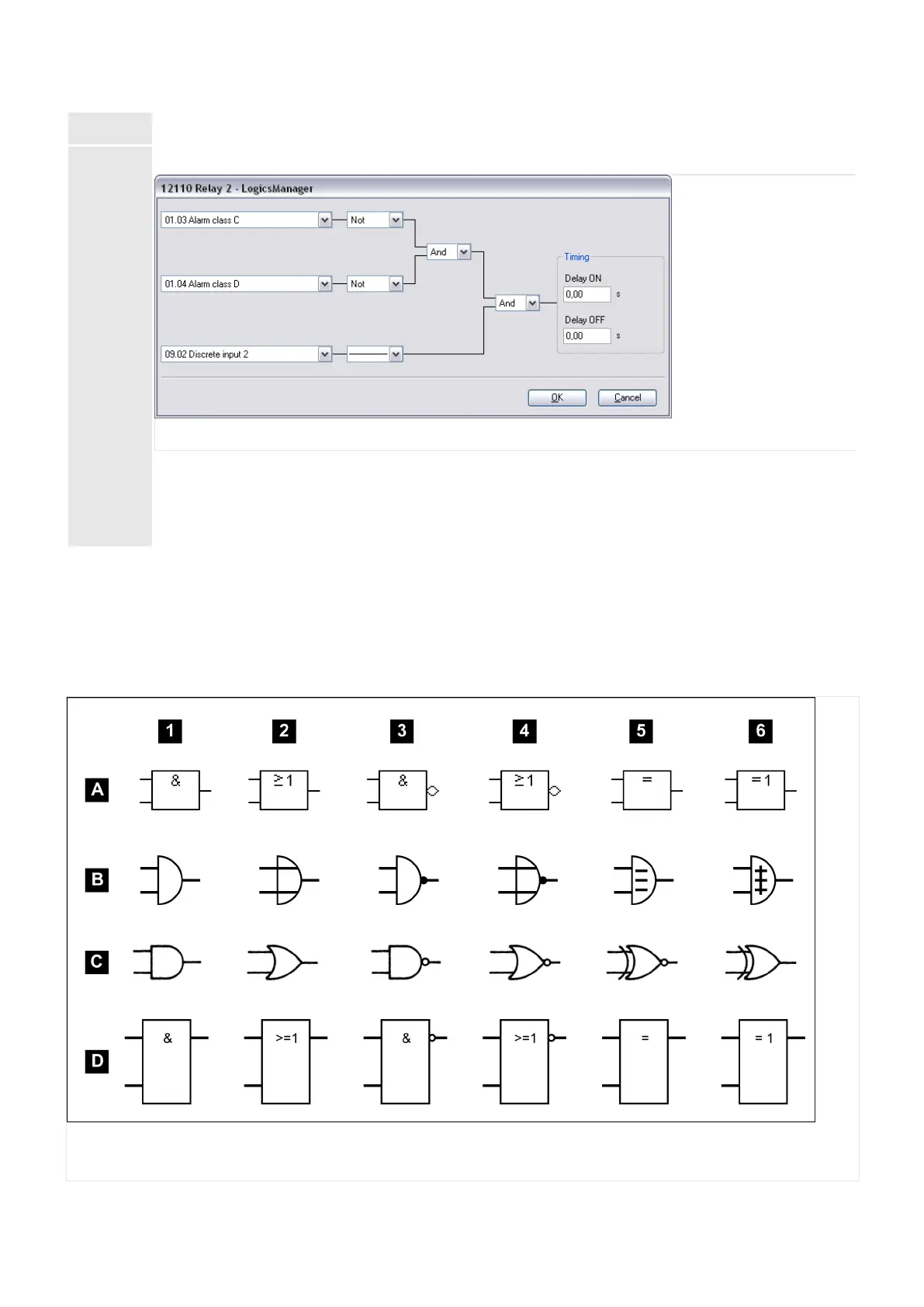

Fig. 178: Programming example (ToolKit)
• Relay [R2] shall energize, whenever "Discrete input [DI 02]" is energized "AND" the
control does "NOT" have a fault that is "Alarm class C" "AND" does "NOT" have a
fault that is "Alarm class D"
9.3.2
Logical Symbols
The following symbols are used for the graphical programming of the LogicsManager. The
LS-5 displays symbols according to the DIN 40 700 standard by default.
Fig. 179: Logical symbols
402 LS-5 v2 Series 37650
