Xerox WorkCentre 3220 Service Manual

WorkCentre 3210/3220 Multifunction Printer Service Manual 2-7
Theory of Operation

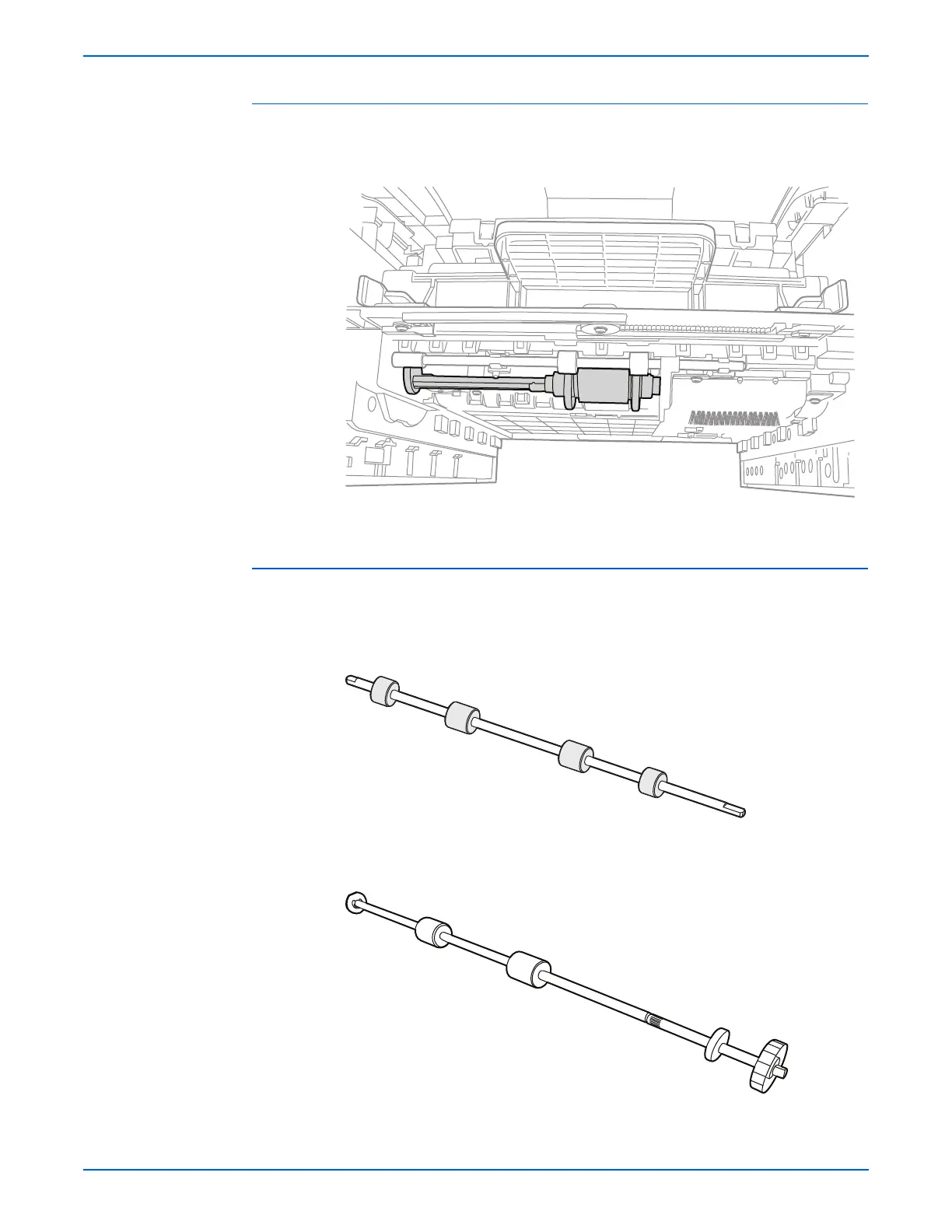

Pick Up Roller
The Pick Up Roller is used to pick up and feed paper into the printer and
remove static charge on the paper.
Feed Roller (Registration)
The Feed Roller arranges paper, transfers paper, detects paper, and removes
jam.
Feed Roller (top area of the printer)
Feed Roller (bottom area of the printer)
s3210mfp-013
s3210mfp-010
s3210mfp-080

Xerox WorkCentre 3220 Specifications

General

Print Technology	Laser
Print Resolution	Up to 600 x 600 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 4800 x 4800 dpi (enhanced)
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
Memory	64 MB
Duplex Printing	Manual
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Maximum Paper Size	8.5 x 14 in (Legal)
