5.2 b: Application
Parameter Details
5
YASKAWA ELECTRIC SIEP C710616 35D YASKAWA AC Drive E1000 Technical Manual 157
11: Mtr (Meters)
12: Ft (Feet)
13: LPN (Liters/min)
14: CMM (Cubic M/min)

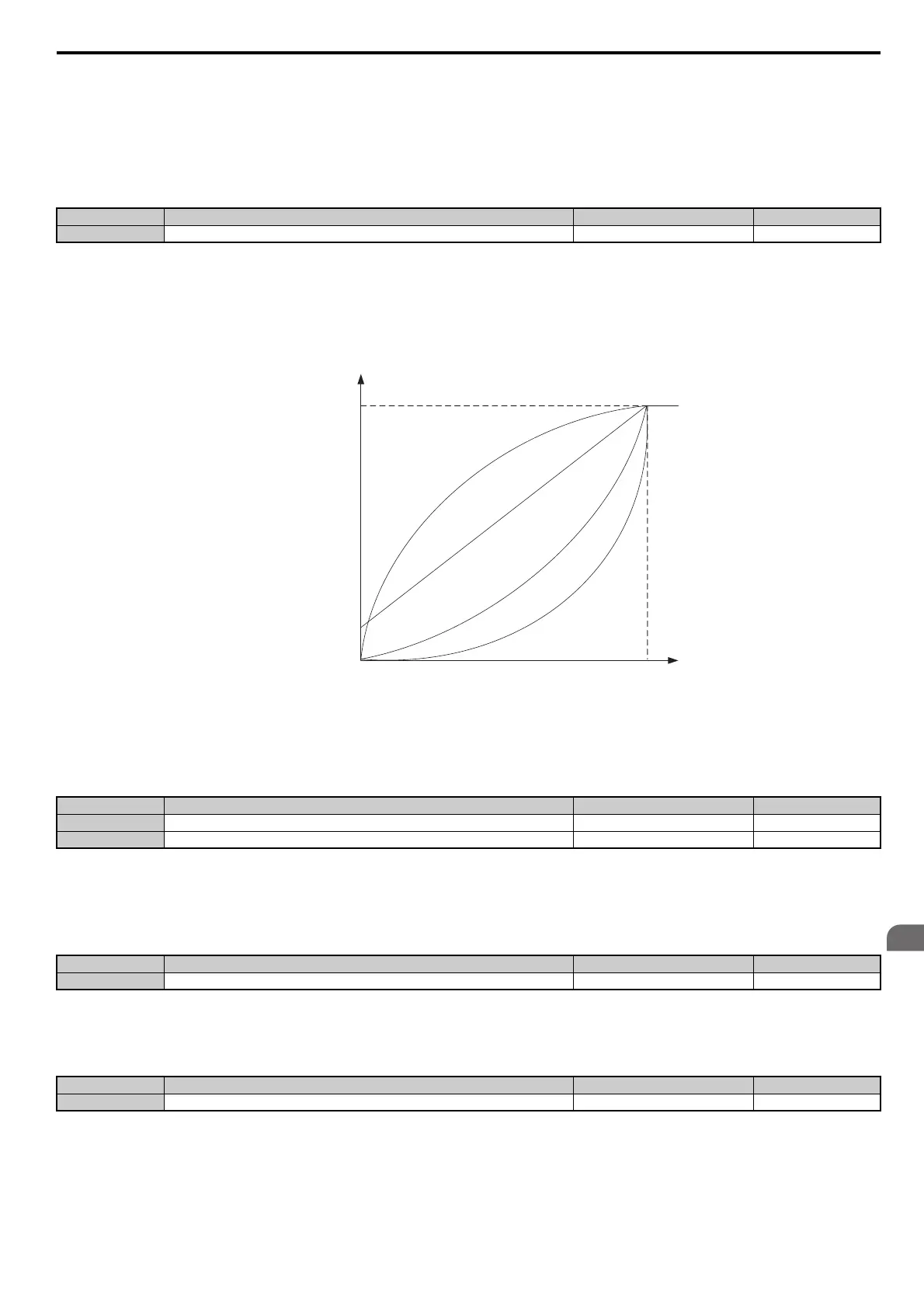

■ b5-42: PI Output Monitor Calculation Method
0: Linear unit
1: Square root unit
2: Quadratic unit
3: Cubic unit
■ b5-43/b5-44: Custom PI Output Monitor Setting 1/2
U5-14 and U5-15 show Custom PI output. U5-14 shows the upper 4 digits and U5-15 shows the lower 4 digits.
It shows 999999.99 maximum. b5-43 and b5-44 is used for setting maximum monitor value at maximum frequency.
■
b5-45: Custom PI Output Monitor Setting 3
b5-14 shows Custom PI Output. b5-45 is used for setting the minimum display value at 0 speed. This function is effective
when b5-42 is set to 0 (Linear unit).
■
b5-46: PI Setpoint Monitor Unit Selection
Sets the Operator display units in U5-01 and U5-04 when b5-20 = 3.
0: WC (Inch of Water)
1: PSI (ib/Sq inch)
2: GPM (Gallons/min)
3: F (Deg Fahrenheit)
No. Name Setting Range Default
b5-42 PI Output Monitor Calculation Method 0 to 3 0
No. Name Setting Range Default
b5-43 Custom PI Output Monitor Setting 1 0 to 9999 0
b5-44 Custom PI Output Monitor Setting 2 0.00 to 99.99 0.00
No. Name Setting Range Default
b5-45 Custom PI output monitor setting 3 0.0 to 999.9 0.0
No. Name Setting Range Default
b5-46 PI Setpoint Value Monitor Unit Selection 0 to 14 0
0:Linear
2:Quadratic
U5-07
U5-08
b5-45 (ZZZ.Z)
F
m
ax0
PI Output
b5-42
1:Square root
3:Cubic
XXXXYY.YY
b5-43: upper 4 digits (XXXX)
b5-44: lower 4 digits (YYYY)
