5.7 H: Terminal Functions
192 YASKAWA ELECTRIC SIEP C710616 35D YASKAWA AC Drive E1000 Technical Manual

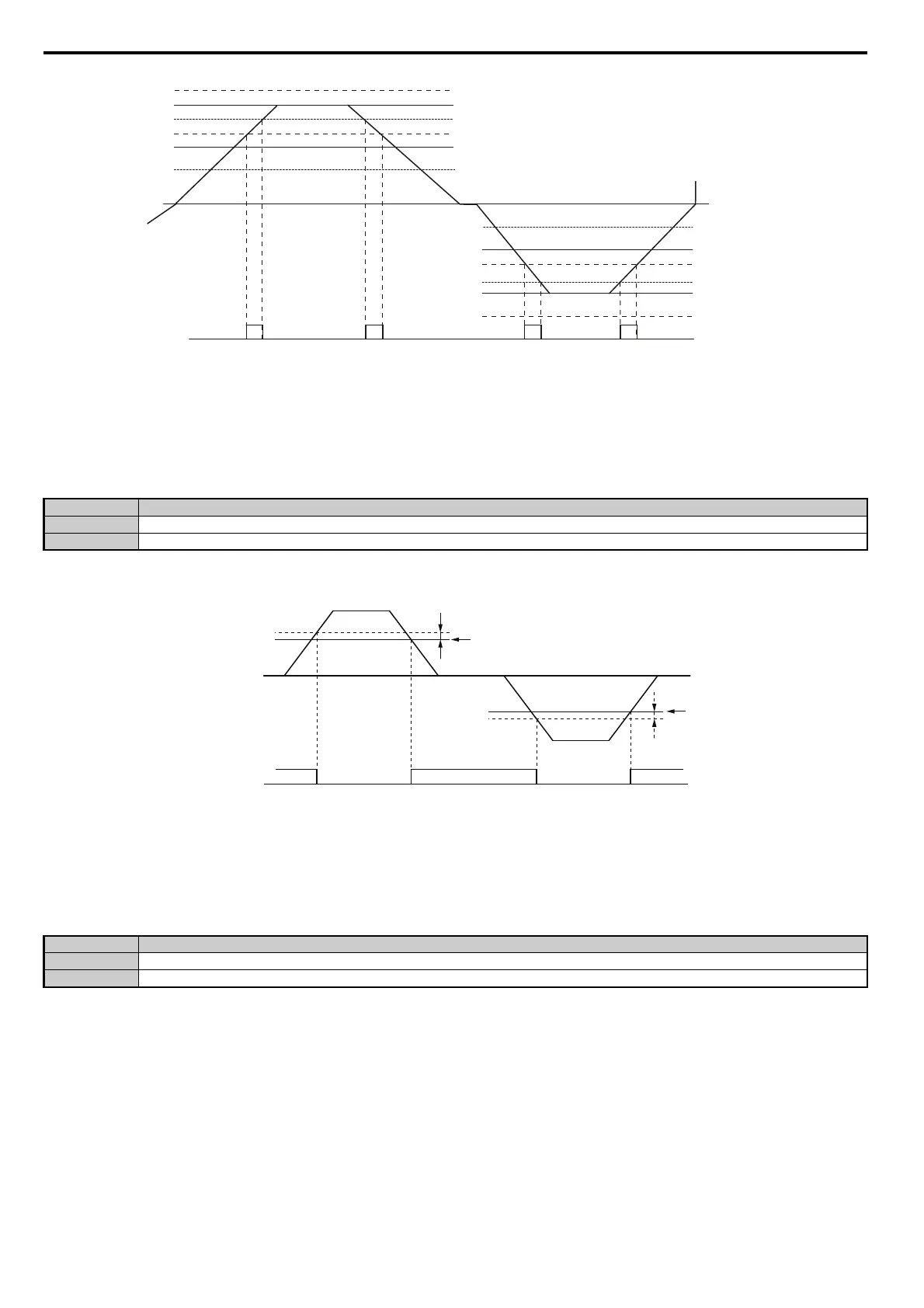

Figure 5.43
Figure 5.43 User Set Speed Agree 1 Time Chart
Refer to L4-01, L4-02: Speed Agreement Detection Level and Detection Width on page 227 for more instructions.
Setting 4: Frequency Detection 1
Output opens when the output frequency rises above the detection level set in L4-01 plus the detection width set in L4-
02. The terminal remains open until the output frequency falls below the level set in L4-01.
Note: Frequency detection works in both forward and reverse. The value of L4-01 is used as the detection level for both directions.
Figure 5.44
Figure 5.44 Frequency Detection 1 Time Chart
Refer to L4-01, L4-02: Speed Agreement Detection Level and Detection Width on page 227 for more details.
Setting 5: Frequency Detection 2
Output closes whenever the output frequency is above the detection level set in L4-01. The terminal remains closed until
the output frequency falls below L4-01 minus the setting of L4-02.
Note: Frequency detection works in both forward and reverse. The value of L4-01 is used as the detection level for both directions.
Status Description
Open Output frequency or motor speed exceeded L4-01 + L4-02.
Closed Output frequency or motor speed is below L4-01 or has not exceeded L4-01 + L4-02.
Status Description
Open Output frequency or motor speed is below L4-01 minus L4-02 or has not exceeded L4-01.
Closed Output frequency or motor speed exceeded L4-01.
Frequency reference
Frequency reference+ L4-02
Frequency reference– L4-02
L4-01
L4-01+ L4-02
L4-01– L4-02
Frequency reference
Frequency reference+ L4-02
Frequency reference– L4-02
–L4-01
–L4-01+ L4-02
–L4-01– L4-02
During
Forward
During Reverse
Output frequency
0 Hz
OFF
OFF OFF
ON ON ON
ON
Output frequency
User Set
Speed Agree 1
L4-02
Frequency
detection 1
ON
OFF
L4-02
L4-01
L4-01
Output Frequency
or Motor Speed
