5.7 H: Terminal Functions
196 YASKAWA ELECTRIC SIEP C710616 35D YASKAWA AC Drive E1000 Technical Manual

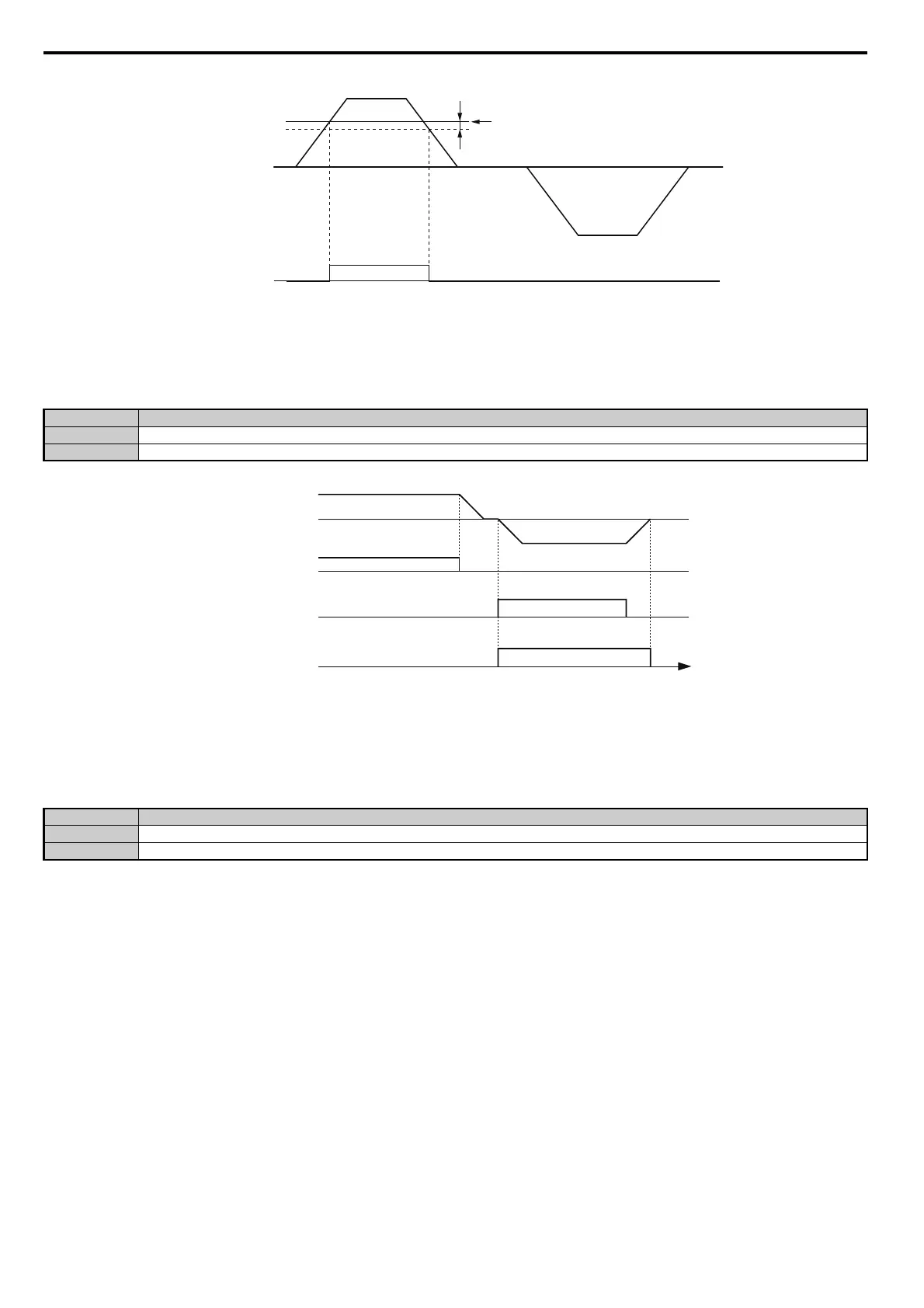

Figure 5.49
Figure 5.49 Frequency Detection 4 Example with Positive L3-04 Value
Refer to L4-03, L4-04: Speed Agreement Detection Level and Detection Width (+/-) on page 227 for more details.
Setting 1A: During Reverse
A digital output set for “During reverse” will close whenever the drive is running the motor in the reverse direction.
Figure 5.50
Figure 5.50 Reverse Direction Output Example Time Chart
Setting 1B: During Baseblock (N.C.)
Output opens to indicate that the drive is in a baseblock state. While Baseblock is executed, output transistors do not
switch and no main circuit voltage is output.
Setting 1E: Restart Enabled
An output set for “Restart enabled” closes once the drive begins attempting to restart after a fault has occurred.
The fault restart function allows the drive to automatically clear a fault. The terminal set to 1E will close after the fault is
cleared and the drive has begun attempting to restart. If the drive cannot successfully restart within the number of
attempts permitted by L5-01, then a fault will be triggered and the terminal set to 1E will open. Refer to L5: Fault
Restart on page 228 for details on automatic restart.
Setting 1F: Motor Overload Alarm (oL1)
An output programmed for this function will close when the motor overload level estimated by the oL1 fault detection
exceeds 90% of the oL1 detection level. Refer to L1-01: Motor Overload Protection Selection on page 209.
Setting 20: Drive Overheat Pre-alarm (oH)
Output closes whenever the drive heatsink temperature reaches the level specified by parameter L8-02. Refer to L8-02:
Overheat Alarm Level on page 233 for details on drive overheat detection.
Status Description
Open Motor is being driven in the forward direction or stopped.
Closed Motor is being driven in reverse.
Status Description
Open Baseblock is being executed.
Closed Drive is not in a baseblock state.
L4-04
Frequency
Detection 4
ON
OFF
L4-03
Output Frequency
or Motor Speed
Output frequency
time
FWD Run command
REV Run command
During Reverse
OFF
ON
