5.7 H: Terminal Functions
YASKAWA ELECTRIC SIEP C710616 35D YASKAWA AC Drive E1000 Technical Manual 197
Setting 2F: Maintenance Period
Output closes when the cooling fan, DC bus capacitors, or DC bus pre-charge relay may require maintenance as
determined by the estimated performance life span of those components. Components performance life is displayed as a
percentage on the digital operator screen. Refer to Periodic Maintenance on page 301.
Setting 37: During Frequency Output
Output closes when the drive is outputting a frequency.

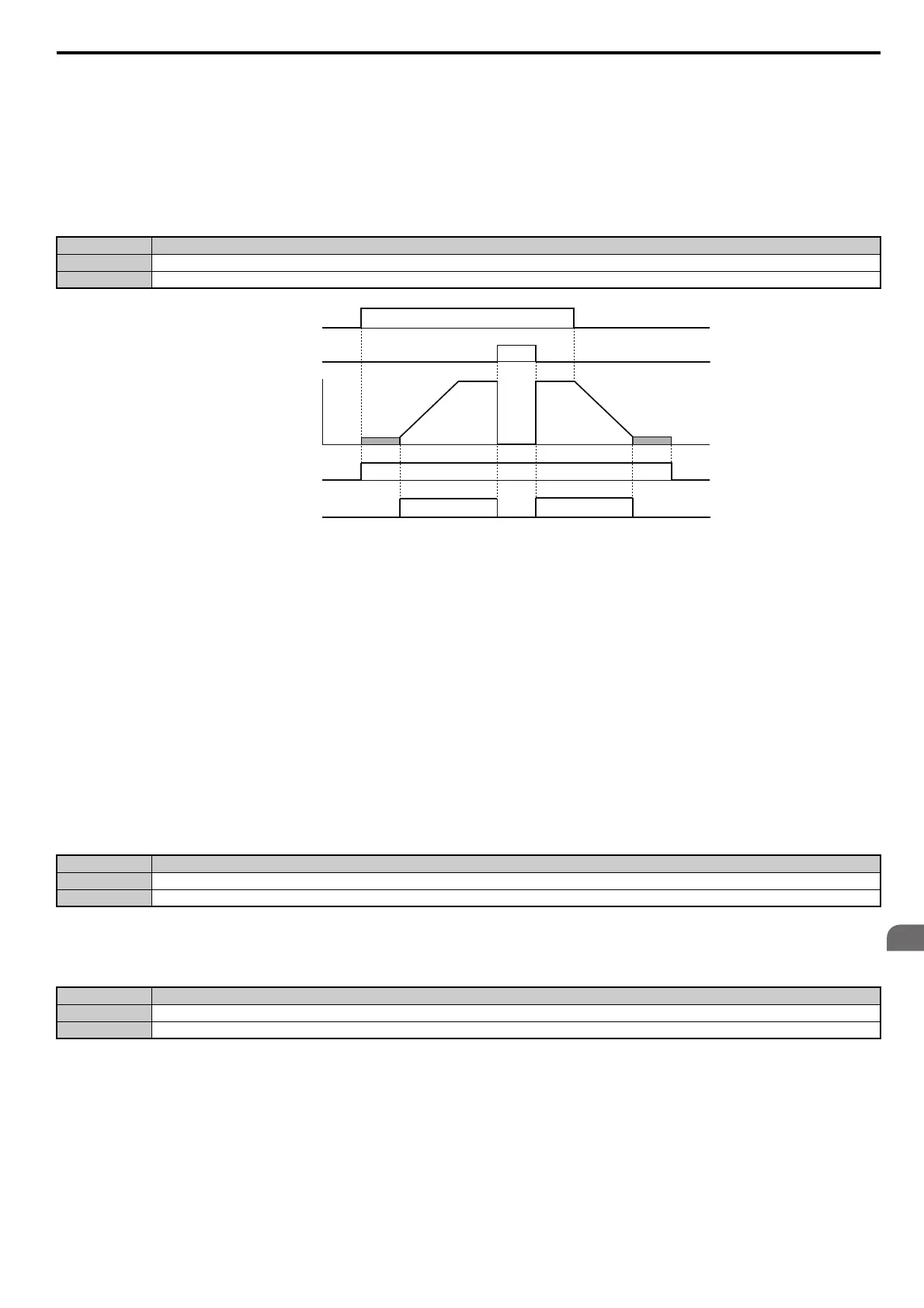

Figure 5.51
Figure 5.51 During Frequency Output Time Chart
Setting 38: Drive Enable
A digital output set for “Drive enable” will reflect the status of a digital input configured as a “Drive enable” input (H1-
= 6A). If that digital input closes, then the digital output set for “Drive enable” will also close.
Setting 39: Watt Hour Pulse Output
Outputs a pulse to indicate the watt hours. Refer to H2-06: Watt Hour Output Unit Selection on page 198 for details.
Setting 3A: Drive Overheat Alarm (oH2)
Output closes when an external device triggered an overheat warning in the drive.
Setting 3B: RUN Command from Option Card/Communications
If a multi-function digital output is programmed to 3B the output will be switched ON when the RUN command is input
from the built-in communication (MEMOBUS/Modbus) or from a communication option card (SI-S3, SI-N3, etc). If
both RUN commands are off the output will be switched OFF.
Setting 3C: LOCAL/REMOTE Status
Output terminal closes while the drive is set for LOCAL and opens when in REMOTE.
Setting 3D: During Speed Search
Output terminal closes while Speed Search is being performed. Refer to b3: Speed Search on page 139 for details.
Setting 3E: PI Feedback Low
Output terminal closes when a PI feedback loss is detected. The feedback is considered to be lost if it falls below the level
set to b5-13 for longer than the time set to b5-14. Refer to PI Feedback Loss Detection on page 149 for details.
Status Description
Open Drive is stopped or one of the following functions is being performed: baseblock, DC Injection Braking, Short Circuit Braking.
Closed Drive is outputting frequency.
Status Description
Open Run command is not input from the MEMOBUS/Modbus communication or a Communication option.
Closed Run command is input from the MEMOBUS/Modbus communication or a Communication option.
Status Description
Open REMOTE: The external reference that has been selected (either b1-01 and b1-02 or b1-15 and b1-16) is used as frequency reference and Run command source.
Closed LOCAL: The digital operator is used as frequency reference and Run command source.
ON
ON
OFF
OFF
ONOFF
ON
run command
baseblock
command
output
frequency
during run
during frequency
output
OFF
