1.5 Component Names
YASKAWA ELECTRIC SIEP C710616 35D YASKAWA AC Drive E1000 Technical Manual 37
Receiving
1
■ Three-Phase AC400 V CIMR-E4A0515A, 0675A
Figure 1.6

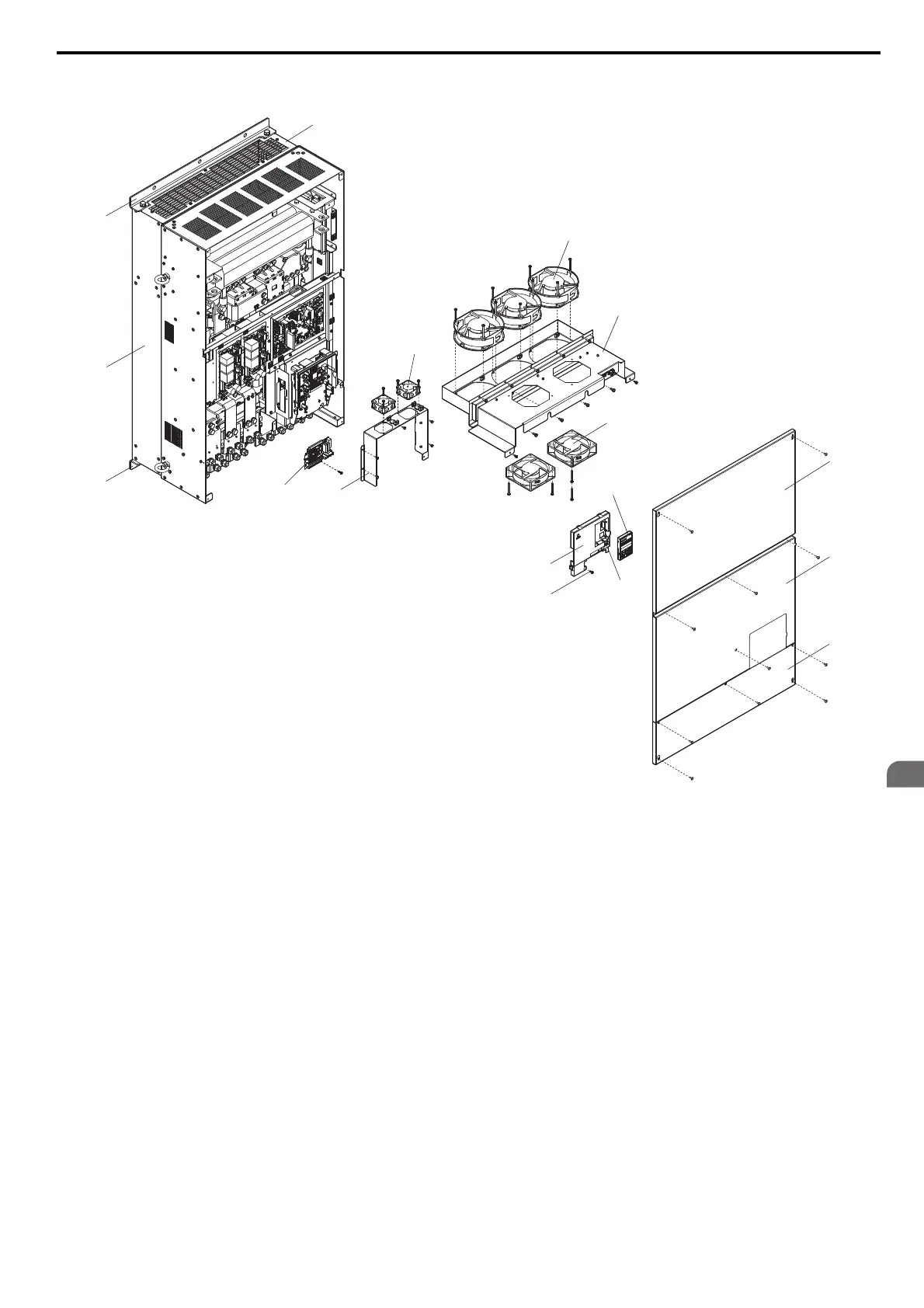

Figure 1.7 Exploded view of IP00 Enclosure Type Components (CIMR-E4A0675A)
A – Mounting hole I – Circuitboard cooling fan
unit case
B – Heatsink J – Front cover
C – Terminal board K – USB port (type-B)
D – Fan guard L – Digital operator
E – Cooling fan M – Front cover screw
F – Fan unit case N – Drive cover 1
G – Circulation fan O – Drive cover 2
H – Circuitboard cooling fan P – Terminal cover
C
A
B
A
I
H
F
E
D
G
L
J
M
K
N
O
P
