1.5 Component Names
38 YASKAWA ELECTRIC SIEP C710616 35D YASKAWA AC Drive E1000 Technical Manual
■ Three-Phase AC400 V CIMR-E4A0930A,1200A
Figure 1.7

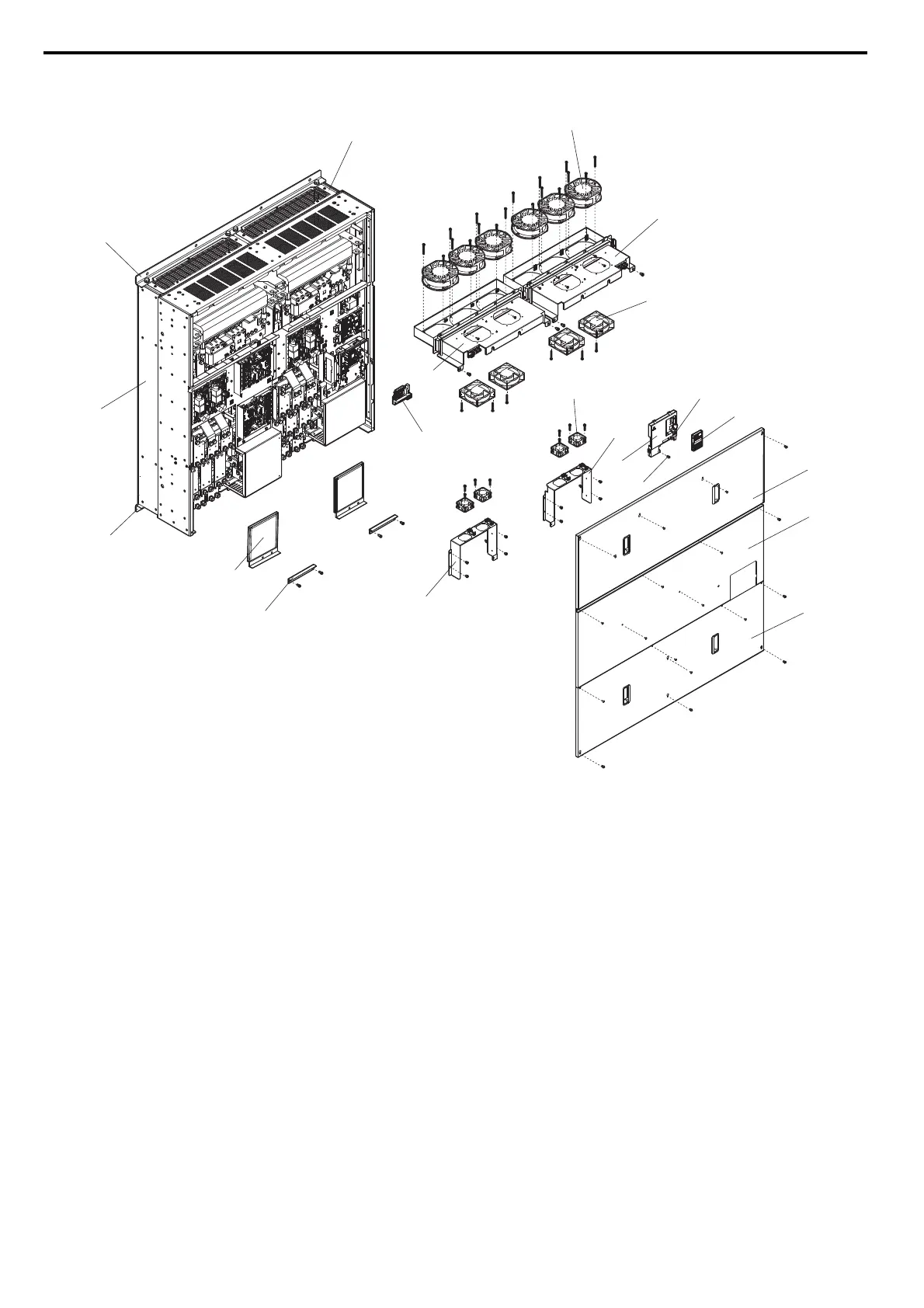

Figure 1.8 Exploded view of IP00 Enclosure Type Components (CIMR-E4A0930A)
A – Mounting hole K – Circuitboard cooling fan
unit case (R)
B – Heatsink L – Front cover
C – Terminal board M – USB port (type-B)
D – Fan guard N – Digital operator
E – Cooling fan O – Front cover screw
F – Fan unit case (L) P – Filter case
G – Fan unit case (R) Q – Blind cover
H – Circulation fan R – Drive cover 1
I – Circuitboard cooling fan S – Drive cover 2
J – Circuitboard cooling fan
unit case (L)
T – Terminal cover
A
A
C
J
P
Q
I
E
G
H
M
R
S
T
N
L
O
D
B
F
K
