9-30 – Transient Balance Chapter 9 Revision 2.10, Apr 2020
 [F4] “Sel Pla/Wt” – Appears if optional balance planes or multiple class weight sets are
configured in the setup. Displays the “Select Plane / Class Wt Set” screen and allows you
to select another balance plane and/or weight set.
 [F5] “Quit Job” – Allows you to terminate this job without the option to resume at a later
time. The “Quit Job” selection will update the influence coefficient in the setup for use in
follow on Jobs.

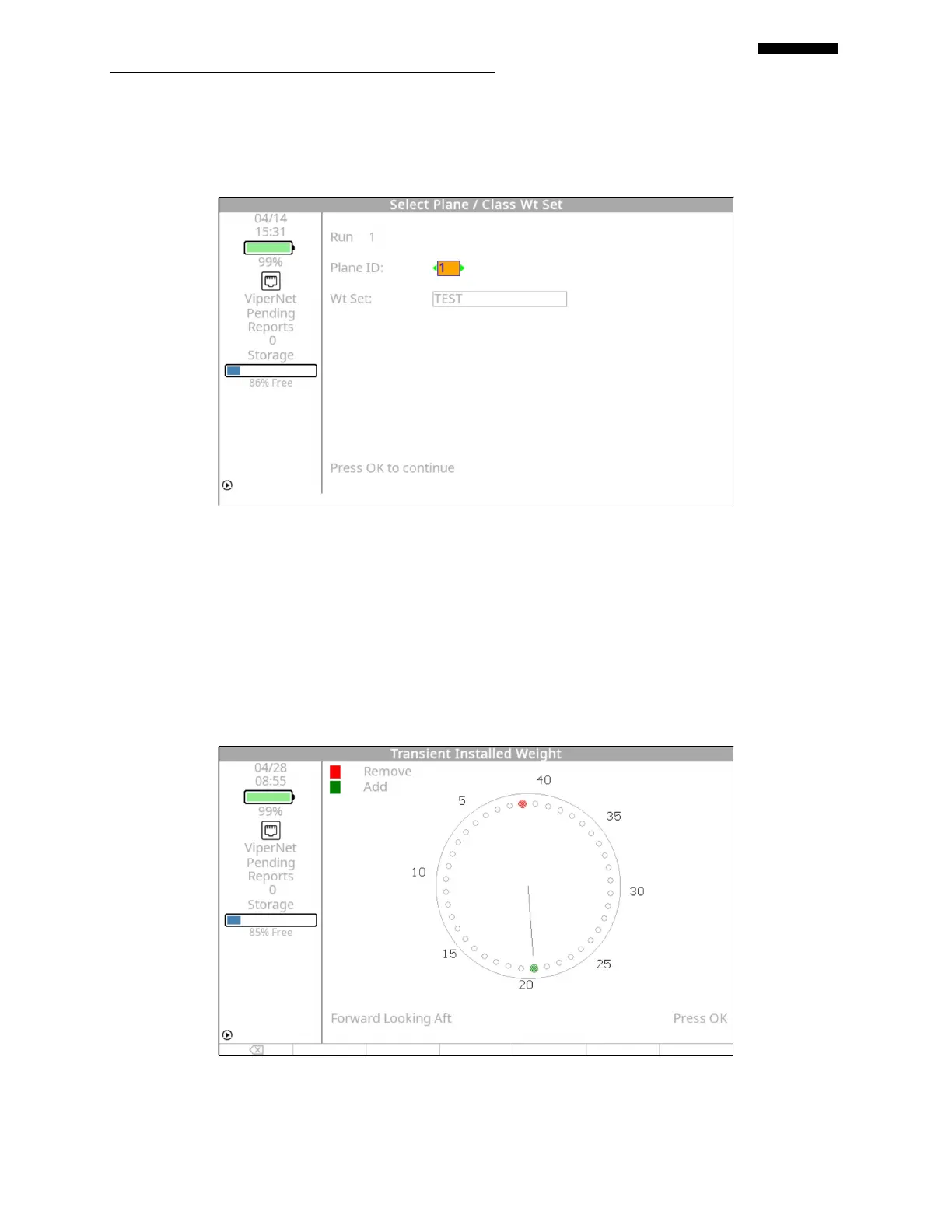

 [F6] “Graph” – Displays a graph of the balance plane as viewed from the perspective
chosen in paragraph 9.1.5.11 above. The graph will display position location(s) identified
in the solution. The line represents the effective angle of the calculated solution. The
previous solution will be displayed in red to alert the user to remove it. The new solution
will be presented in Green.
