Gen II User Manual
13-16 – Transient Vibration Survey Chapter 13 Revision 4.10, Apr 20
13.1.1.10. – L:Spec

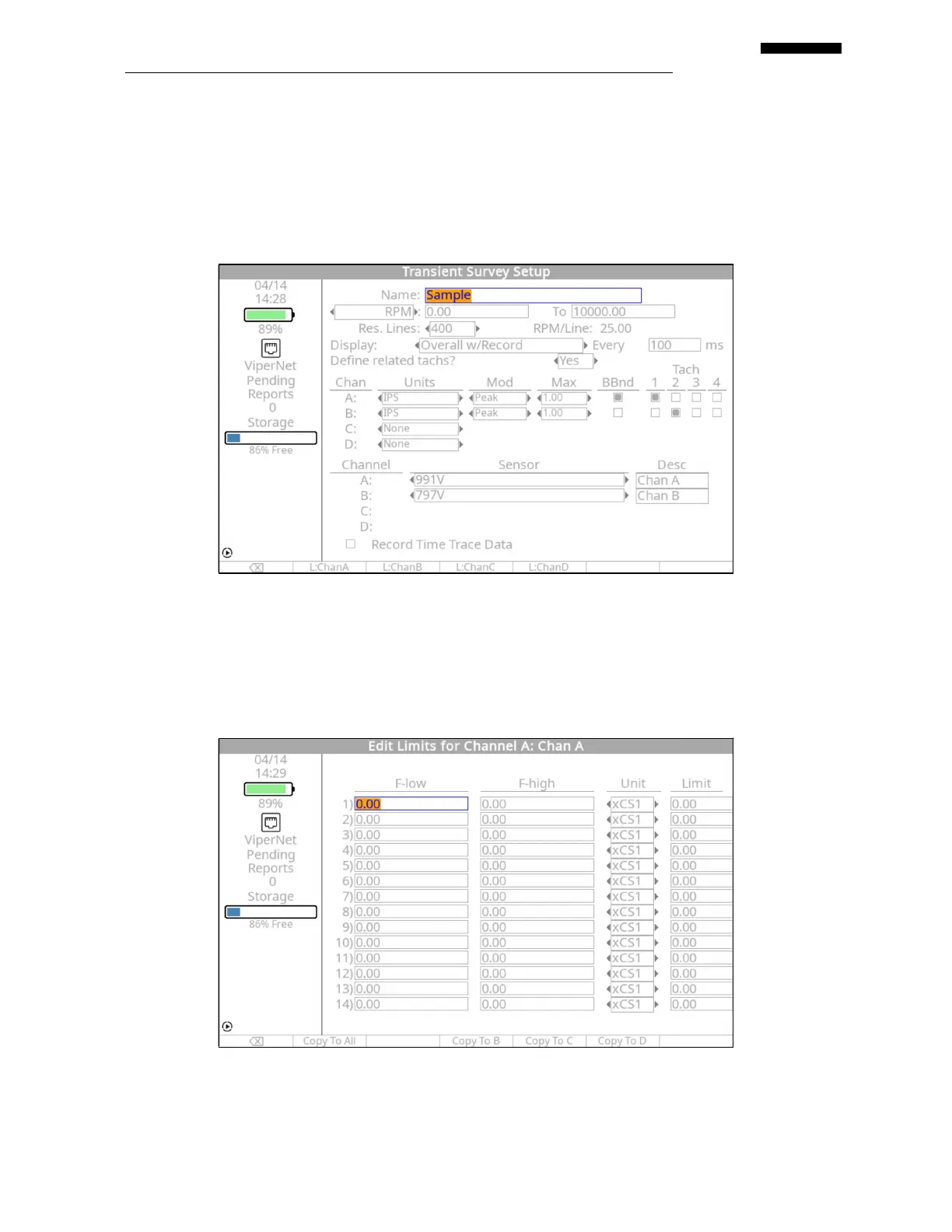

The “L:Spec”, or Limit: Spectra, (which corresponds to the [F2] key) selection appears at the
bottom, second from the left of the Transient Survey Setup screen after selection of [F5]
“Limits” from the main Transient Survey Setup screen. Press the [F2] key if you wish to define
Spectra Limits for the transient survey plots.
To define spectra limits, do the following:
13.1.1.10.1. Choose the spectrum for which you wish to define limits, “L:Chan A”, “L:Chan B”,
“L:Chan C”, or “L:Chan D” from the corresponding function key at the bottom of the
screen. The letters A, B, C, and D are in reference to the input channel of the analyzer.
