The “Split Angle” toggle field allows you to split the weight across two locations.
Selecting “No”, the final weight solution will be installed at a single weight location as
shown below.

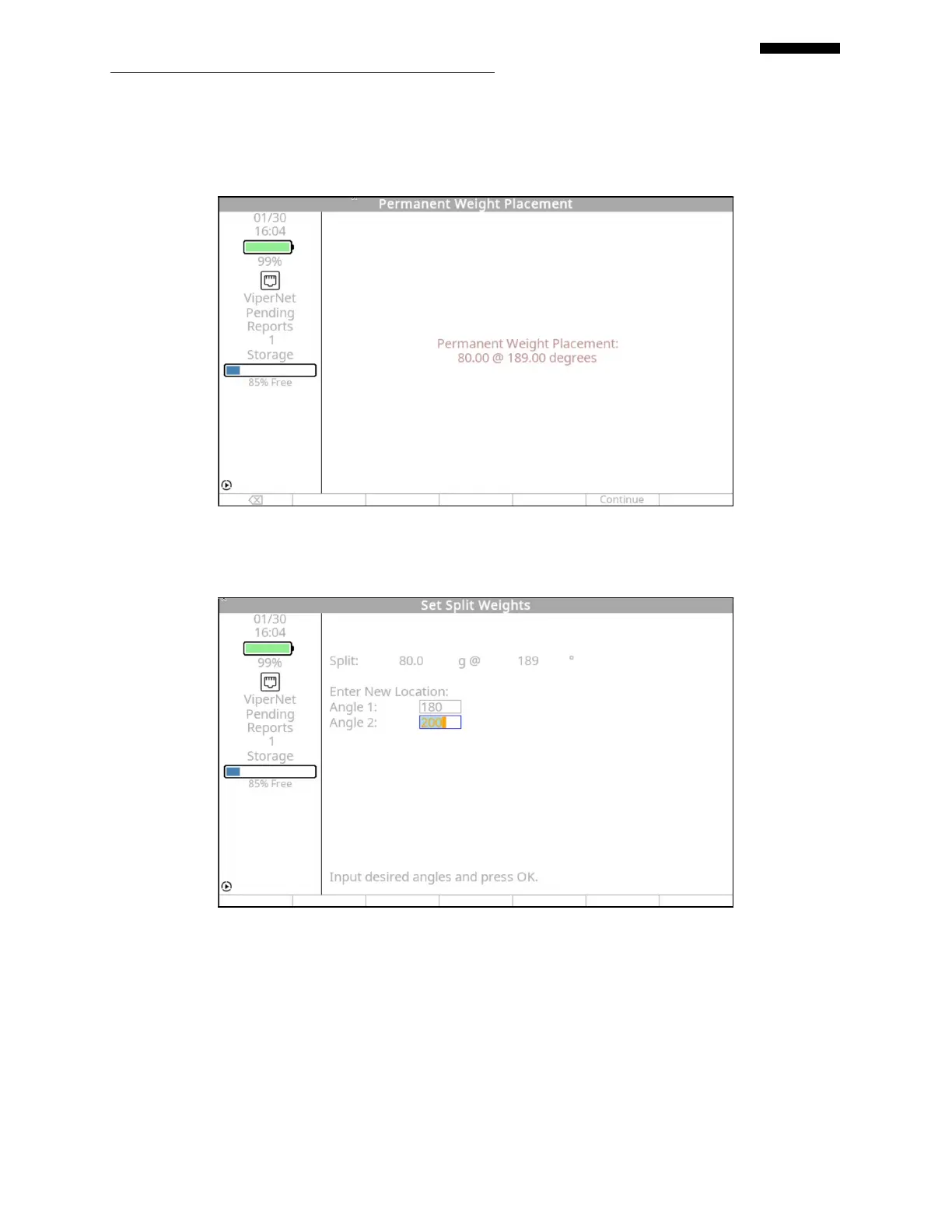

By selecting “Yes” in the “Split Angle” field, the “Set Split Weight” screen is displayed
as shown below.
The single location solution (in this case 80 Grams @ 189 degrees) is displayed at the top of the
screen. The next line states “Enter New Location.” Use the keypad to complete the next two
fields, “Angle 1” and “Angle 2.” Locate the two available weight installation locations (one on
each side of the 189-degree location) and enter them in the two fields. Use the [] key to move
between the fields. Press [OK] to continue.
The “Permanent Weight Placement” screen seen below will show the suggested weight to place
at each location to compensate for the reduced radius from the previously installed test weights.
