Alcatel-Lucent 9500 MXC - Page 121

9500 MXC User Manual
3DB 23063 ADAA - Rev 004 July 2007 Vol. II-3-27
Table 3-12. Link Delay Times for RAC 3X: ANSI Rates
RAC Front Panel Layout
Figure 3-14 shows the front panel layout. Table 3-13 describes the interfaces.

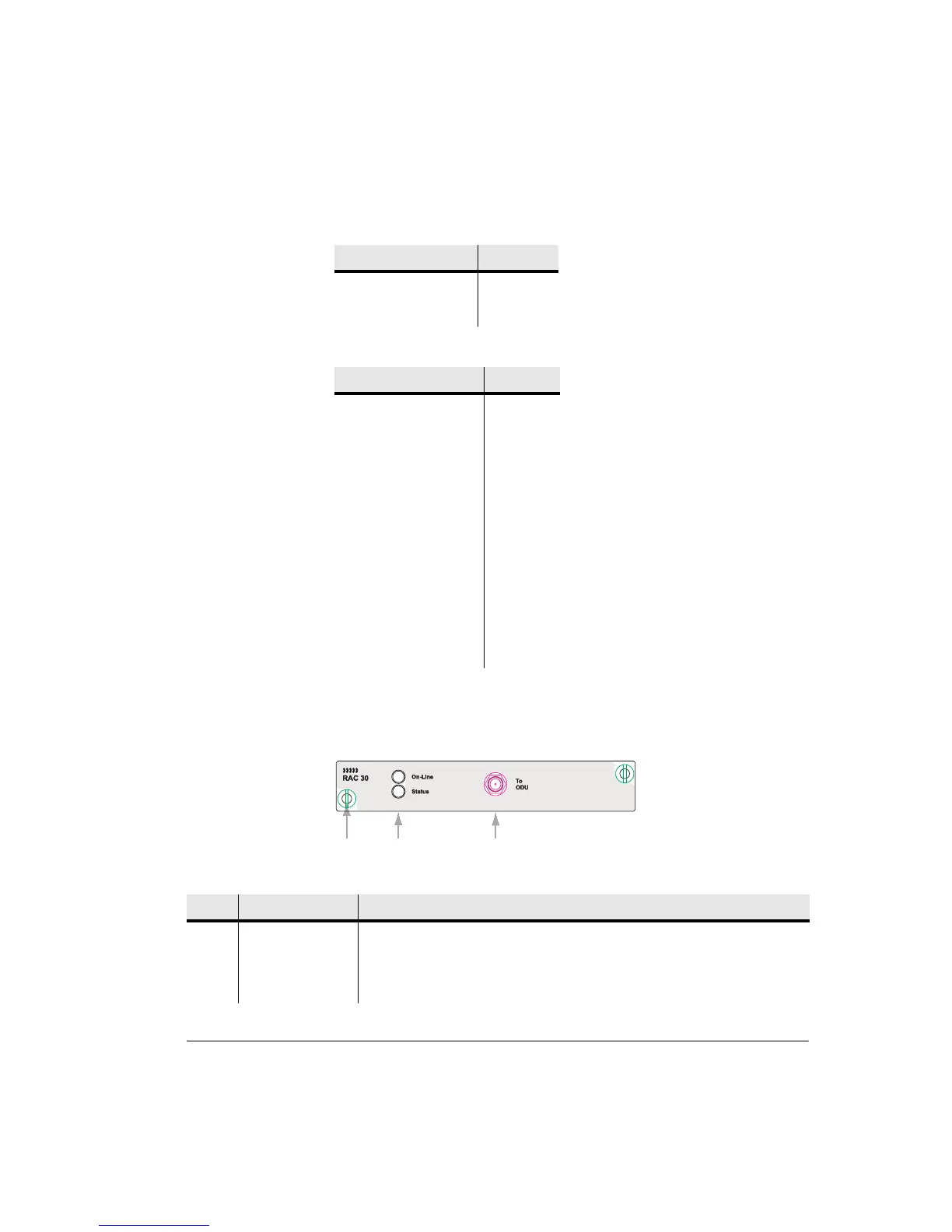

Figure 3-14. RAC 30V3 Front Panel Layout
Table 3-13. RAC 30V3 and RAC 3X Front Panel Description
2STM1,56M,128Q 0.13
2STM1,50M,256Q 0.13
RAC3X ms
32DS1,40M,QPSK 0.65
70DS1,40M,16Q 0.45
84DS1,50M,16Q 0.45
84DS1,40M,32Q 0.45
100DS1,50M,16Q 0.4
100DS1,40M,32Q 0.4
1OC3,50M,16Q 0.19
1OC3,40M,64Q 0.19
1OC3,30M,128Q 0.19
2OC3,50M,256Q 0.13
RAC3X ms
12 3
V3
No Item/Label Description
1 Plug-in fastener Finger-grip screw-type fastener and card pull (2).
2 On-Line LED On-Line LED provides indications of:
Off INU off-line or ODU transmit muted
