9500 MXC User Manual
3DB 23063 ADAA - Rev 004 July 2007 Vol. II-3-51
from 64 to 1536 bytes, it currently supports sizes of 1518/1522, or 1536 bytes
(1518 for non-tagged frames, 1522 for tagged frames).
Diagnostics
CT diagnostics screens capture Ethernet performance and history. The data for
DAC ES includes:
• Port/channel status.
• Configured capacities.
• Graphed current Rx and Tx throughputs and discards per port and channel.
• Graphed historical Rx and Tx throughputs, frame type and discards per port and
channel.
• Historical statistics per port and channel.
• Comprehensive RMON performance statistics per port and channel.
• Event history.
For more information refer to Volume IV, Chapter 15 for:
• DAC ES and DAC GE System/Controls Screens
• DAC ES and IDU ES Performance
• History Screen: Ethernet
DAC ES Front Panel Layout

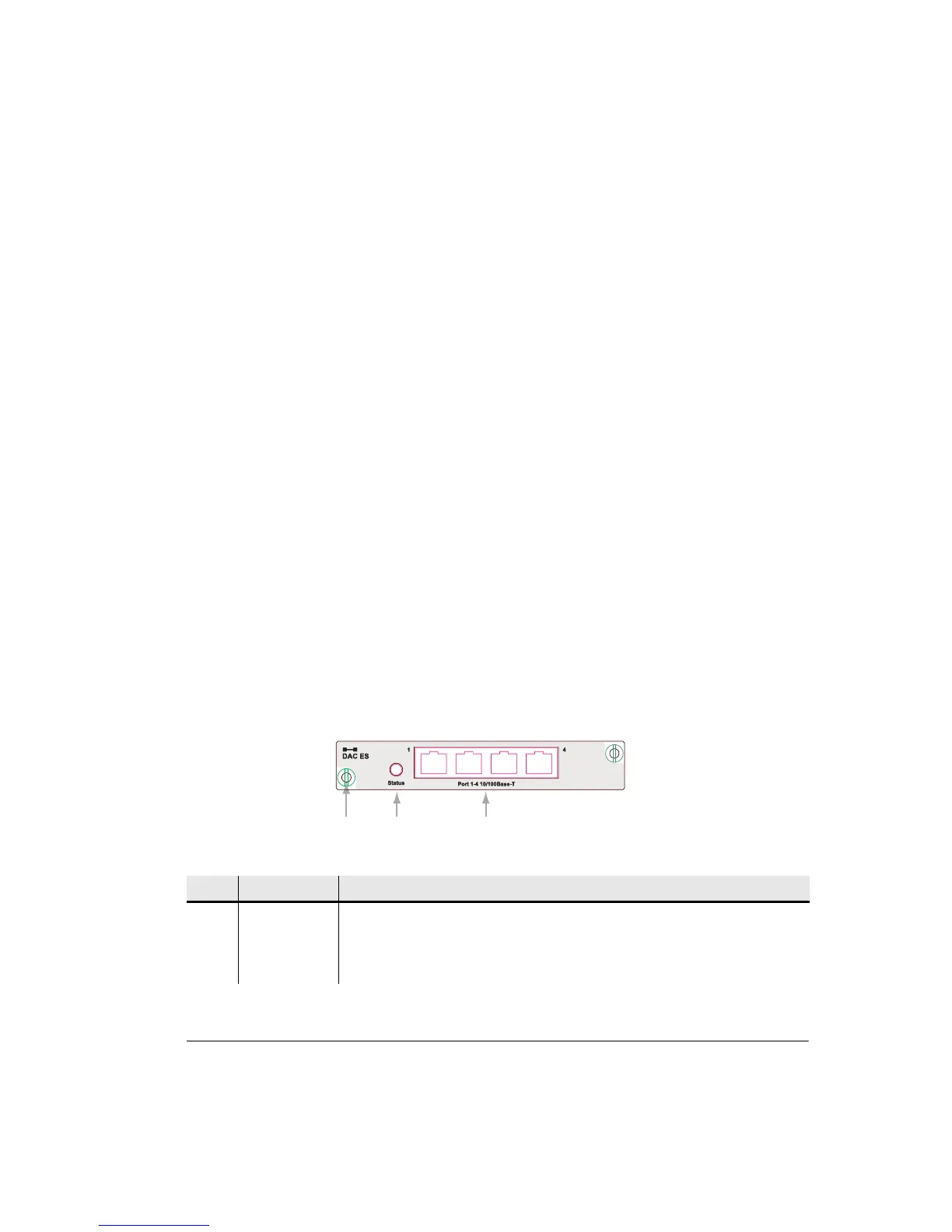

Figure 3-33 shows the DAC ES front panel layout. Table 3-22 describes the
interfaces.
Figure 3-33. DAC ES Front Panel Layout
Table 3-22. DAC ES Front Panel Descriptions
12 3
No Item/Label Description
1 Plug-in fastener Finger-grip screw-type fastener and plug-in pull (2).
2 Status LED Status LED provides indications of:
Off INU power off
