Chapter 3. 9500 MXC Nodes
Vol. II-3-114 Alcatel-Lucent
• DAC GE 'C' in INU 2 provides the RWPR ring switch function and hosts the
local LAN. Note that the east, west and local LAN interfaces are all
port-connected; the DAC GE 'C' transport channels are not configured (no
backplane bus access is required).
• The east and west aggregated links are treated as one virtual link by RWPR.
If one link in the aggregated pair fails, ring switching does not occur - both
links must fail to initiate switching.

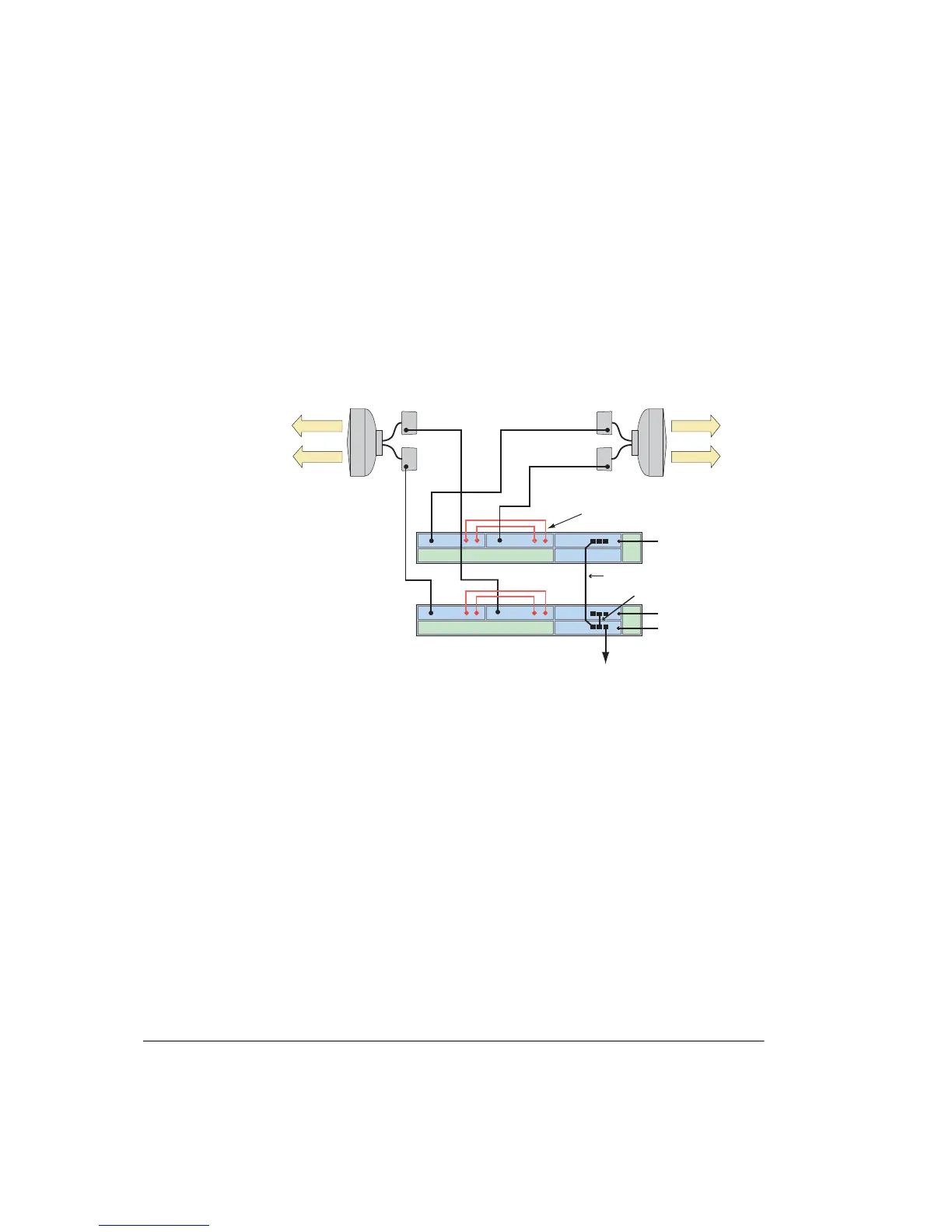

Figure 3-64. 300 Mbps Co-channel Ring Node: 2x150 Mbps
Fan
NCC
DAC GE
INU
INU
150 Mbps (V)
150 Mbps (H)150 Mbps (H)
V
V
HH
XPIC Cross-Connect Cables
ODU 300ODU 300
Fan
NCC
DAC GE
DAC GE
150 Mbps (V)
RAC 40
RAC 40 RAC 40
RAC 40
West East
DAC GE link aggregation
DAC GE RWPR switch
DAC GE link aggregation
300 Mbps LAN interface
Aggregated 300 Mbps east
Aggregated 300 Mbps west
150 Mbps
150 Mbps
150 Mbps
150 Mbps
