Chapter 3. 9500 MXC Nodes
Vol. II-3-116 Alcatel-Lucent
Space Diversity Protected Co-channel Ring Links
Figure 3-66 illustrates space diversity protection of co-channel ring links.
• Where path protection of a ring link is required space diversity (SD) is
recommended.
• One or all ring links can be SD protected.
• Where co-channel ring links are to be SD protected, both must be SD protected.
• SD protection is subordinated to the ring protection mechanism (ring wrap and
unwrap). For guidance on SD protection of ring links refer to 1+1 Protected
Ring Links on page 3-86.
• The link maximums on single gateway rings are 64xE1 or 84xDS1.
• An NPC plug-in is included in each INUe to provide NCC redundancy.

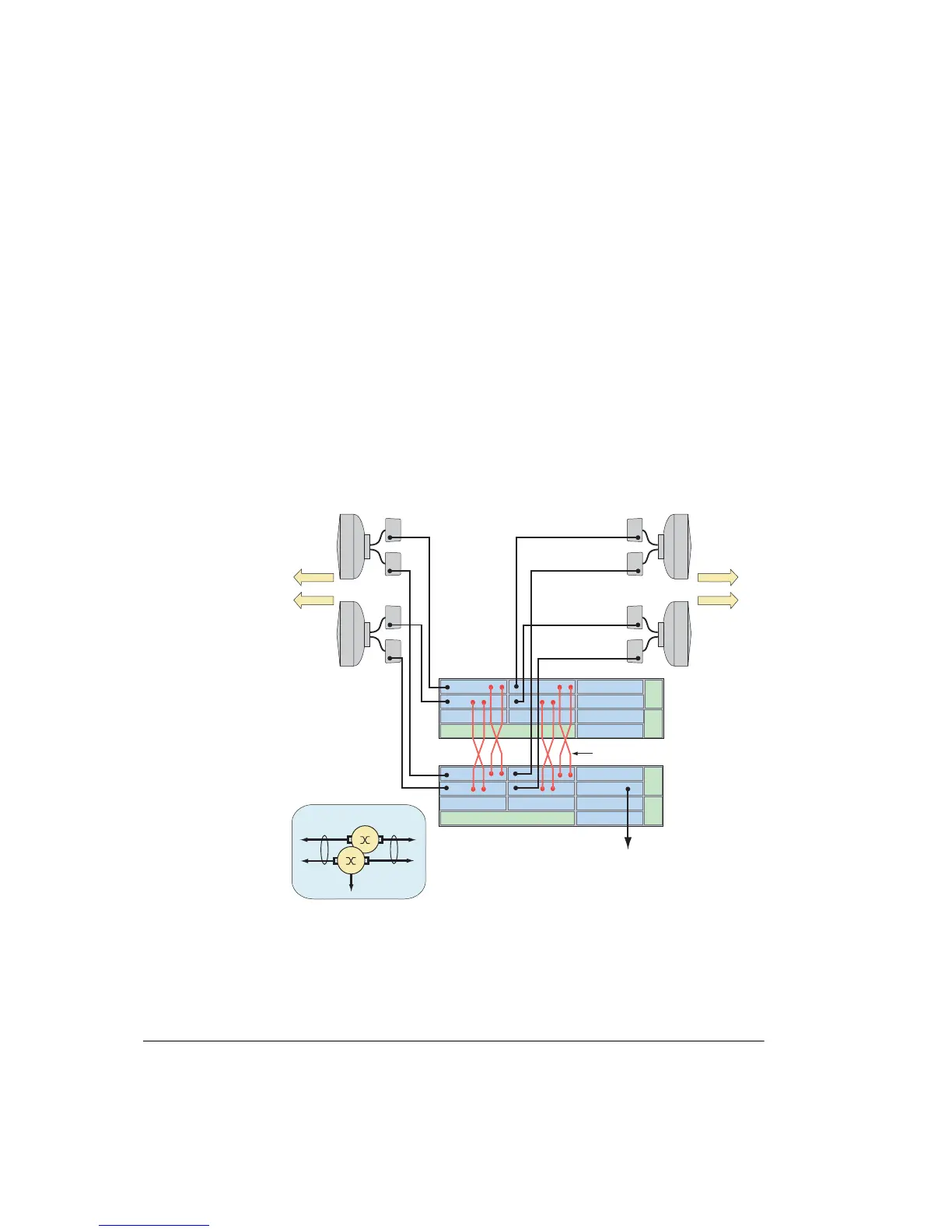

Figure 3-66. Space Diversity Protected 64xE1 Co-channel Ring Links
NCC
RAC 40RAC 40
16xE1
Fan
Fan
NCC
RAC 40
RAC 40
RAC 40
RAC 40
NPC
Slot 7
Slot 8
Slot 6
Slot 9
Slot 3
INUe
16xE1
64xE1 (H) 64xE1 (H)
VV
V
V
H
H
HH
ODU 300s
ODU 300s
64xE1 (V) 64xE1 (V)
RAC 40 RAC 40
Fan
Slot 3
Fan
NCC
INUe
NPC
DAC 16x
Slot 7
Slot 8 Slot 9
16xE1 drop/insert
RAC 40
RAC 40
RAC 40
RAC 40
64xE1
64xE1 64xE1
64xE1
16xE1
CCDPCCDP
2+2 SD CCDP Ring Node
XPIC cables
VV
H
H
Ch A Primary
Ch B Primary
Ch A Secondary
Ch B Secondary
