Chapter 2. Outdoor Installations
Vol. III-2-4 Alcatel-Lucent
for a Radio Waves antenna.

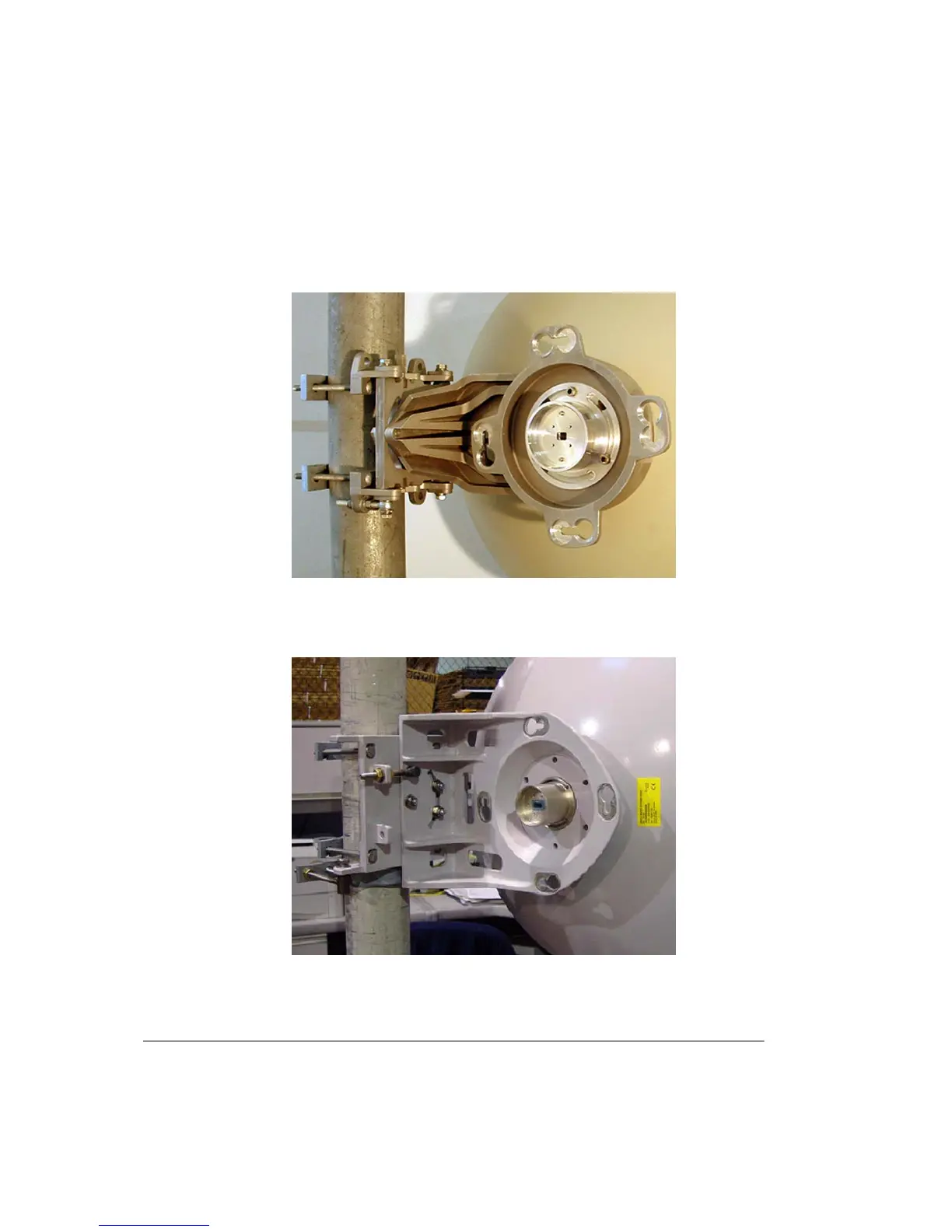

Figure 2-3. Radio Waves Pole Mount and Mounting Collar
Figure 2-4 shows the ODU mounting collar, pole mount, and polarization rotator
for a Precision antenna.
Figure 2-4. Precision Pole Mount and ODU Mounting Collar
Next step: Setting the Polarization on page 2-5.
