When a suppressor is installed with its support bracket, the bracket provides
single-point grounding for the assembly. Refer to Installing a Suppressor With a
Support Bracket on page 2-32.
Installation is shown in Figure 2-19.
When the suppressor is installed without the support bracket, the suppressor
and ODU must be separately grounded. Refer to Installing a Suppressor Without
a Support Bracket on page 2-37.

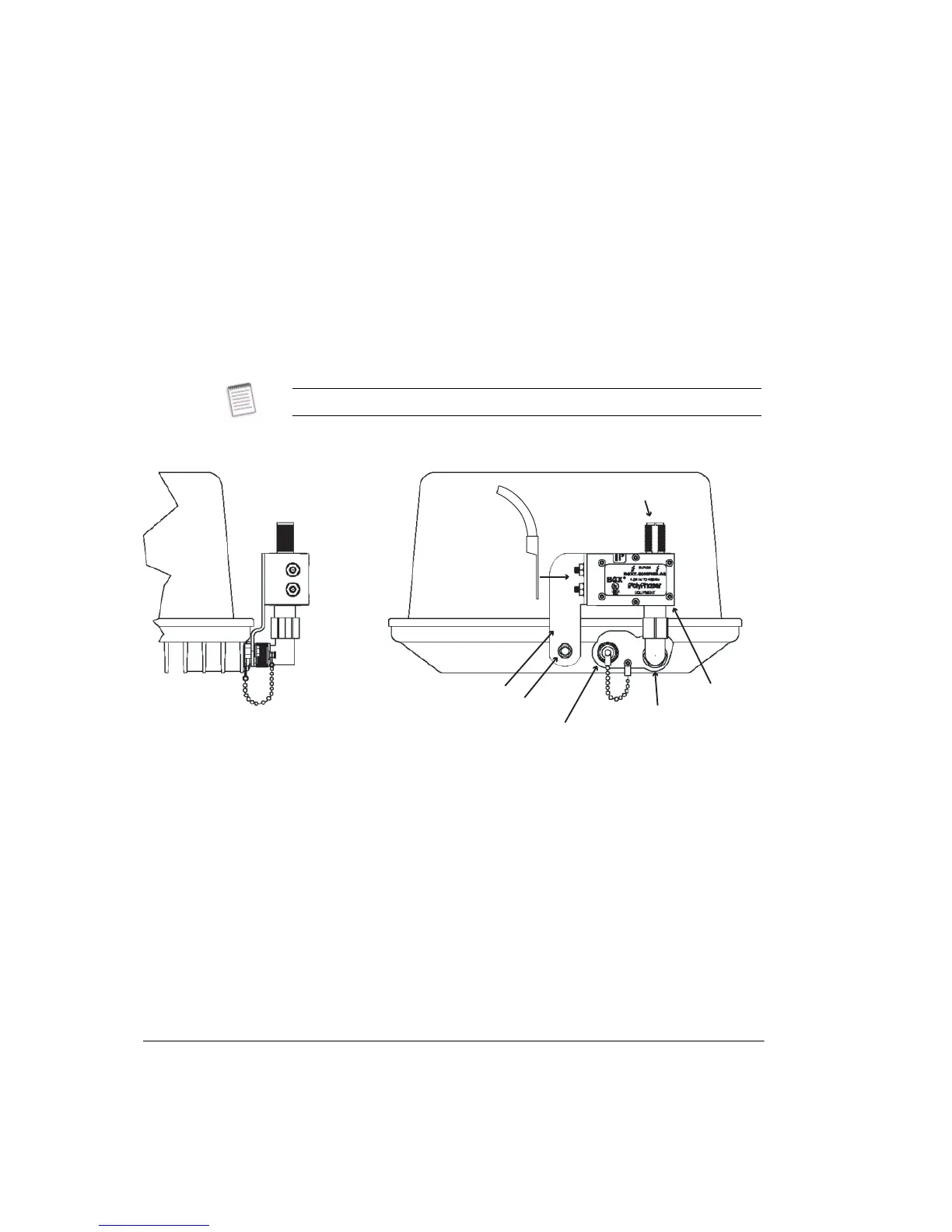

Figure 2-19. Installation of the Suppressor on the ODU
The body of the suppressor does not need to be weatherproofed.
Ground wire for
suppressor and ODU
ODU cable attachement
Right angle
connector
Support bracket
Ground stud
RSSI connector
Suppressor
Type N connectors must
be weatherproofed
