9500 MXC User Manual
3DB 23063 ADAA - Rev 004 July 2007 Vol. III-2-31

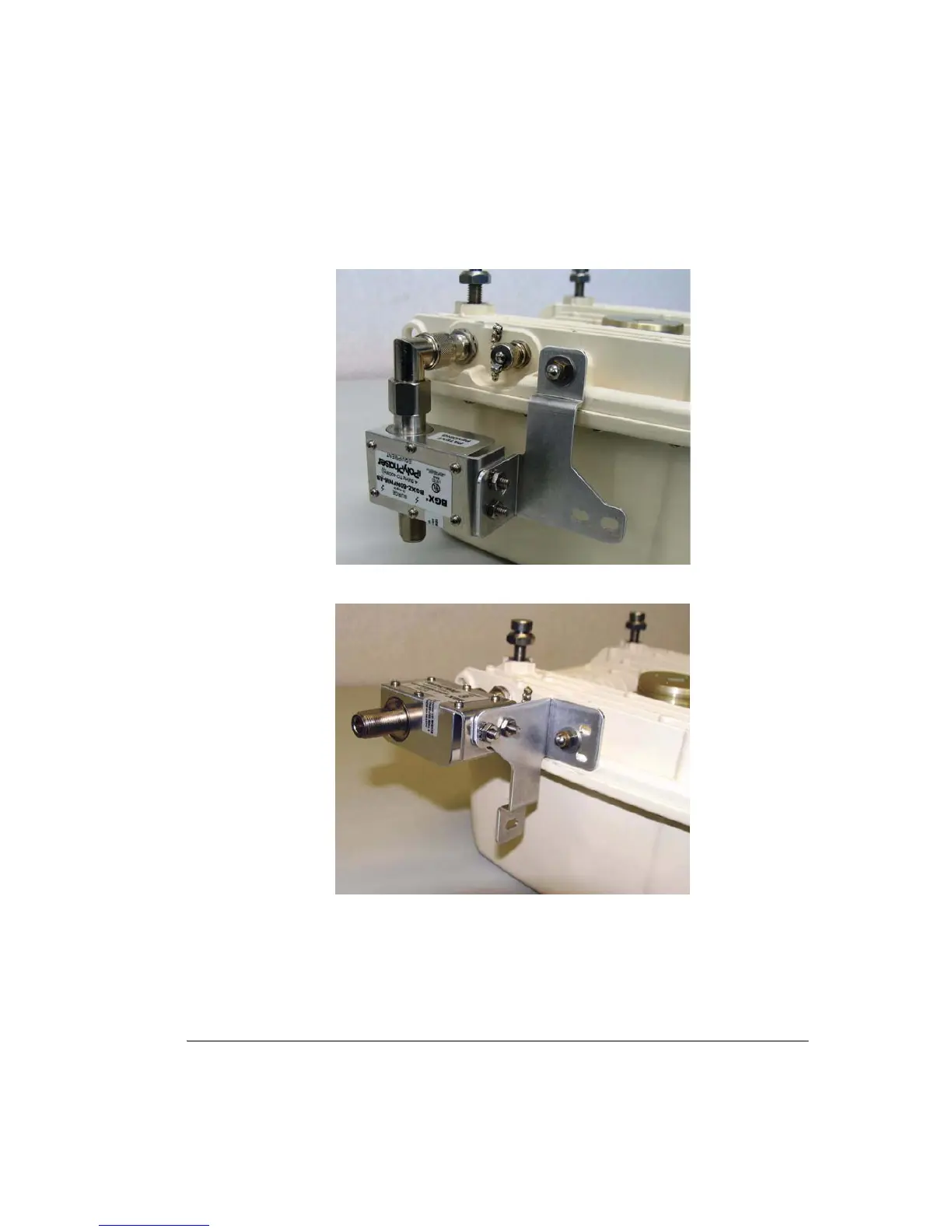

Figure 2-20. Universal Support Bracket: Vertical Suppressor Installation
Figure 2-21. Universal Support Bracket: Horizontal Suppressor Installation
NOTE: When the support bracket is fitted for horizontal suppressor installation
access to the RSSI connector is restricted; a BNC right-angle connector must be
used to gain access.
