9500 MXC User Manual
3DB 23063 ADAA - Rev 004 July 2007 Vol. III-2-33

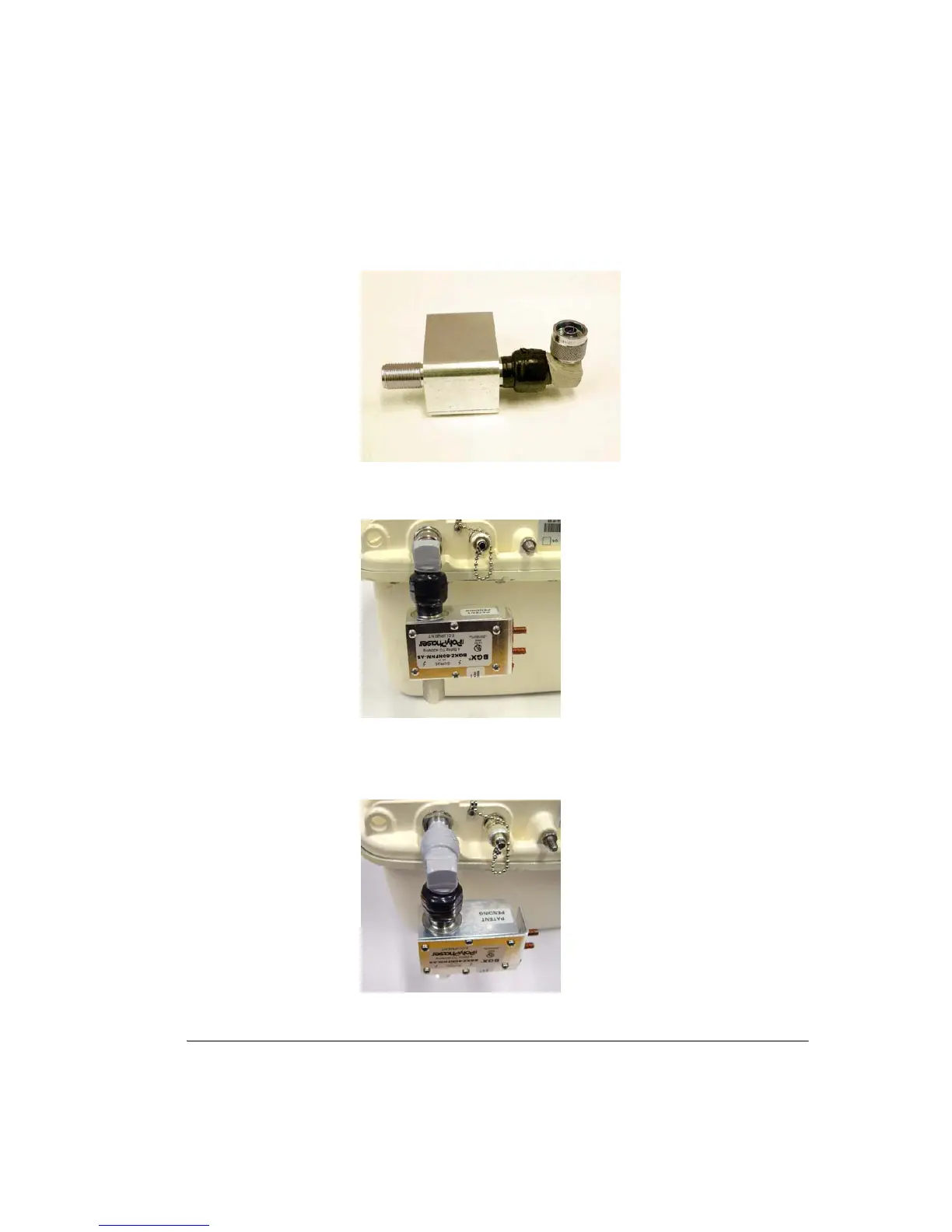

4. Partially overlay the amalgamating tape with UV-protecting vinyl tape.
5. Fit the partially weatherproofed suppressor assembly to the ODU and align as
shown.
6. Firmly hand-tighten the Type N connector.
7. Complete the weatherproofing of the right angle connector onto the ODU
with self-amalgamating tape.
