9500 MXC User Manual
3DB 23063 ADAA - Rev 004 July 2007 Vol. IV-7-17

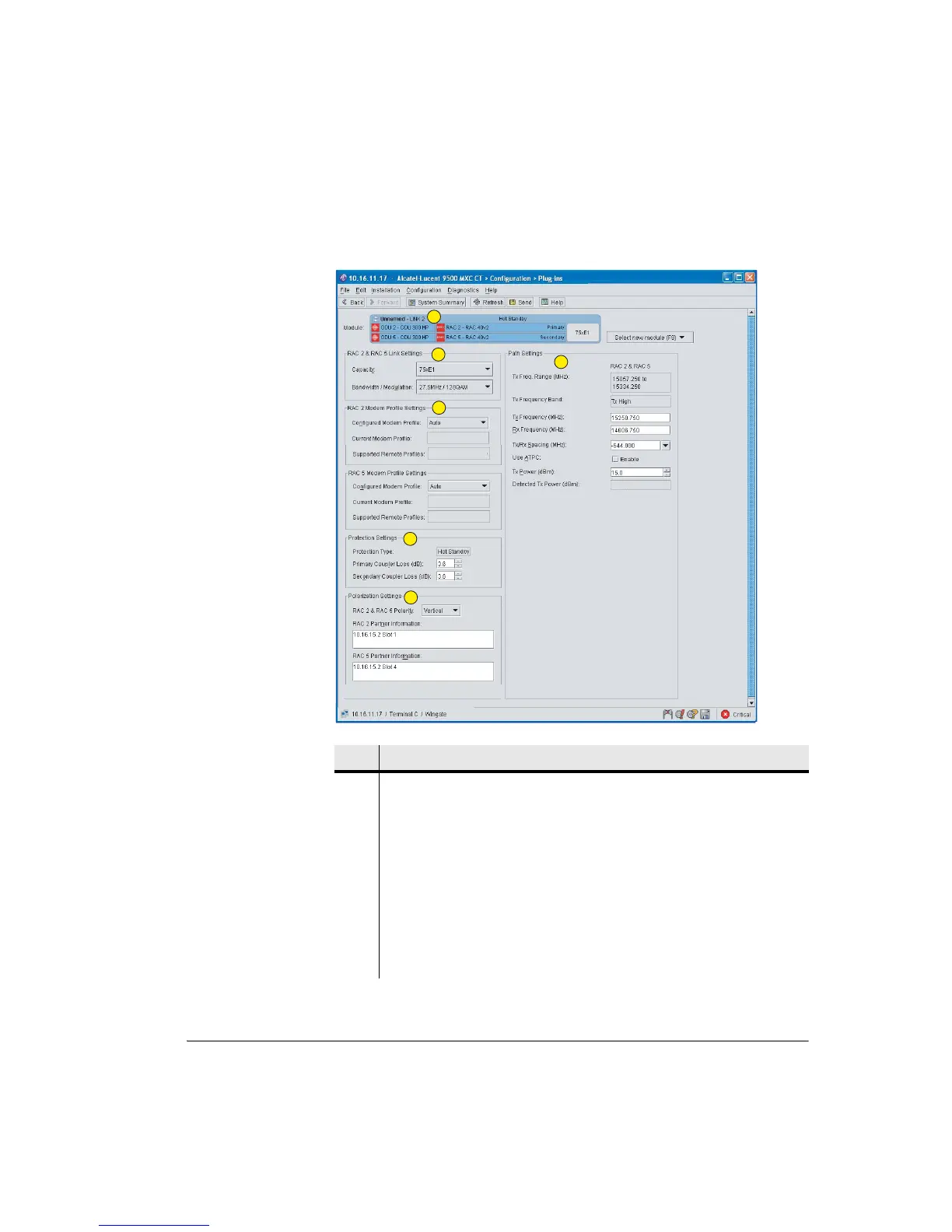

Figure 7-6. Example Plug-ins Screen for a Co-Channel Hot-standby Link
Item Description
1 Module shows a hot-standby protected link using RAC 40s in slots 2 & 5, with
RAC 2 the primary RAC and RAC 5 the secondary.
2, 3 The link/path settings are commoned (hot-standby) so only one Link Settings
panel and one Path Settings panel are shown.
For co-channel operation ATPC must not be selected.
4 Modem profile settings are separately confirmed for both RAC 40s.
5 The Protection Settings panel confirms protection type (hot-standby) and a
coupler-loss entry is prompted.
For co-channel operation equal-loss couplers must be used.
Standard
Standard
Standard
Standard
15.1
1
2
3
4
5
6
