Chapter 7. Node and Terminal Plug-ins
Vol. IV-7-16 Alcatel-Lucent

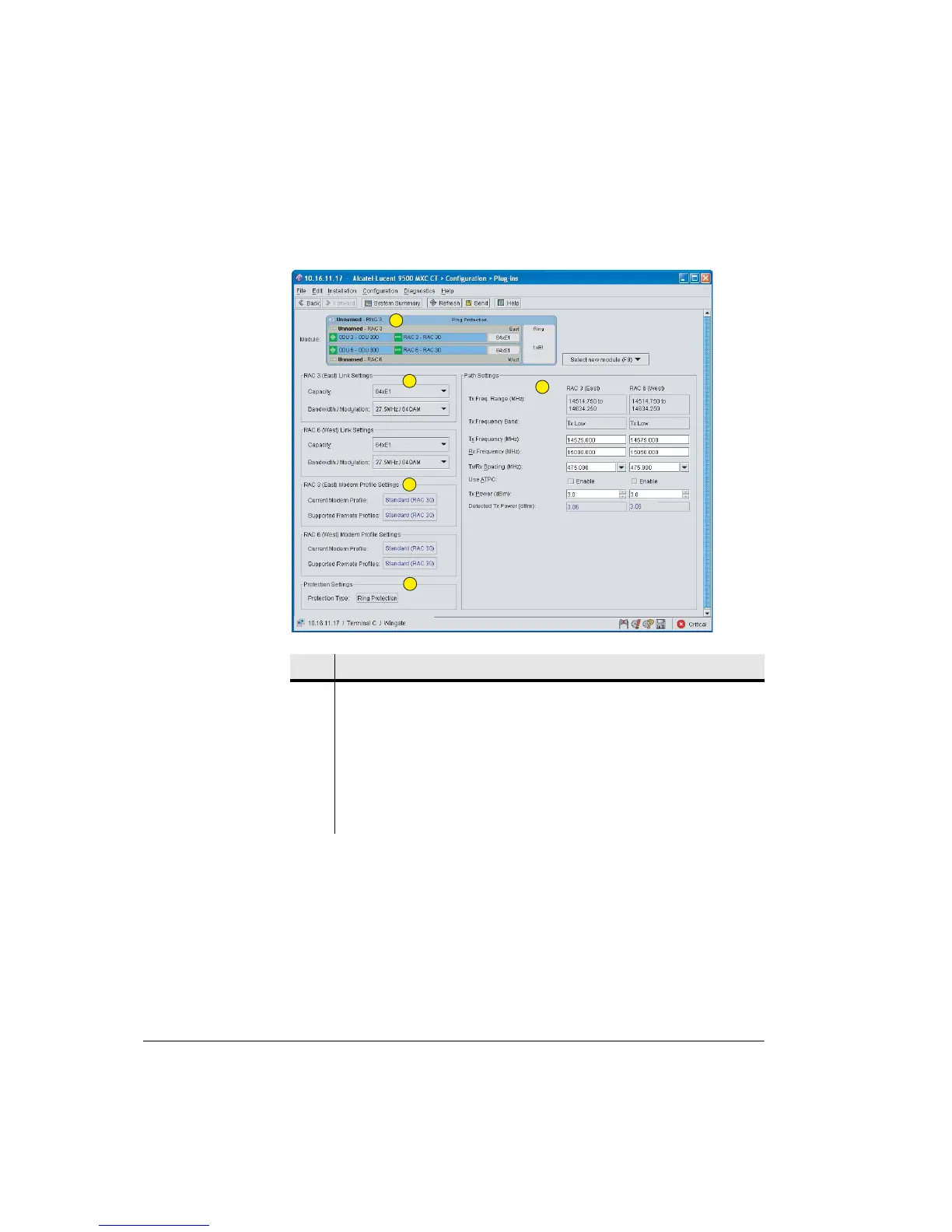

Figure 7-5. Example Plug-ins Screen for a Ring Protected Link
Item Description
1 Module shows ring-protected STM1 links with RACs in slots 1 & 4.
2 East and West links are independently set for capacity and bandwidth/
modulation.
3 Path settings are independently set for the East and West links.
4 Modem profile settings are confirmed for both RACs.
5 The Protection Settings Panel simply confirms that ring protection has been set.
1
2
3
4
5
