Balanced aggregation weights are default applied, but where one of the
aggregated links is of different capacity, such as a 300 Mbps link aggregated
with a 150 Mbps link, the weighting on the 300 Mbps link should be set to
11, and to 5 on the 150 Mbps link.
The maximum Ethernet capacity supported on one INU/INUe is 300 Mbps
(311.04 Mbps). Using DAC GE link aggregation, two co-located INUs are
used to provide a 600 Mbps user interface (600 Mbps virtual link); three are
used to provide a 900 Mbps interface.
Figure 7-19 illustrates C1 and C2 aggregation. The default weighting
applied is 8/8. A typical application for this configuration is RAC 40 CCDP
XPIC operation of two 150 Mbps links on one 28 MHz or 30 MHz radio
channel.

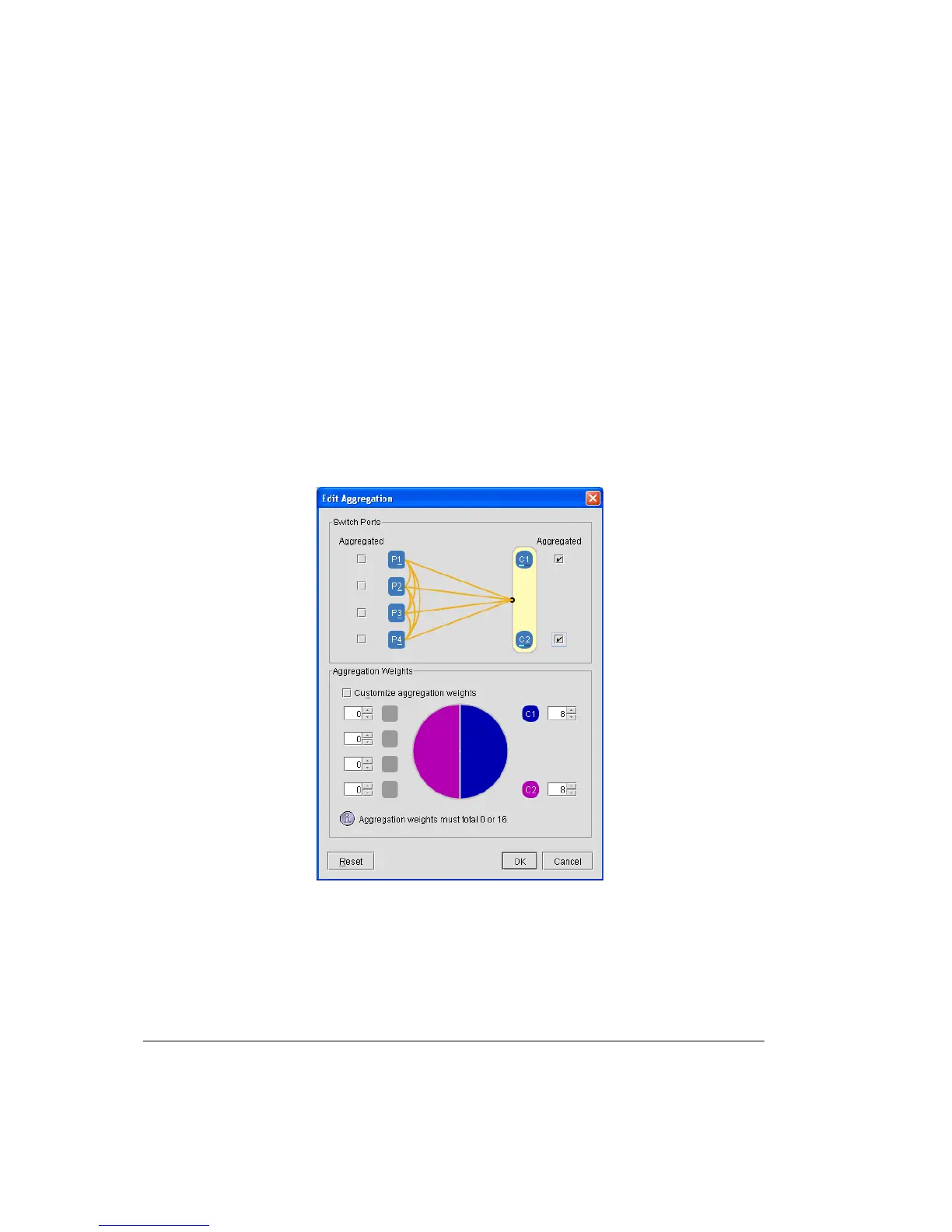

Figure 7-19. Transparent Mode with C1 and C2 Aggregation
TFigure 7-20 illustrates C1 and P1 aggregation. The default weighting
applied is 8/8. A typical application for this configuration is same-path
operation of two 300 Mbps links. Note that on the partner link, link
aggregation is not configured, but Link Status Propagation should be
enabled.
More information: See Link Aggregation on page 7-76, and Link Status
Propagation Operational Characteristics on page 7-81.
