9500 MXC User Manual
3DB 23063 ADAA - Rev 004 July 2007 Vol. IV-7-63

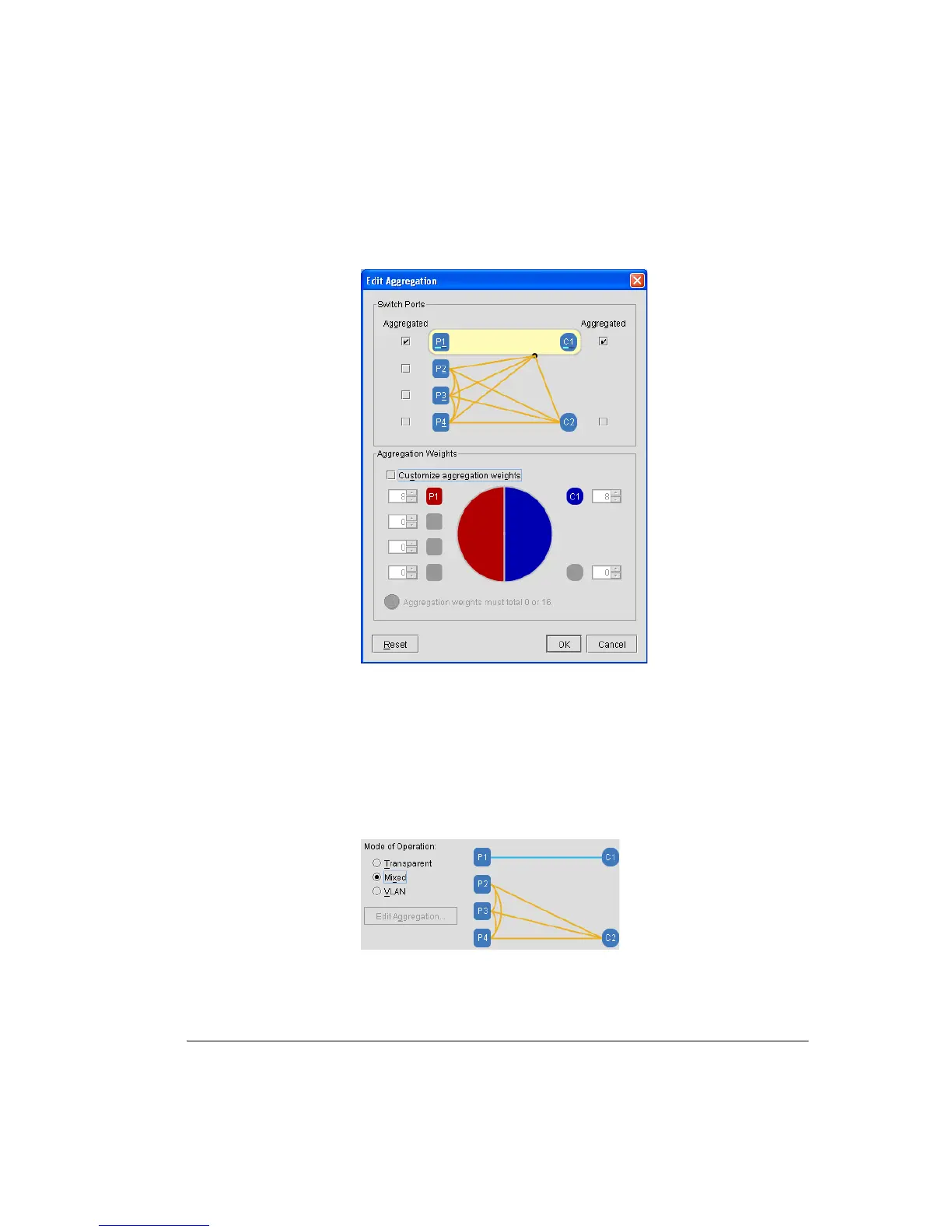

Figure 7-20. Transparent Mode with C1, C2 and P1 Aggregation
•
Mixed Mode supports a two-channel LAN/broadcast solution where P1-C1
provides dedicated transport for port 1 traffic. A second transparent,
broadcast mode connection is provided with ports 2, 3 and 4 and channel C2
interconnected. The two channels can be assigned on the same link or used
to support separate links. Mixed Mode is particularly applicable to east and
west links in an Ethernet ring/mesh network where path protection is
provided by an external RSTP switch.
Figure 7-21. Mixed Mode
