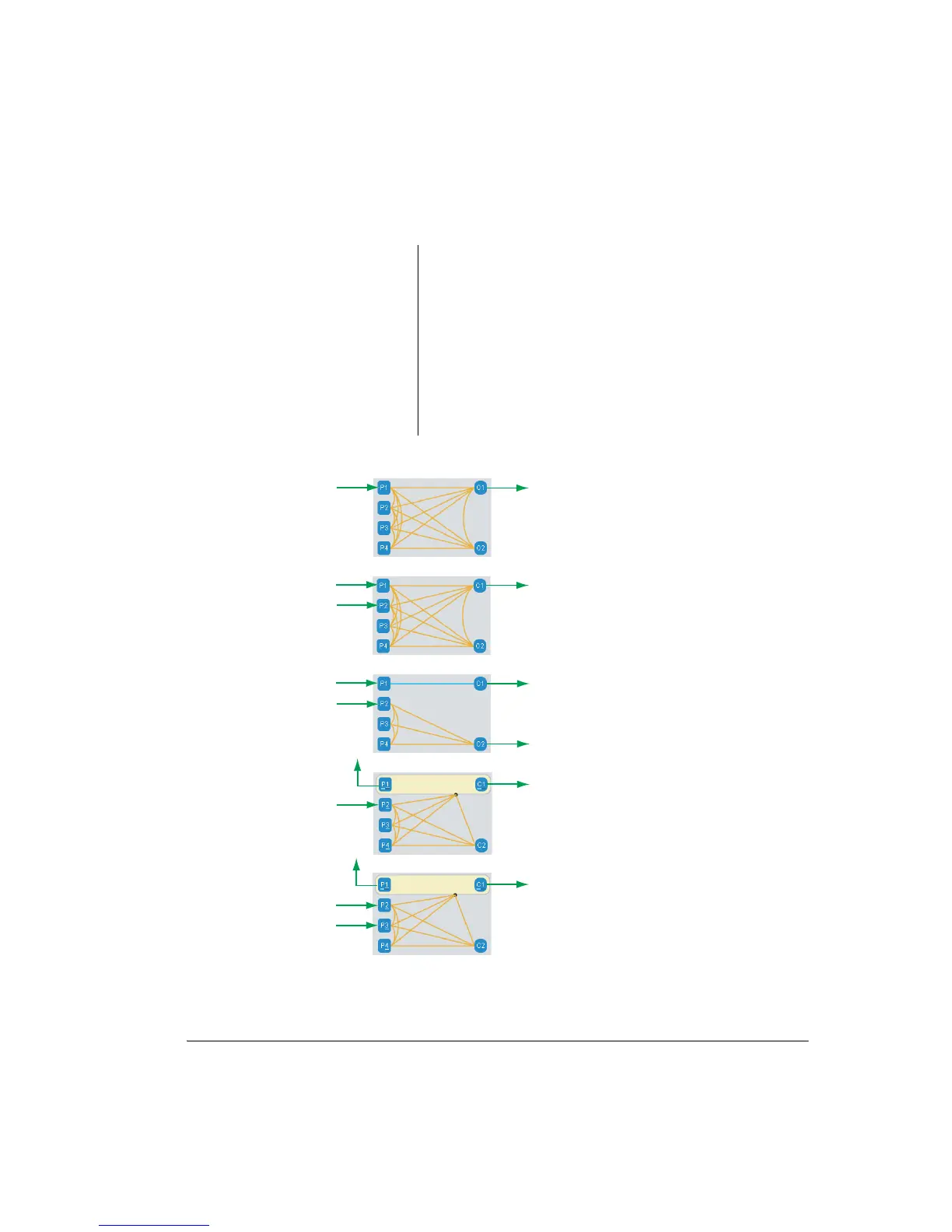

Figure 7-34. Example Configurations
Example B: P1, P2 & C1 are not uniquely related, so link status propagation is not
applicable.
Example C: P1 & C1 are uniquely related. P2 & C2 are uniquely related. Link status
propagation is applicable and operates simultaneously and
independently.
Example D: Aggregated P1 & C1 channels and P2 are uniquely related, so link status
propagation can be applied.
Example E: Aggregated P1 & C1 channels and P2 & P3 are not uniquely related.
Link status propagation is not applicable.
Example A
Example B
Example C
Example D
Example E
