9500 MXC User Manual
3DB 23063 ADAA - Rev 004 July 2007 Vol. II-1-9

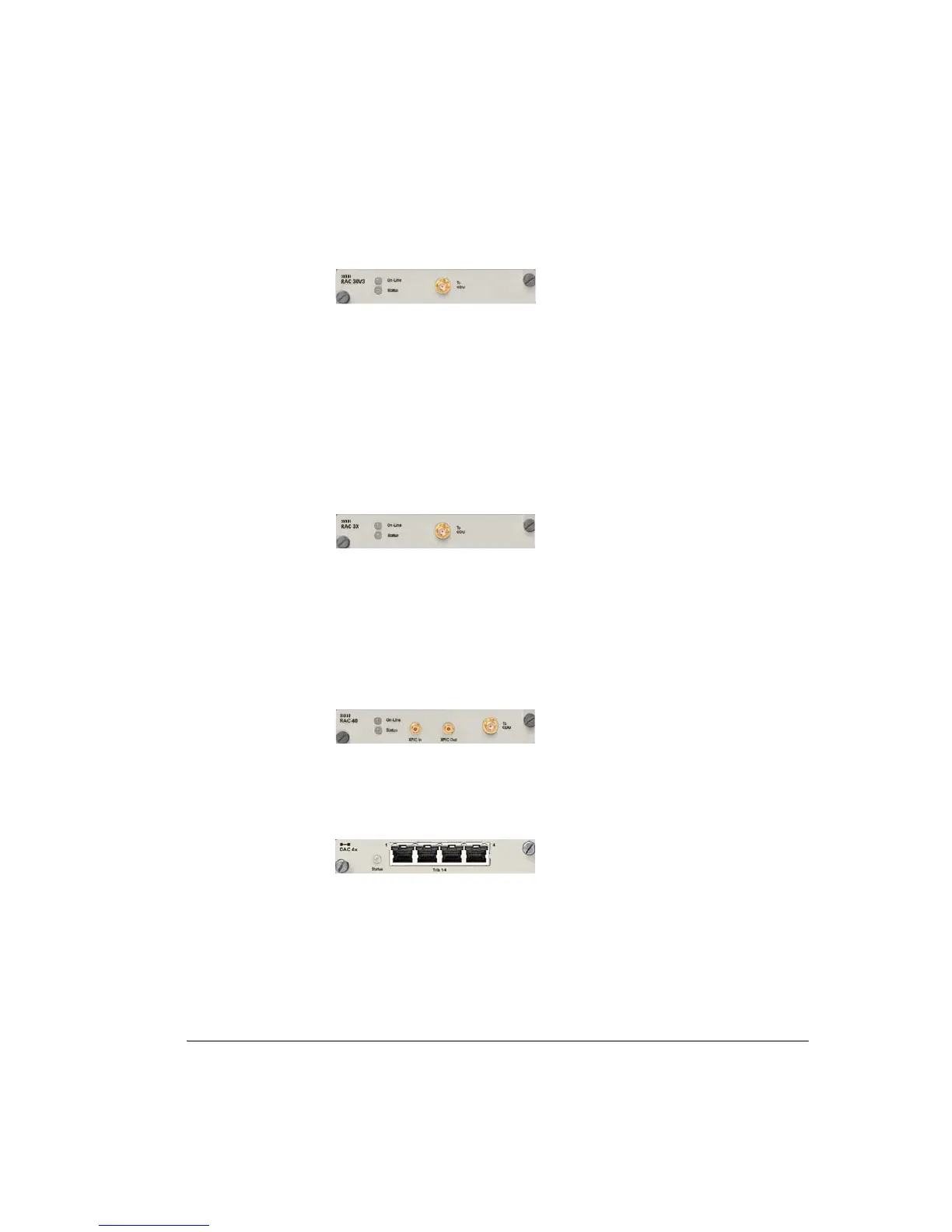

Figure 1-10. RAC 30V3
RAC 3X
RAC 3X interfaces to an ODU 300 for channel bandwidths of 40 to 56 MHz for
capacity options of:
• 64/75/93/100xE1
• 32/70/84/100xDS1
•4xDS3
• 1/2xSTM1/OC3
Figure 1-11. RAC 3X
RAC 40
RAC 40 interfaces to an ODU 300hp or ep to support co-channel XPIC operation
for:
• Two STM1, 75xE1 or 64xE1 links on one 28 MHz channel.
• Two OC3, 100xDS1, 84xDS1 or 70xDS1 links on one 30 MHz channel.
Figure 1-12. RAC 40
DAC 4X
DAC 4x supports 4xE1 or DS1 tributaries on RJ-45 connectors.
Figure 1-13. DAC 4X
