Chapter 1. 9500 MXC System Overview
Vol. II-1-10 Alcatel-Lucent

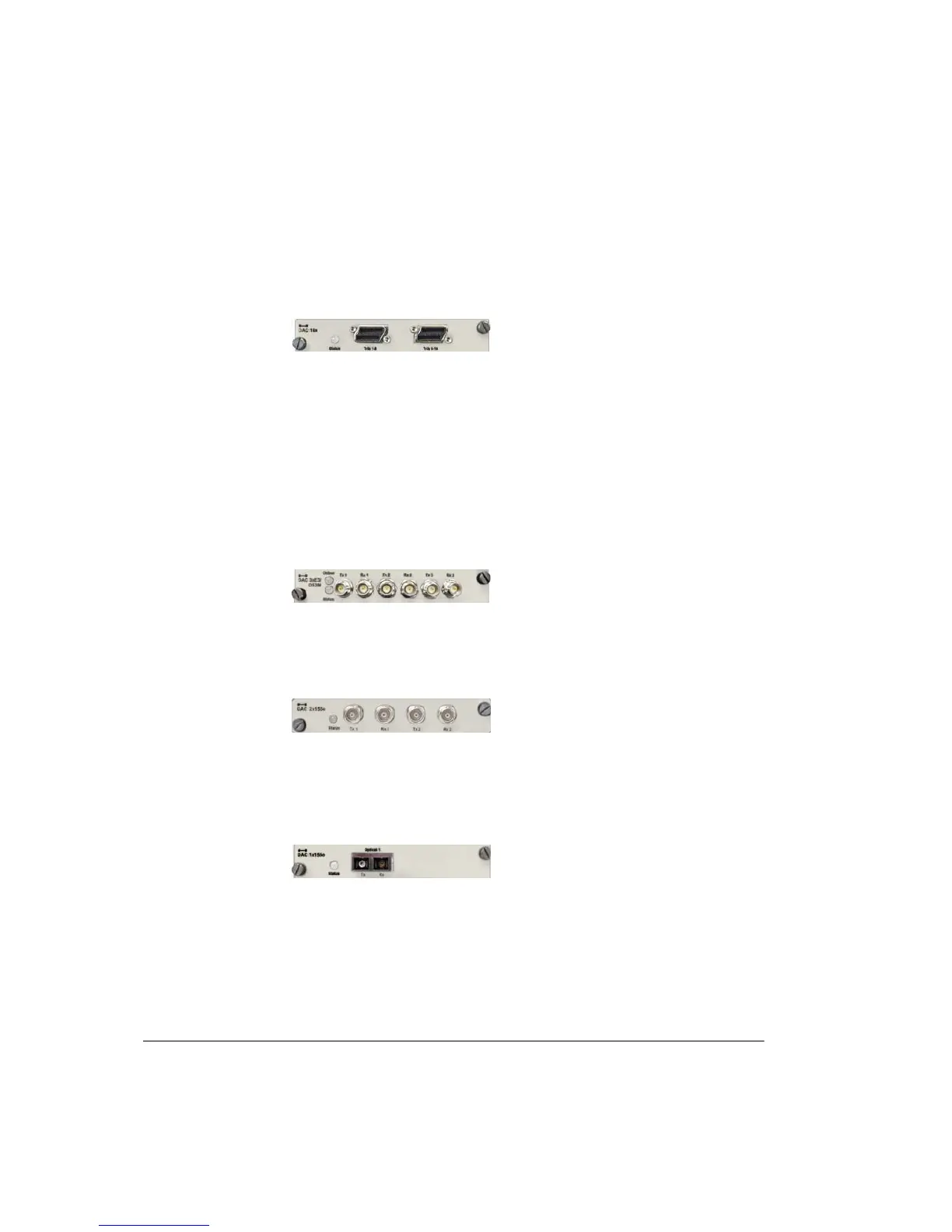

DAC 16X
DAC 16x supports 16xE1 or DS1 tributaries on Mini RJ-21 connectors.
Figure 1-14. DAC 16x
DAC 3xE3/DS3M
DAC 3xE3/DS3M supports three operational modes:
• E3/DS3 tributary mode. Up to three E3 or DS3 tributaries on paired BNC
connectors.
• E13 multiplexer mode. One or two E3 interfaces are multiplexed to an NxE1
backplane.
• 34 Mbps transparent E3 mode for video (MPEG) transport. One or two
transparent E3 tributaries are each mapped to a 34xE1 backplane.
Figure 1-15. DAC 3xE3/DS3M
DAC 2x155e
DAC 2x155e supports two STM1 electrical tributaries on BNC connectors.
Figure 1-16. DAC 2x155e
DAC 1x155o
DAC 1x155o supports one STM1/OC3 single-mode optical tributary on SC
connectors.
Figure 1-17. DAC 1x155o
