DAC 2x155o supports two STM1/OC3 single-mode optical tributaries on SC
connectors.

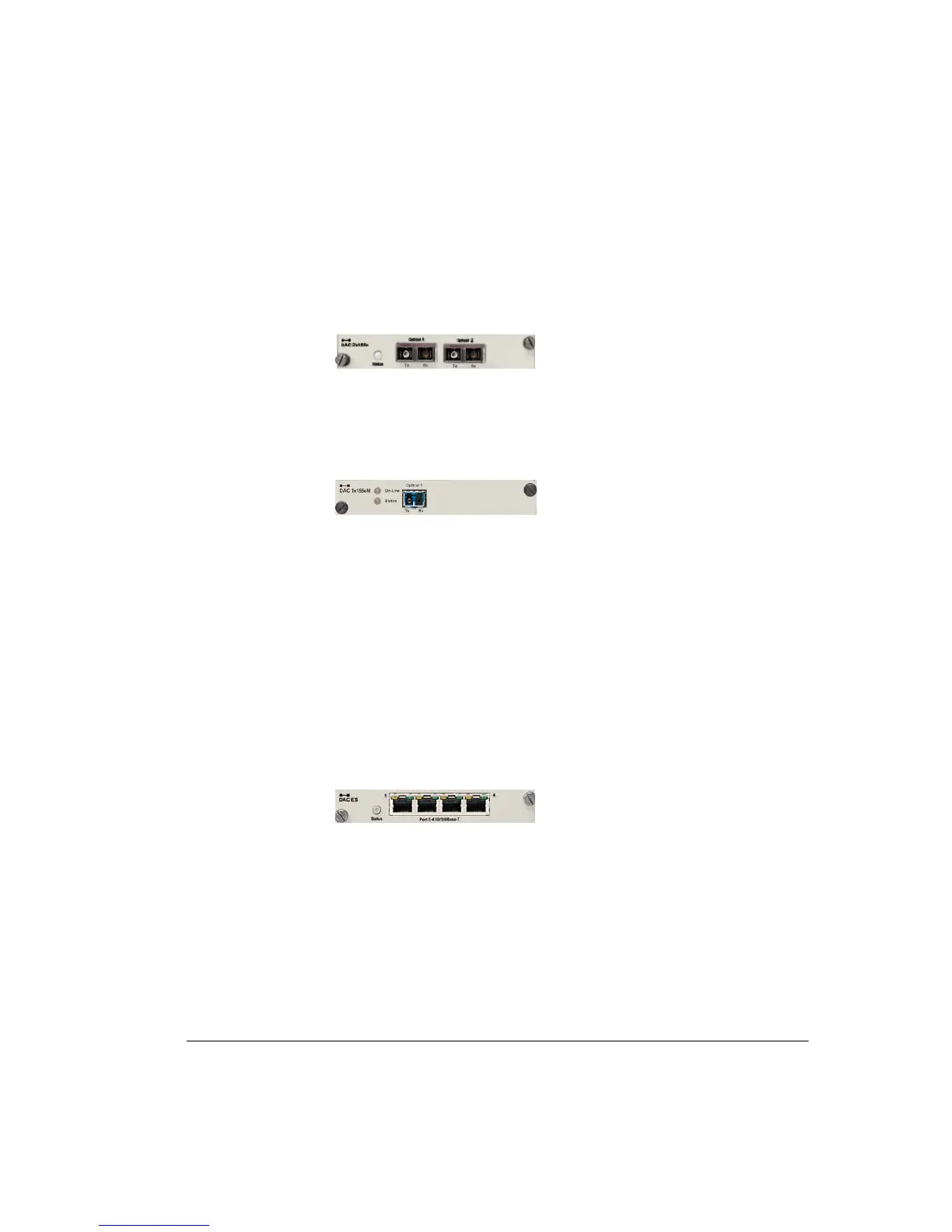

Figure 1-18. DAC 2x155o
DAC 155oM
DAC 155oM multiplexes an SDH/OC3 single-mode optical tributary to an NxE1
or NxDS1 backplane.
Figure 1-19. DAC 155oM
DAC ES
DAC ES supports four low-latency 10/100Base-T Ethernet ports over one or two
radio and/or fiber transport channels. Features include:
• Advanced QoS settings.
• Transparent, VLAN and mixed modes of operation.
• Throughputs to 100 Mbps per transport channel.
• Assignment to radio or fiber links.
• Assignment of total link capacity to Ethernet, or split between Ethernet and E1/
DS1 traffic.
• Compatibility with DAC GE.
Figure 1-20. DAC ES
DAC GE
DAC GE supports three low-latency 10/100/1000Base-T electrical ports and one
1000Base-LX optical port, over one or two transport channels. Features include:
• Advanced QoS settings.
• Transparent, VLAN and mixed modes of operation.
• Enhanced, fast-switched RSTP.
• Layer 2 and layer 1 link aggregation.
