9500 MXC User Manual
3DB 23063 ADAA - Rev 004 July 2007 Vol. IV-8-13

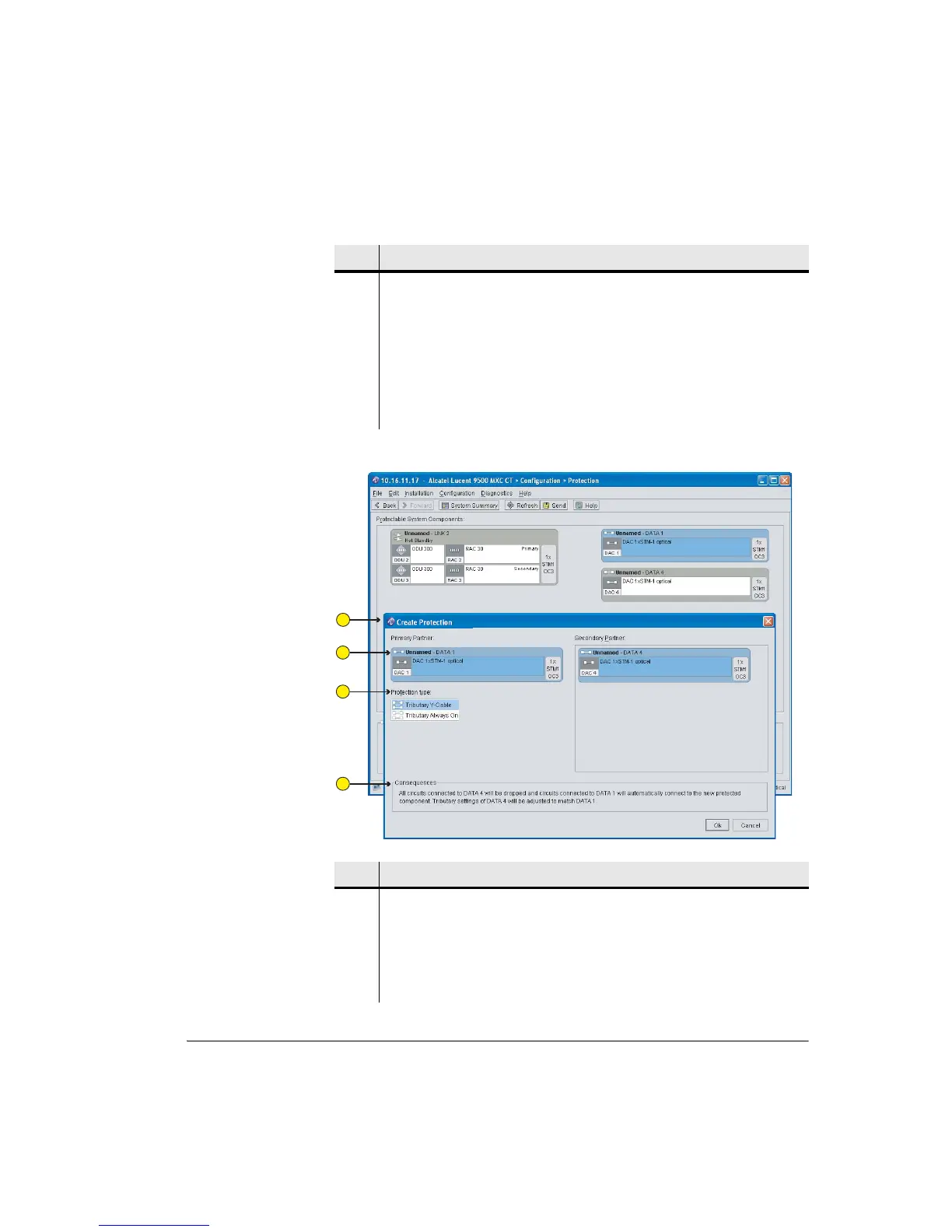

Figure 8-5. Protection Window for DATA/DAC protection
3 Shows balance of circuits available (16xE1) for use as additional ring-protected
circuits, or as point-to-point circuits.
4 Ring wrap and unwrap settings. If Delay Ring Unwrap is selected, both wrap
and unwrap criteria default to standard.
5 Select standard or 10
-6
BER wrap and unwrap criteria.
6 Select an unwrap timer option. An unwrap will occur upon error-free
completion of the selected period.
Item Description
1 The Protect tab has been clicked to open the Create Protection window for a
DAC 1xSTM1 (DATA 1) selection.
2 Select partner and protection type. For this example the only available/valid
protection partner for DATA 1 is DATA 4.
3 Select TA or TT trib protection type.
Item Description
1
2
3
4
