Vol. VI-C-2 Alcatel-Lucent
DAC 16x Cable and Connector Data
Refer to:
• DAC 16x Mini RJ-21 to BNC Cable Assembly on page C-2
• DAC 16x Mini RJ-21 to RJ-45 Straight and Crossover Cable Assemblies on
page C-4
• DAC 16x Mini RJ-21 to Wire Wrap Cable Assembly on page C-8
• DAC 16x Mini RJ-21 Connector Pin Assignments on page C-10
DAC 16x Mini RJ-21 to BNC Cable Assembly
This assembly is available with a cable length of 2 m:
• Mini RJ-21 to 16xBNC Connectors, 2m, Part No: 3CC52026AAAA
Figure C-1 shows the assembly; each supports up to 8 tribs (16xBNC
connectors). Two cable assemblies are required per DAC 16x if more than 8xE1/
DS1tribs are to be connected.

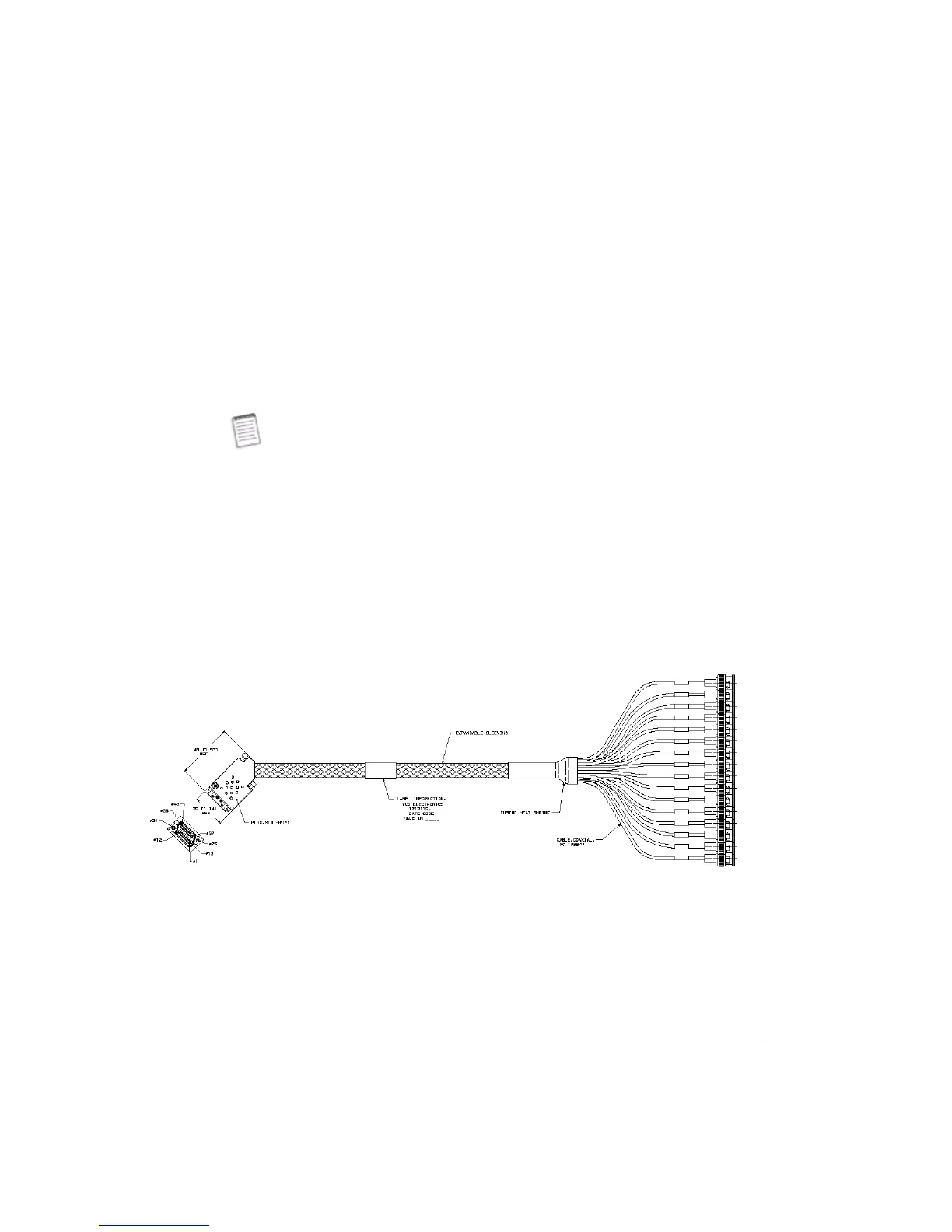

Figure C-1. DAC 16x Mini RJ-21 to BNC Unbalanced Trib Cable Assembly for 8xE1/DS1 Tribs
Ensure correct orientation of the Mini RJ-21 connector before pushing it home.
This can be checked by the scalloped key to one side of the connector.
Additionally, a trib cable supplied by Alcatel-Lucent has the cable exiting to the
right side when viewed from the front
