9500 MXC User Manual
3DB 23063 ADAA - Rev 004 July 2007 Vol. VI-C-5
Figure C-4 shows the assembly. Each assembly supports up to eight tribs. Two
cable assemblies are required per DAC 16x if more than 8xE1/DS1tribs are to be
connected.

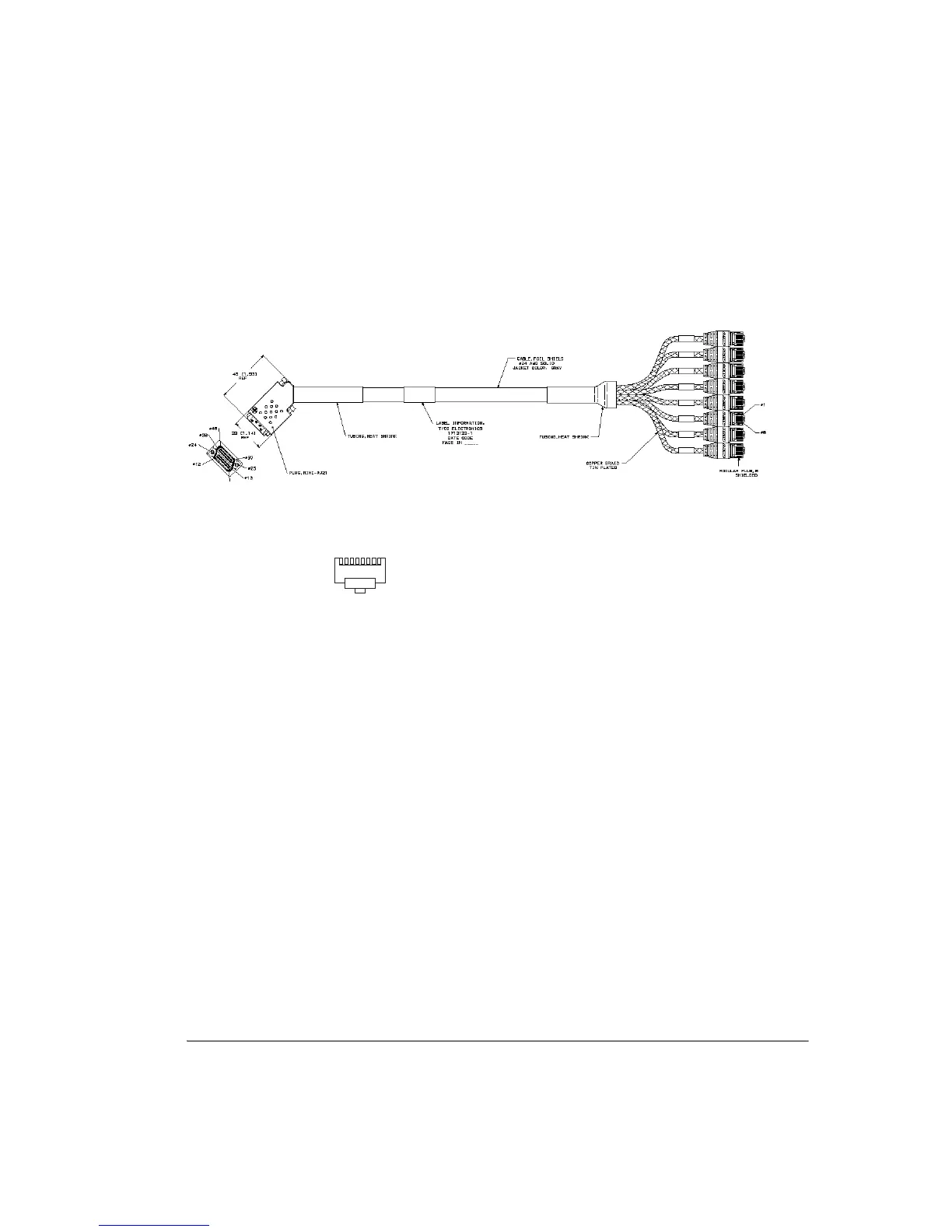

Figure C-4. DAC 16x Mini RJ-21 to RJ-45 Balanced Trib Cable Assembly for 8xE1/DS1 Tribs
Figure C-5 shows the pin numbering for the RJ-45 cable connector.
Figure C-5. RJ-45 Cable Connector (Modular Plug) Pin Numbering
8
1
RJ-45 cable connector
(cable exits at rear)
