Vol. VI-C-4 Alcatel-Lucent

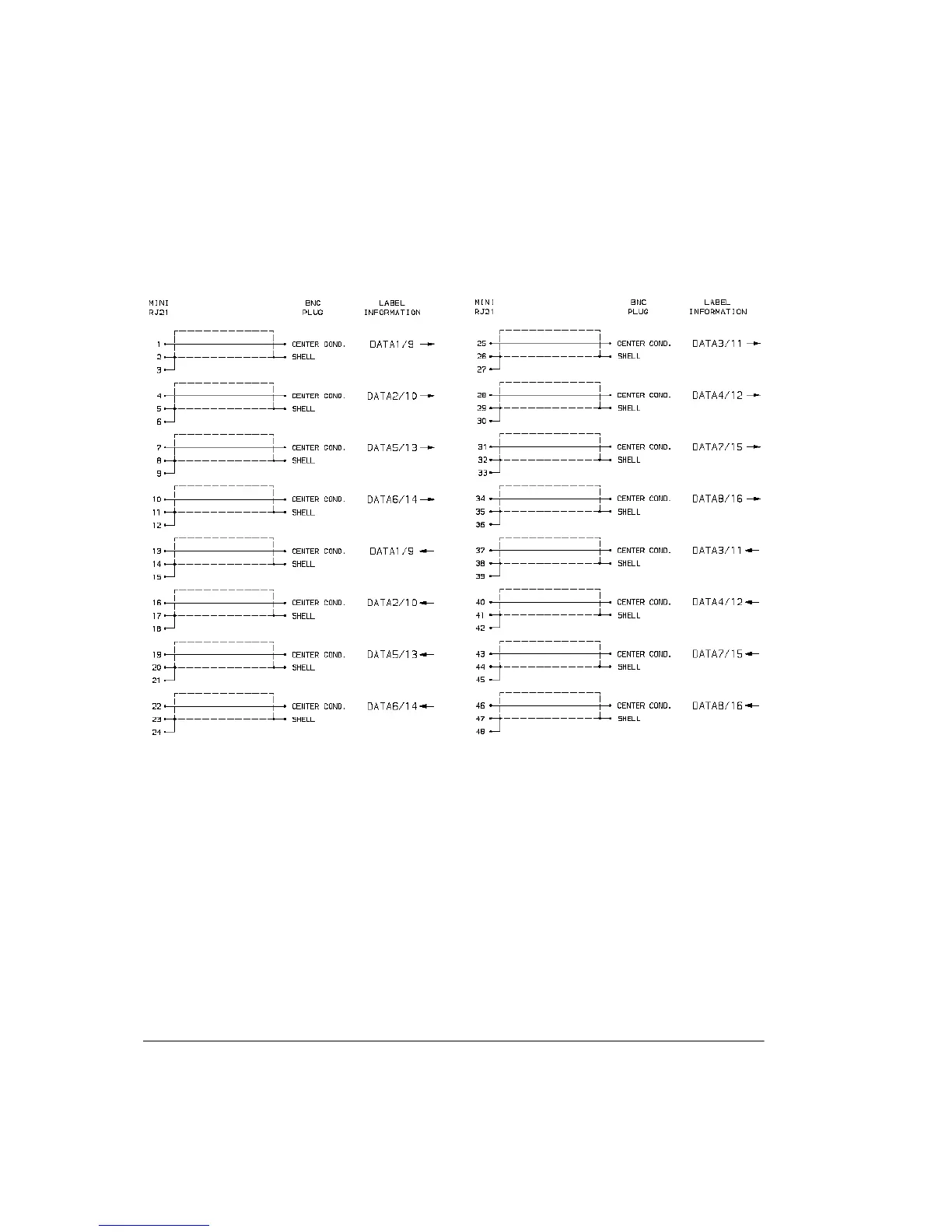

Figure C-3 shows the cable pin assignment and label data.
Figure C-3. DAC 16x Mini RJ-21 to BNC Cable Pin Assignments And Labelling
DAC 16x Mini RJ-21 to RJ-45 Straight and Crossover Cable
Assemblies
These assemblies extend to balanced 120 ohm connections.
Straight cable assemblies are used when connecting to RJ-45 patch panels that
have a built-in crossover function:
• Mini RJ-21 to 8xRJ-45 Connectors, Straight, 2m, Part No: 3CC52032AAAA
• Mini RJ-21 to 8xRJ-45 Connectors, Straight, 5m, Part No: 3CC52034AAAA
Crossover cable assemblies are used to interconnect one DAC or IDU RJ-45 port
to another.
• Mini RJ-21 to 8xRJ-45 Connectors, Crossover, 1m, Part No: 3CC52037AAAA
• Mini RJ-21 to 8xRJ-45 Connectors, Crossover, 5m, Part No: 3CC52041AAAA
